TBParts - Vintage Honda 108cc Stroker big bore & VM26 Carb kit
69-81 Z50

Vital Information
Price$599.99
Part No TBW9094-69-81Z50
Location220C
Stock Level 1 Left

108cc Stroker Crank with Race Head Kit w/ VM26 Mikuni carburetor

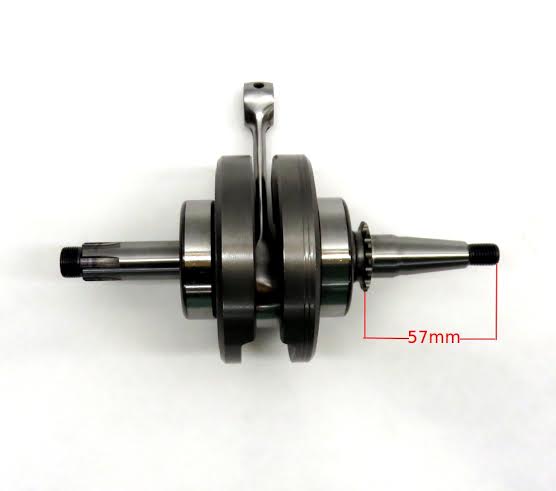

Crank measures 57mm from gear to end.

Key Features:

  • High quality stroker crank
  • Race head for better airflow resulting in increased power throughout the powerband.
  • Mikuni VM 26mm carb gives reliable performance and ease of tuning

Recommended:

  • High volume oil pump - TBW0225-6V
  • High speed 2mm drill bit - TRC-5526
  • 2 Size clutch tool - WHS-2274
  • TB oil cooler kit w/ intake mount - TBW1370
  • Sta-bil fuel stabilizer - W-57-1109
  • Pre-filter - OW-20-2159-01

Application:

  • Z50 - 69-81

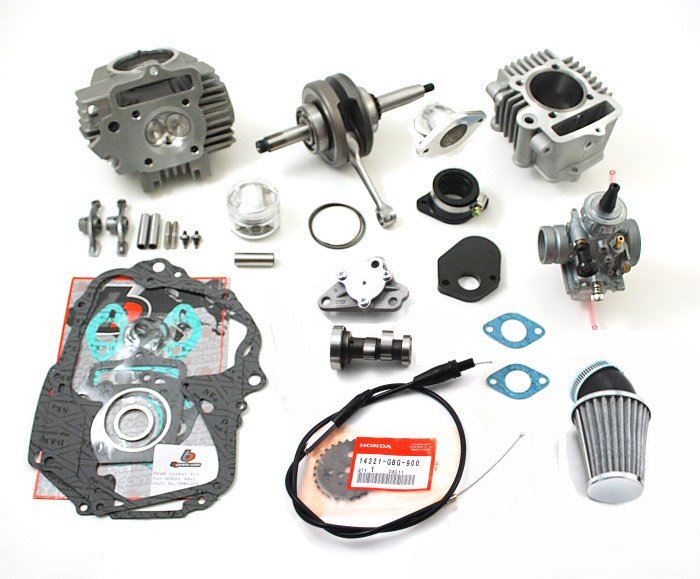

Kit Includes:

  • TBW0622 - Crank
  • TBW0365 - Piston
  • TBW0225 - Oil Pump
  • TBW0287 - Gasket
  • TBW0334 - Gasket
  • TBW0206 - Gasket
  • TBW0316 - Intake Kit
  • TBW0301 - Throttle Cable
  • TBW0399 - Carb
  • TBW0521 - Air Filter
  • TBW0385 - Race Head and Valves Assembly
  • TBW0251 - Right Side Cover
  • TBW0189 - Cam
  • TBW0156 - Cylinder
  • TBW0861 - Cam Sprocket
