TBParts - Mikuni VM26mm Carb Kit (21mm Race head)
Z50 CRF50 XR50 & Pit bikes

Mikuni VM26mm Performance Carb Kit
This is, perhaps, the best carb kit to run on Hondas with bore kits over 100cc's and aftermarket performance/race heads. The Mikuni VM26 has a proven track record of high performance, quality, and easy tuning.

This kit is a great kit for Chinese XR50 type bikes with 114cc to 146cc engines.

Much better performance than the typical small 18mm to 22mm carbs supplied with them and these are very easy to tune.

Exceeds OEM Specifications.

Key Features:

• 26mm MIKUNI ROUND SLIDE Carb 606 Style

• Intake Kit for our Race Head or a ported head.

• Jet kit with 3 different sizes (Stock main is 190 and pilot is a 22.5)
• Intake Kit for the Race head (TBW0316)

• Jet kit with 3 different sizes (Stock size is a #195 - Extra jets sizes of 155, 165 & 175)

Recommended:

• Sta-bil fuel stabilizer - W-57-1129

• Uni foam filter spray - W-82-1000
• 12 Way rotating spacer - TBW0900
• Main jet kit - TBW1353
• Pilot jet kit - TBW1355
• Pre-filter - WHS-1664

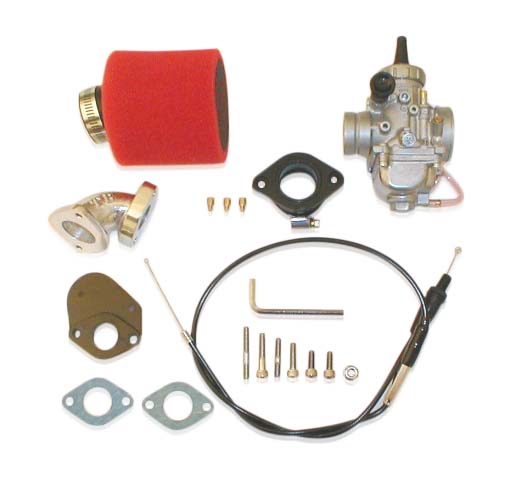

Kit Includes:

• TBW0301 - Throttle Cable
• TBW0316 - 28/26mm Intake Kit
• TBW0399 - VM26 Carb
• TBW0413 - Air Filter

Application: (Only with 108cc or larger big bore kit)

• XR50
• CRF50
• Z50
• Pit bikes w/Honda style heads that are 110cc - 114cc

Available Options:

12 Way Adapter:
NoYes (+$14.95)
