TBParts - Stroker kit 1 108cc
for Z50 CRF50 XR50 CRF70

Vital Information
Part No TBW0966
Stock Level 3 Left

TB 108 Stroker kit 1
This is an affordable kit that will convert your TB 88cc Race Head kit into a powerful open class 108cc engine !

Stroker Crank was made specifically for the newer engines and thus, you will not have any fitment issues like trimming the piston skirts in order to clear the crank or the piston not lining up with the cylinder deck.

Key Features:

  • 51mm Crankshaft with NTN bearings
  • Crankcase and clutch cover gaskets
  • Head gasket kit


  • High volume oil pump
  • Oil Cooler
  • Billet clutch hub
  • CR8HSA spark plug (not required, but recommended)

Exceeds OEM Standard equipment


  • Honda Z50 - 1988-1999
  • Honda XR50 - All Years
  • Honda CRF50 - All Years
  • CRF70 - All years

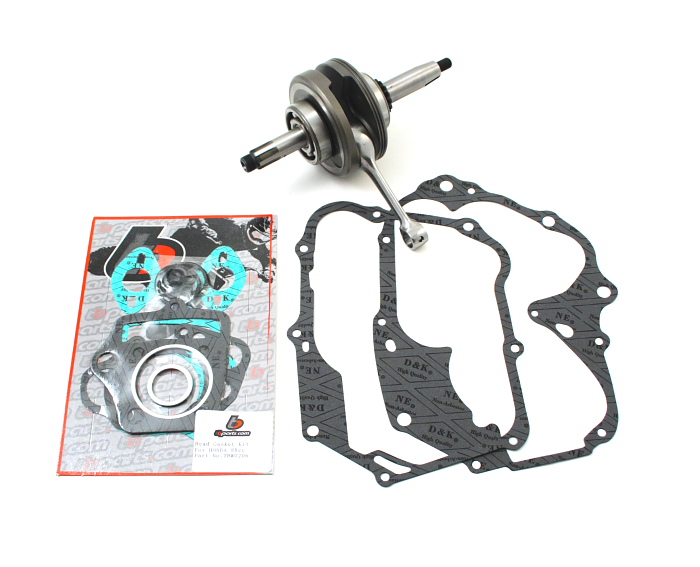

 Kit Includes:

  • TBW0319 - Stroker Carnk
  • TBW0287 - Gasket
  • TBW0334 - Gasket
  • TBW0206 - Gasket

This kit requires engine disassembly and therefore, we highly recommend a professional technician install this kit. If you plan on doing it yourself, you will need to have a Clymer or Honda shop manual. Instructions do not come with the kits but the installation of the crankshaft is just like installing a stock Honda crankshaft. You should also have the following parts:

Recommend purchasing the Upgrade Disk Kit that is available in this section of the Catalog for TB manual clutch. Additionally, we do not recommend the use of an inner rotor kit with this clutch (on a 108cc or larger engine) as it can lead to premature clutch failure due to extra fatigue placed on the clutch housing. Also, do not tighten the clutch nut with a hammer and screw driver - it must be torqued on!
