TBparts - DNM Rear Shock for CRF110 and KLX110L (300lbs)

Vital Information
Price$184.99
Part No TBW1708
Location131C
Stock Level In Stock

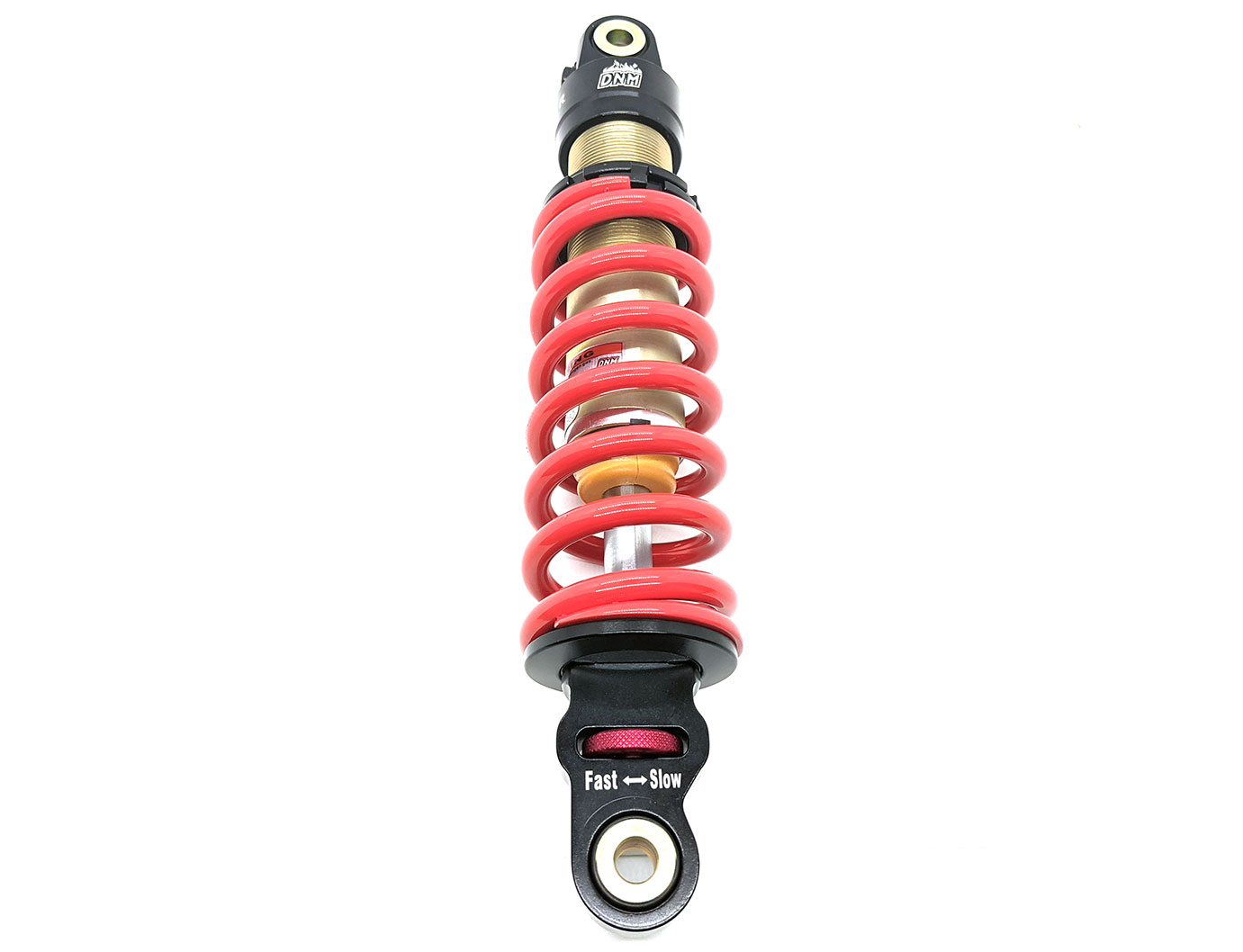

DNM pit bike shock with adjustable rebound.

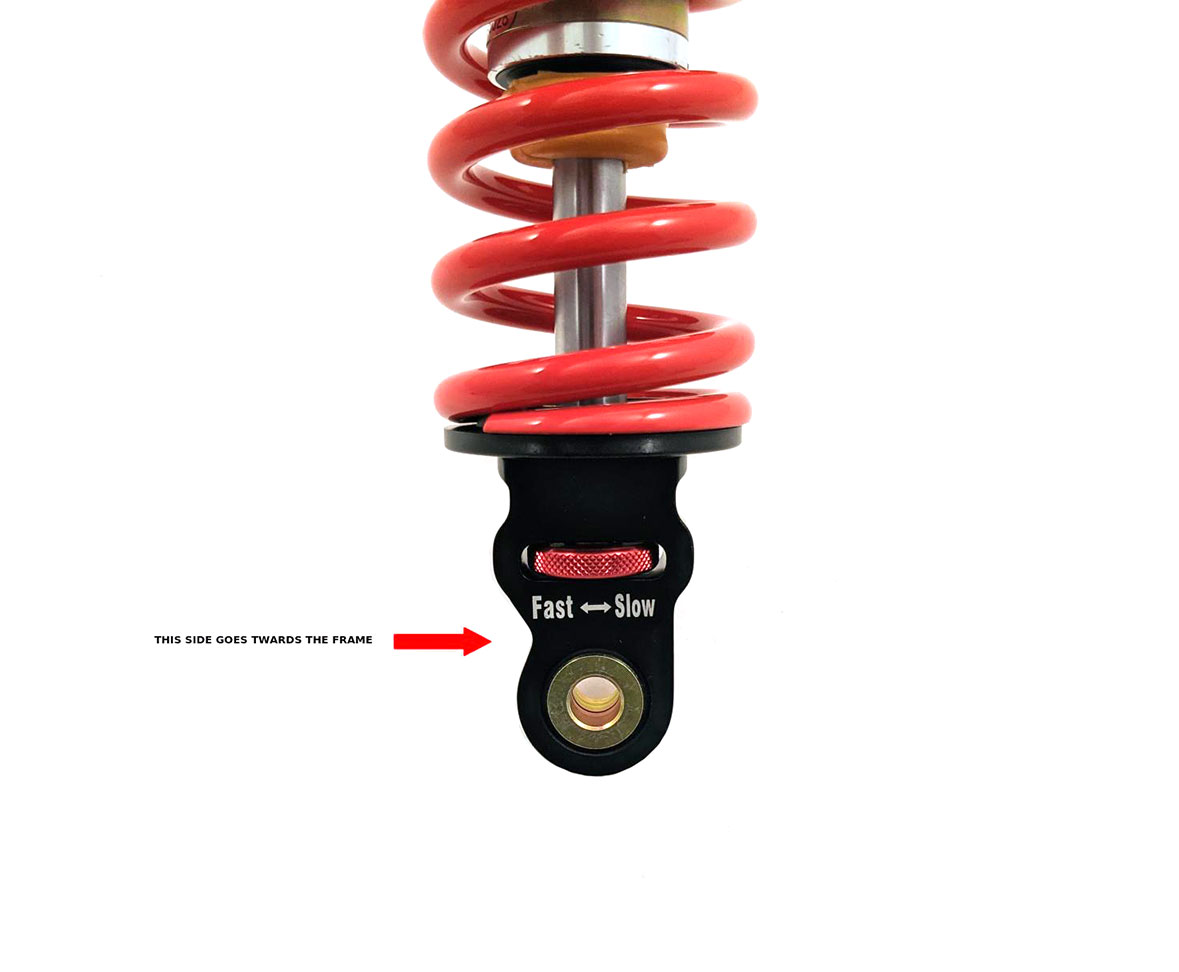

Note: As of 7/1/2021, this shock is updated to allow for proper clearance on new EFI CRF110 bikes. Shock mounts at the top with the notched section (as shown in last picture) facing in towards the frame.


Spring recommendation:

From customer feedback and our own testing, most adult riders will need a 250lb spring. Only very aggressive riders or larger riders will need a 350lb spring.


Specifications:

  • 290mm or 11.4in eye to eye
  • 300lb spring rate

Application:

  • CRF110 - 2013-Present
  • KLX110L - 2010-Present
  • Electro & Co. - ETM RTR Lite (Stock is 300lb.)
  • Electro & Co. - ETM RTR (Stock is 380lb.)


Note: Stock KLX110L shock length - 11 5/8in or 295mm eye to eye

Note: This shock is slightly shorter than the stock KLX110L shock.
It is intended to slightly lower the rear of the bike and level out the ride.
