TBParts - Fork Assembly Set KLX110L

Vital Information
Part No TBW1588
Stock Level Out of Stock!
Want an email when we get this back in?
Get on the List

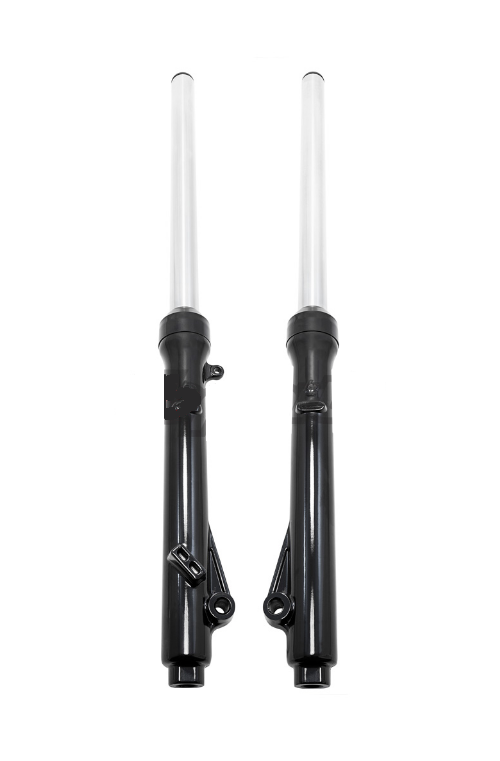

TB Fork Assembly Set – KLX110L
TBparts Fork Assembly Set for the KLX110L. Our replacement fork set is a bargain considering OEM replacements are over $600 for a set! They also feature a few key upgrades over the factory forks making them better suited for your MX mini! Starting out are the looks, ours come gloss black and have our TB logo cast into them. Next, adding to the performance is the heavier weighted springs inside that are better suited for adult riders. Going down the list next is the dampening rods. They have been ported to match the heavier springs giving you improved dampening and rebound to keep the front end from becoming a “pogo” stick. It is also lengthened giving you an extra +10mm of travel! Finally, we intergraded an OEM style bushing/guide inside the fork bottom for added strength that the original Kawasaki KLX110L forks do not have. Altogether you cannot beat the “out of the box” performance and value this complete fork set offers.

Key Features

  • HD springs better suited for adult riders
  • Improved dampening rod for better dampening and rebound
  • Extended Travel +10mm
  • Strengthened with extra bushings
  • Gloss black fork bottom with TB logo cast in
  • 30mm OD of upper tube - 724mm overall length
  • TBW1615 TB Fork Seal and Rebuild Kit is available for routine service


  • KLX110L Direct Replacement
  • KLX110 2002-present Longer than stock +55mm Extended Travel +40mm
  • DRZ110 2003-2006 Longer than stock +55mm Extended Travel +40mm

Installations notes

  • These come with fork oil, if desired you can drain and refill with 5.5oz of your choice of quality fork oil
  • Replacement fork seals coming soon
  • These are not a direct replacement for the Standard KLX110 (NON L)
