TBParts - DNM Rear Shock for CRF110 and KLX110L (350lbs)

Vital Information
Price	$169.99
Part No	TBW1206
Location	131B
Stock Level	8 Left

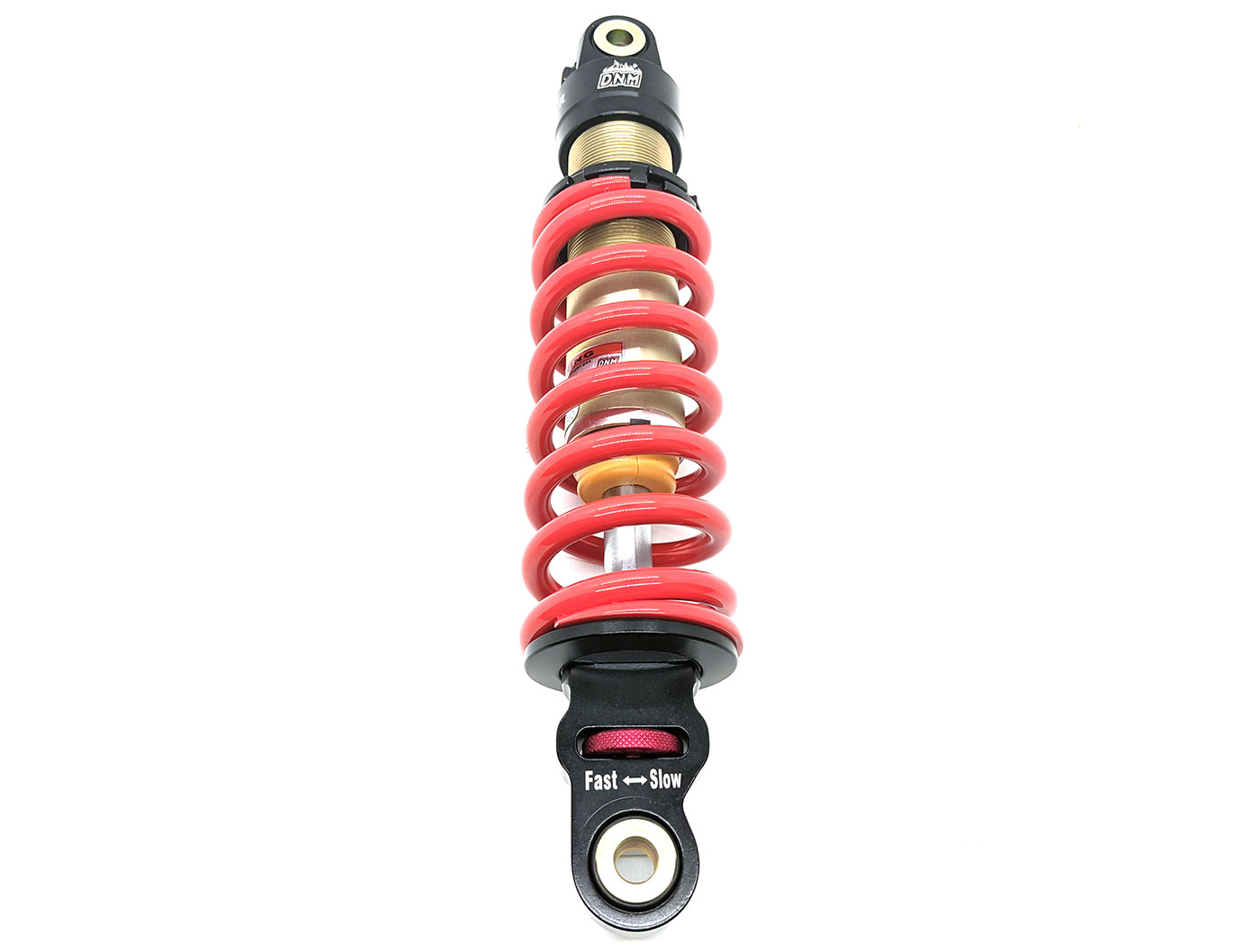

DNM pit bike shock with adjustable rebound.

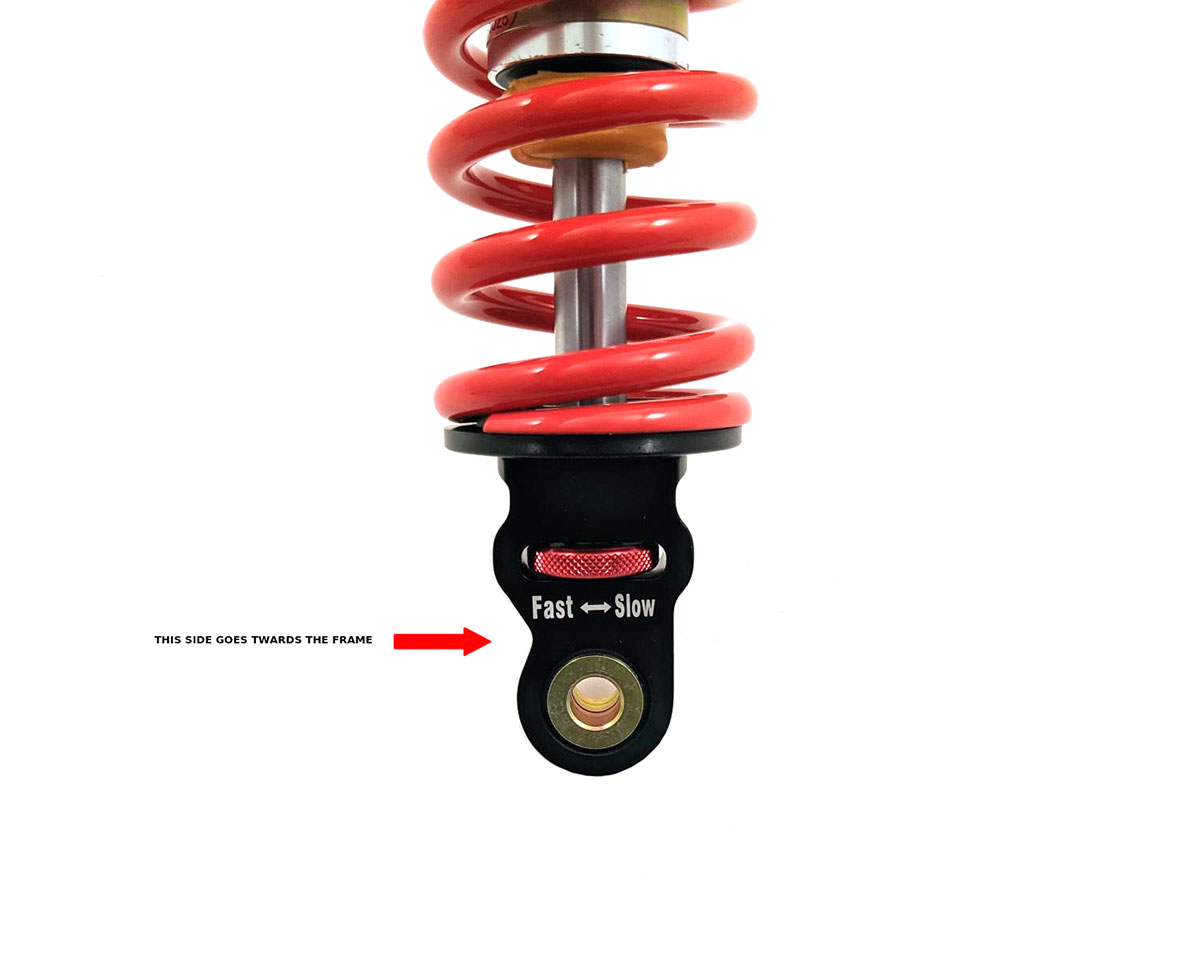

NOTE: As of 7/1/2021, this shock is updated to allow for proper clearance on new EFI CRF110 bikes. Shock mounts at the top with the notched section (as shown in last picture) facing in towards the frame.

Spring recommendation:

From customer feedback and our own testing, most adult riders will need a 250lb spring. Only very aggressive riders or larger riders will need a 350lb spring.

Specifications:

290mm or 11.4in eye to eye
350lb spring rate

Application:

CRF110 - 2013-Present
KLX110L - 2010-Present

Recommended:

Alternate available as part number WHS-9101. Almost identical shock minus spring color and CRF110 application fitment change.

Note: Stock KLX110L shock length - 11 5/8in or 295mm eye to eye

NOTE: This shock is slightly shorter than the stock KLX110L shock. It is intended to slightly lower the rear of the bike and level out the ride.

Write Review

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
