TBParts - Roller Rocker Race Head V2 108cc Big Bore Kit
Z50 CRF50 XR50 & Pit bikes

TB Roller Rocker Race Head V2 (52mm) Big bore & Stroker Crank kit 108cc. Highest Performance Race head on the market with full parts support in stock. We recommend premium fuel.


Key Features:

• Roller Rocker Arms exactly like the V2 head for the KLX110
• 28.5mm intake Valve
• 23.5mm Exhaust Valve
• 5mm Valve Stem
• 23mm Exhaust port
• Matching High Compression Piston
• Head kits include all hardware
• 52mm piston with rings, pin, & clips.
• 52mm Aluminum Cylinder
• High performance race camshaft (for the Race Head only)
• Head gasket kit
• 51mm Stroker crank



Recommended:

• 26mm Intake Port - Matches Intake Manifold Kit - TBW0433
• High volume oil pump - TBW0225-6V OR TBW0226-12V (1982-present)
• 2 Size clutch tool - WHS-2274
• TB 12 way rotating spacer - TBW1487
• Sta-bil fuel stabilizer - W-57-1129

• TBparts oil cooler for V2 heads - TBW9187



Application:

• Z50 CRF50 XR50 - 1988-Present

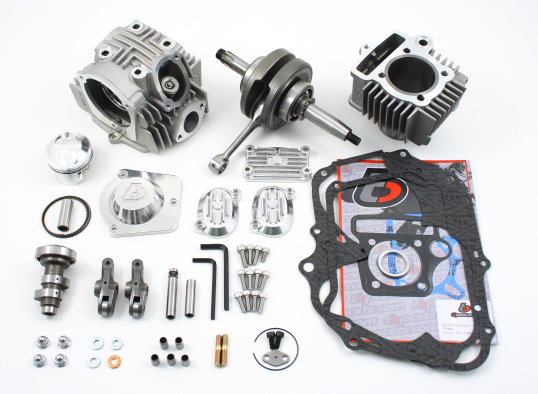

Kit Includes:

• TBW0750 - V2 Race head
• TBW0821 - V2 Head bolt kit
• TBW0752 - V2 Cam
• TBW0754 - V2 Head cover set
• TBW0753 - Piston 52mm
• TBW0859 - Gasket Set
• TBW0156 - Cylinder
• TBW0287 - Gasket
• TBW0334 - Gasket
• TBW0319 - Stroker crank



Installation Note:
It will save a lot of time and effort if the oil pump is installed while installing the bore kit (requires cylinder removal). We recommend purchasing a high volume oil pump kit (available in this section).

See the Performance Info section for additional information on our performance parts.
