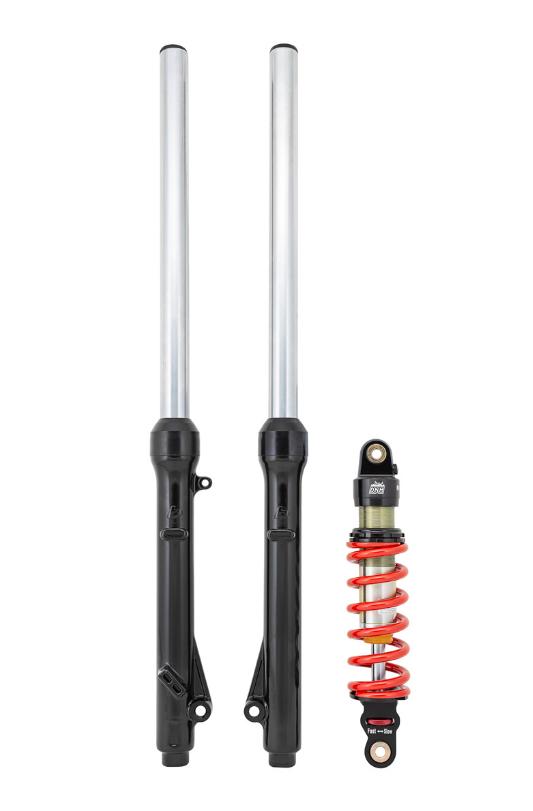

TBparts - Fork Assembly with HD Fork Springs and 250lb DNM Shock Kit for KLX110L

TBparts suspension package includes the following items paired together for an even better price:

TBparts Fork Assembly Set for the KLX110L. Our replacement fork set is a bargain considering OEM replacements are over $660 for a set! They also feature a few key upgrades over the factory forks making them better suited for your MX mini! Starting out are the looks, ours come gloss black and have our TB logo cast into them. Next, adding to the adjustability and performance is the length. They are +40mm, over 1.5″ longer. The dampening rod has also increased in length so the travel can match at +40mm over 1.5″.

Inside the fork they feature HD springs weighted much better for adults who jump at their local Pitbike track. The dampening rods are also ported to match those HD springs so the dampening and rebound is not too fast and bouncy.

Key Features and Specifications (forks):

• Adult weigh fork springs – 115lbs when compressed 3″. These are about 2x as stiff as factory.
• Extended +40mm length and travel (Over 1.5″)
• Gloss black fork bottom with TB logo cast in
• HD springs better suited for adult riders
• Improved dampening rod for better dampening, rebound, and increased travel

DNM Rear Shock, 250LB – KLX110L

Improve your ride and handling with these high quality shocks. DNM has been an integrated part of the suspension industry for more than 40 years. Their goal has always been to supply OEM and the aftermarket with high performance suspension technology at an affordable price. This rear shock is from their MK-AR series and consists of the following features:

Key Features (shock):

• Preload and Rebound Adjustments
• 250lb Spring rate great for adults under 165lbs (If your a very aggressive rider you may need the larger 350LB spring for hitting larger jumps)

• Nitrogen Charged Oil Damping
• Hard chromed steel 14mm damper shaft
• High quality surface finish
• 290mm and is for all year models of the KLX110

Installations notes:

• Fork set comes with 15wt fork oil, if desired you can drain and refill with 4.5-5oz of your choice of fork oil

Recommended:

• Replacement fork seals - TBW1615

Kit Includes:

• TBW1588 - HD forks
• TBW1205 - DNM shock

Application:

• KLX110L - All years

Note: These are not a direct replacement for the Standard KLX110 (NON L) They will be much longer.
