TBparts - Fork Assembly with HD Fork Springs and 250lb DNM Shock Kit for KLX110 (non-L)

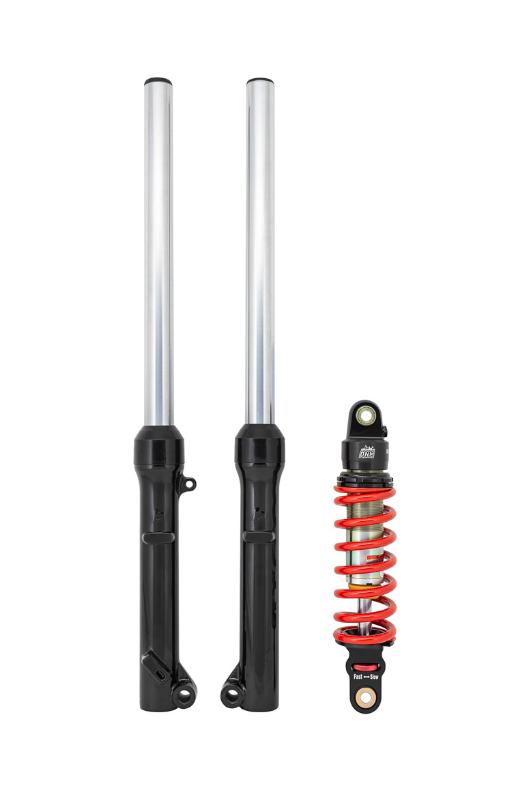

TBparts suspension kit combines our KLX110 adult spring forks with the 270mm 250# DNM rear shock.

TBparts Performance Fork Assembly Set for the Kawasaki KLX110. Once installed the difference in our forks is night and day compared to OEM (You wont want to go back!). Ours come installed with heavy springs much better suited for adult riders. The Dampening and rebound have also been adjusted to match so your front end does not act bouncy like a pogo stick causing loss of control. This combination makes these work twice as well as the underwhelming OEM forks in your backyard on the local mini MX track!

They also feature gloss black fork bottoms with our TB logo cast into them. Finally, we intergraded an OEM style bushing/guide inside the fork bottom for added strength that the original Kawasaki KLX110 forks do not have. Altogether you cannot beat the “out of the box” performance and value this complete fork set offers for your KLX110. Not to mention an OEM replacement set of forks is over $550!

Key Features and Specifications (forks):

• HD springs better suited for adult riders
• Improved dampening rod for better dampening and rebound
• Strengthened with extra bushings
• Gloss black fork bottom with TB logo cast in
• Length of fork and Travel match OEM – 610mm (24″) & 105mm



DNM Rear Shock, 250LB – KLX110

Improve your ride and handling with these high quality shocks. DNM has been an integrated part of the suspension industry for more than 40 years. Their goal has always been to supply OEM and the aftermarket with high performance suspension technology at an affordable price. This rear shock set is from their MK-AR series and consists of the following features:

Key Features and Specifications (shock):

• Preload and Rebound Adjustments
• 250lb Spring rate great for adults under 165lbs (If your a very aggressive rider you may need the heavier 300 or 350LB spring for hitting larger jumps)
• Nitrogen Charged Oil Damping
• Hard chromed steel 14mm damper shaft
• High quality surface finish
• 270mm For KLX110
• TB Red Color Spring



Installations notes:

• 12 to 10mm axle reducer needed for use on KLX110s. These go inside the axle hole in the fork bottom. They reduce the axle diameter from 12mm for Z50s to 10mm for KLX110s (Included with every set of our forks).
• These come with 15wt fork oil, if desired you can drain and refill with 5oz of your choice of quality fork oil

Recommended:

• Replacement fork seals - TBW1615

Kit Includes:

• TBW1096 - HD forks
• TBW1201 - DNM shock

Application:

• KLX110 - All years
• DRZ110 - All years
