TBparts - Nibbi 24mm Carb Kit for Stock Head KLX110

Nibbi helped perfect the simple design of the PE24! Starting with looks, they come hard anodized black. This helps with corrosion resistance, wear resistance, insulation, heat resistance and hardness/strength of the carburetor. The air passage starts out anodized then transitions into a smooth polished finished for optimal power and smooth consistent power. The lightweight hardware is also anodized. Another huge benefit is the splash guard. It keeps the engine operating smooth under bumpy riding. Making them an AMAZING value overall! Paired with our large intake manifold for the OEM cylinder head. This will give you some of the best throttle response and consistent reliable power on the market! We also include a low profile air filter and extended throttle cable.

Key Features:

• Polished round slide for improved throttle response, overall smoothness, and stability in use.
• Lightweight anodized hardware.
• Huge splash guard for smooth operation.
• Anodized, which greatly improves the corrosion resistance, wear resistance, insulation, heat resistance and hardness or strength of the carburetor.
• +2.75″ Extended Cable for use with standard or tall bars

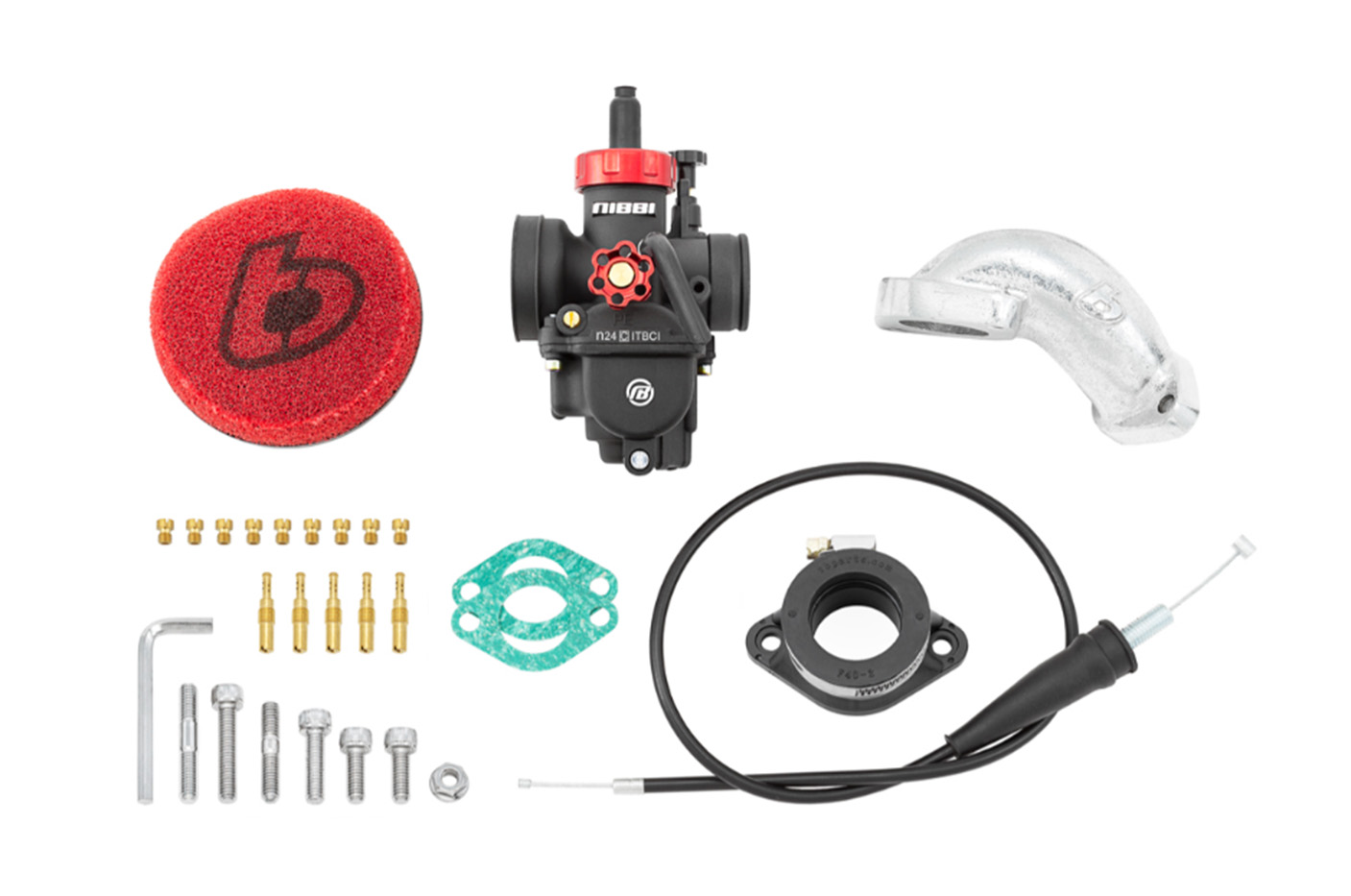

Kit Includes:

• Nibbi PE24 Carb - TBW1757
• Intake kit - TBW0315
• Pilot jet #32, 35, 38, 40 - TBW1762
• Main Jet #98, 100, 102, 105, 108, 118, 122 - TBW0327
• Throttle Cable - TBW0321
• Air Filter - TBW1782

Specifications:

• Stock main jet - 105
• Stock pilot jet - 40

Installation Notes:

• Uses TBW1740 TB Intake Boot, 30x58mm
• DOES NOT REUSE AIR BOX
• Reuse OEM heat stop/spacer
• Tuning required. Make sure the air fuel screw is 1.5 turns out from bottom before you start tuning.
