BBR - U-Flow Power Chamber for KLX/DRZ110/KLX110L from 2002-Present

Key Features:

• Sharper throttle response

• Shields filter from dirt and debris

• Maximizes air-flow with high-volume oversized air filter

• Allows bike to be jetted for optimum performance

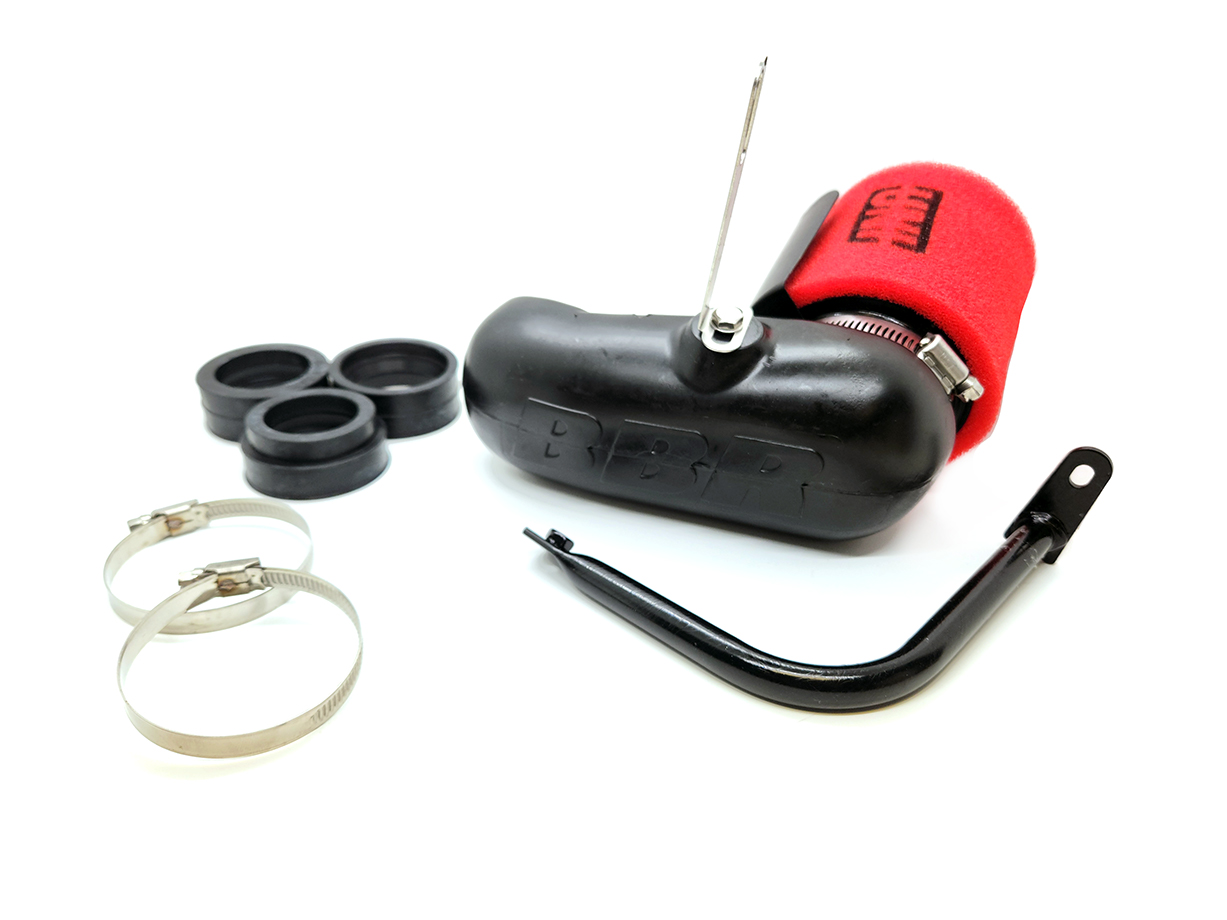

• Complete kit includes adapters to fit stock KLX/DRZ110 carbs along with the Mikuni VM26 and Keihin PWK/PE28

TUNING NOTE:
Jetting Specs for U-Flow Air Filter
*Colder weather requires larger jets. Warmer weather and higher octane require smaller jets.*
92 octane @ sea level (60 degrees)

1. Stock KLX 110 = OEM stock carb and OEM pipe (95-100 main jet)
2. Stock KLX 110 = OEM stock carb and BBR pipe (100 -105 main jet)
3. KLX 110 Stock Carb, 143cc Kit = (100-105 main jet)
4. KLX 110 Stock Carb, 143cc Kit and BBR Pipe = (105 and up main jet)
5. KLX 110 143cc Kit, 26mm Mikuni carb and BBR pipe = (180 main jet, 22.5 Pilot)
6. KLX 110 160cc Kit, 26mm Mikuni carb and BBR pipe = (190 main jet, 22.5 Pilot)
7. KLX 110 160cc+ Kit, 28mm Keihin carb and BBR pipe = (120 main jet, 42 Pilot)
