TBParts - 143cc Bore Kit, Nibbi 26mm Carb for Stock head
KLX110 & 110L 2003 - Present

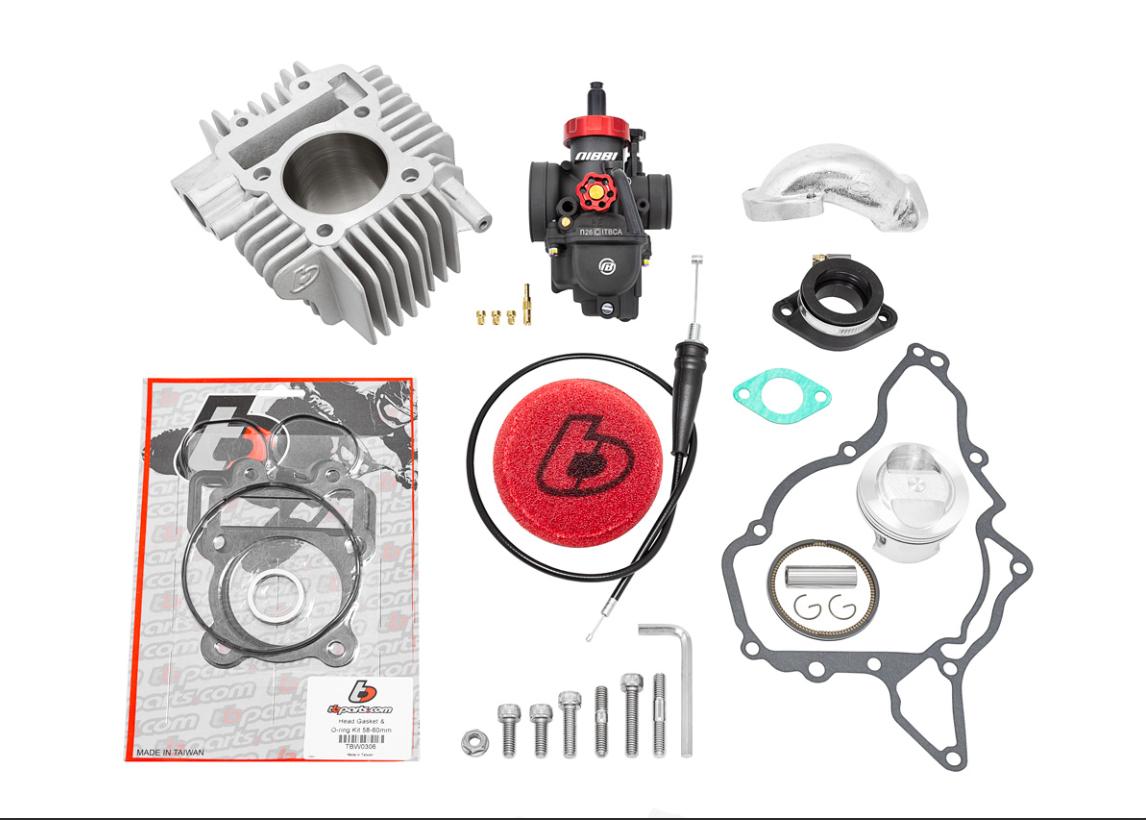

TBparts 60mm 143cc Big Bore Kit: An all aluminum ceramic coated cylinder. No case boring required, bolt on! This cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (increasing power), improves sealing, and provides better heat transfer (runs and cools down quicker). Lightweight, high compression 10.5:1 domed 60mm piston comes with rings, pin, & clips (will safely run on pump gas, 90-93 octane). Top end gaskets are also included.

Nibbi PE26 with TBparts manifold/carb kit: Nibbi helped perfect the simple design of the PE26! Starting with looks, they come hard anodized black. This helps with corrosion resistance, wear resistance, insulation, heat resistance and hardness/strength of the carburetor. The air passage starts out anodized then transitions into a smooth polished finished for optimal power and smooth consistent power. The lightweight hardware is also anodized. Another huge benefit is the splash guard. It keeps the engine operating smooth under bumpy riding. Making them an AMAZING value overall! Paired with our large intake manifold for the stock head. This will give you some of the best throttle response and consistent reliable power on the market! We also include a low profile air filter and extended throttle cable for the KLX110.

Key Features:

• All aluminum ceramic plated 60mm cylinder
• Lightweight high compression 60mm piston with rings, pin, & clips (Select cast or forged option below)
• Head gasket kit, includes the cylinder head o-ring set and an exhaust gasket.
• Nibbi 26mm Performance Carb

Application:
