CJR - Cam Chain Guide for CRF110

Vital Information
Price$39.99
Part No CJR-1368
Location110B
Stock Level 3 Left
1

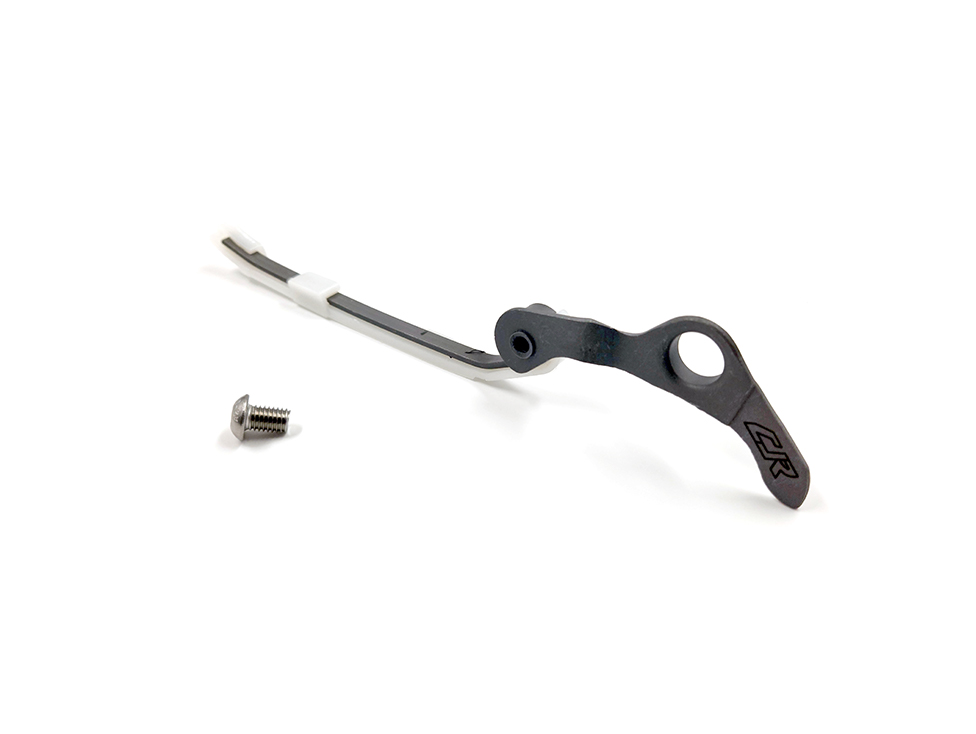

This is a replacement cam chain guide that is highly recommended while using high RPM applications. The OEM rubber rollers see excessive wear very quickly and often fail leaving rubber chunks to float around the engine case.
The avail motorsports oil pump sprocket and the cjr chain guide, those two parts will eliminate the 3 rubber rollers completely from the engine

Recommended:

  • CRF110 Flywheel Puller - W-62-2003
  • Avail Motorsports - HD Oil Pump Drive Gear for CRF110 - TRC-0748
  • Tusk Full gasket set - Honda CRF110 - RM-1321050086


MUST READ ENTIRE DESCRIPTION AND NOTE BELOW BEFORE ORDERING.

Installation notes:

  1. Remove left engine cover
  2. Use flywheel puller to remove flywheel
  3. Remove OEM roller guide and spacer
  4. Remove the OEM rubber roller found in the middle of the cylinder.
  5. Use 10mm to remove the bolt and roller.
  6. Replace with a shorter 10mm bolt (not included) using the same or a new copper washer.
  7. Install chain guide in place of the OEM roller guide
  8. Re-Install covers, ensure camshaft is on TDC, turn over engine by hand 3 times before firing.



Note: Due to being a race item, this product does not offer a warranty. For race competition only.
