TRC - EZ Start High Performance CDI

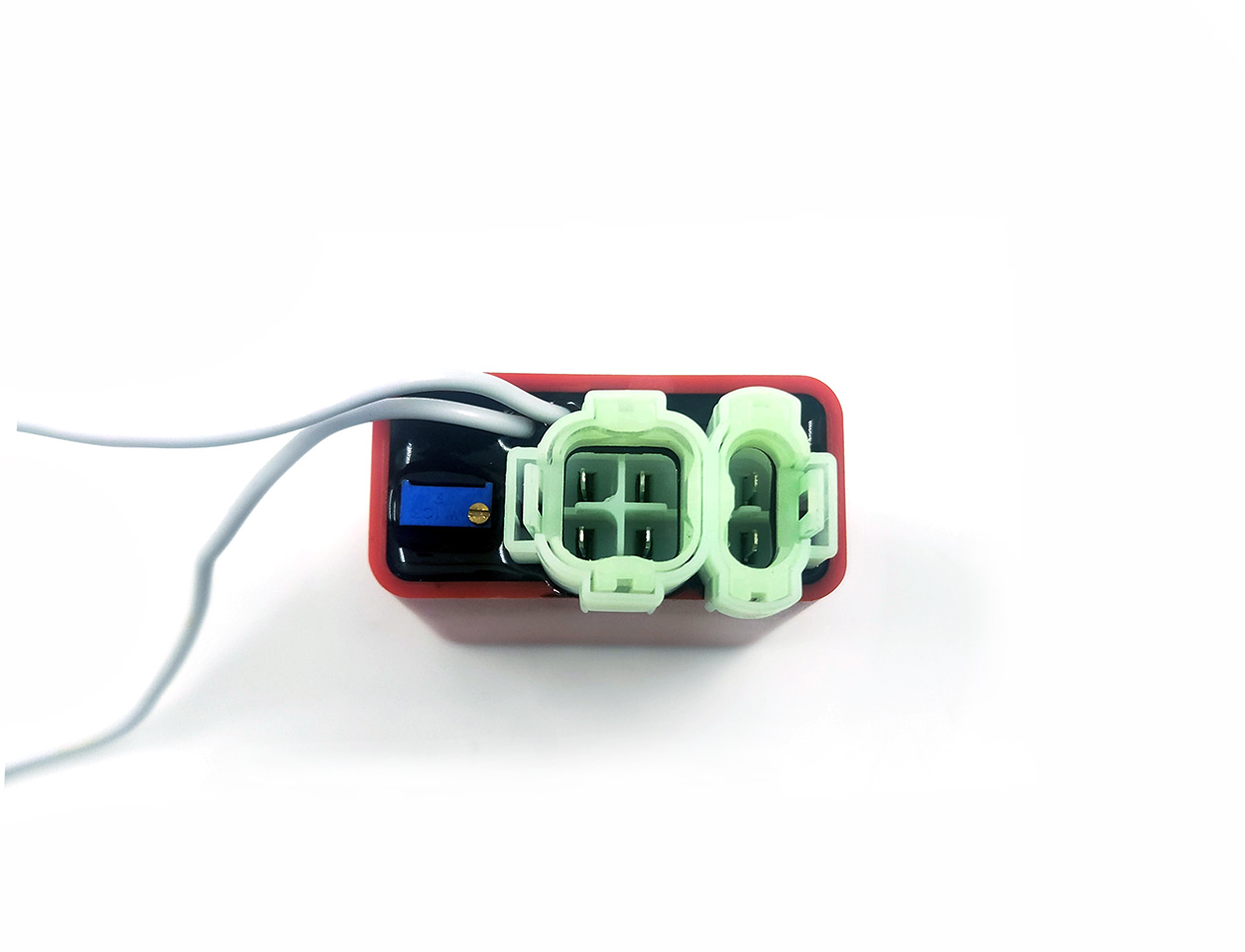

Help eliminate kickback, increase performance, and be able to adjust the rev limit all with this high performance CDI offered by TBoltUSA! The rev limit is adjusted via the small brass screw next to the jack on the CDI when the white wires are plugged together. If the white wires are unplugged, there is no rev limit.

Upgrade for:

• Honda 50/70 CDI
• Standard SSR 6 pin CDI (with optional jumper )
• Standard China 5 pin CDI (with optional jumper )

Key Features:

• Low advance at low RPM for E-Z starting and less kick back
• Tested on our biggest 184cc and 193cc builds with vastly improved starting and 0 kickback
• Adjustable rev limit

Application:

• YX Outer Rotor Stator
• Standard Gold Flywheel Stator
• HD 6 pole stator
• Honda CRF50/70 stators
• Daytona 190 5-speed E-start version only

Note: Do NOT use on DAYTONA 190 FDX or FLX 4 speed kickstart engines

Specifications:

• 0-500 RPM - 10 degrees advance
• 501 to 2000 RPM - 20 degrees advance
• 2001 RPM -  Up to 38 degrees advance

Note: CDI plugs into Honda harness with no jumper. Add $5 jumper for Chinese and SSR Type harness applications. See option selectors below

Available Options:

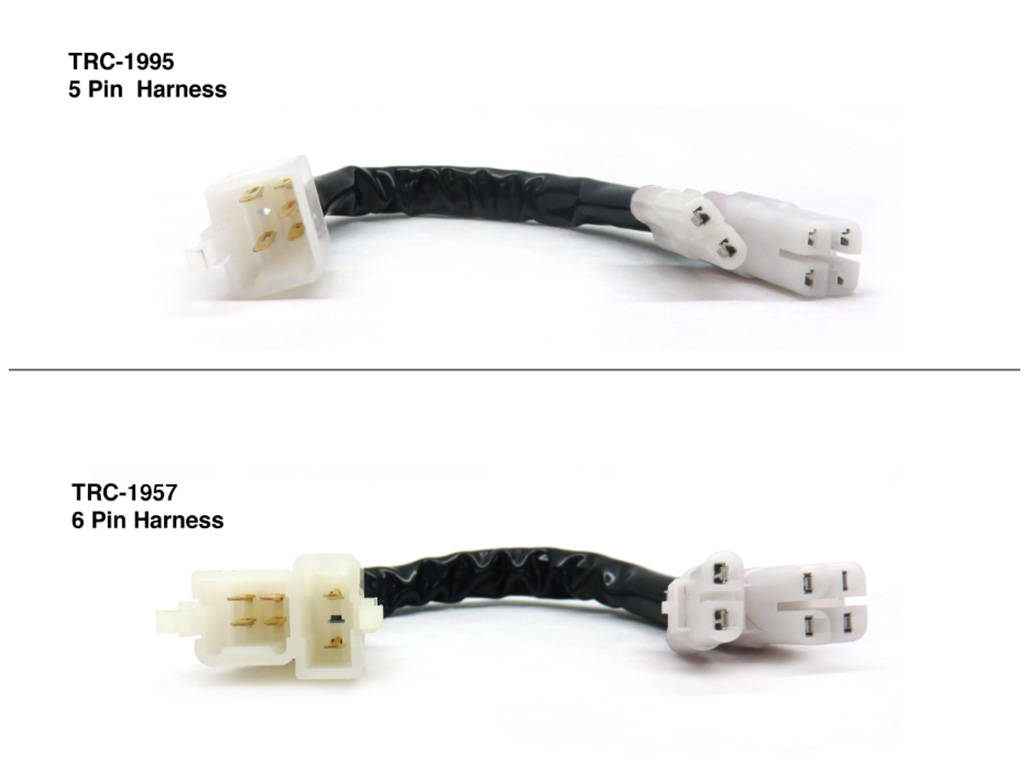

Harness Type:
HondaChina 5 Pin TRC-1995 (+$5.00)SSR 6 Pin TRC-1957 (+$5.00)
