TRC EZ Start High Performance CDI

Vital Information
Price$59.00
On Sale $44.95
Part No TRC-9745
Location305B
Stock Level In Stock
Choose Options

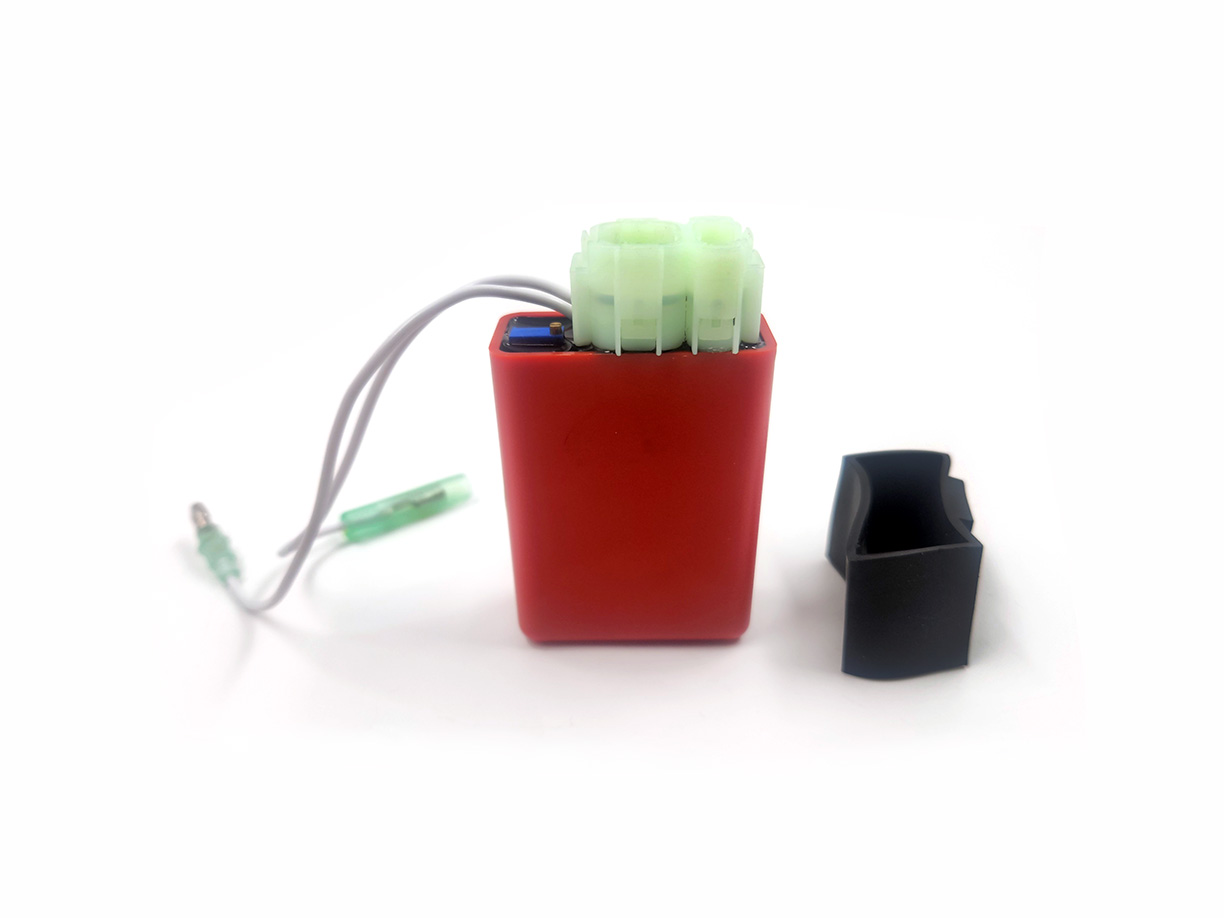

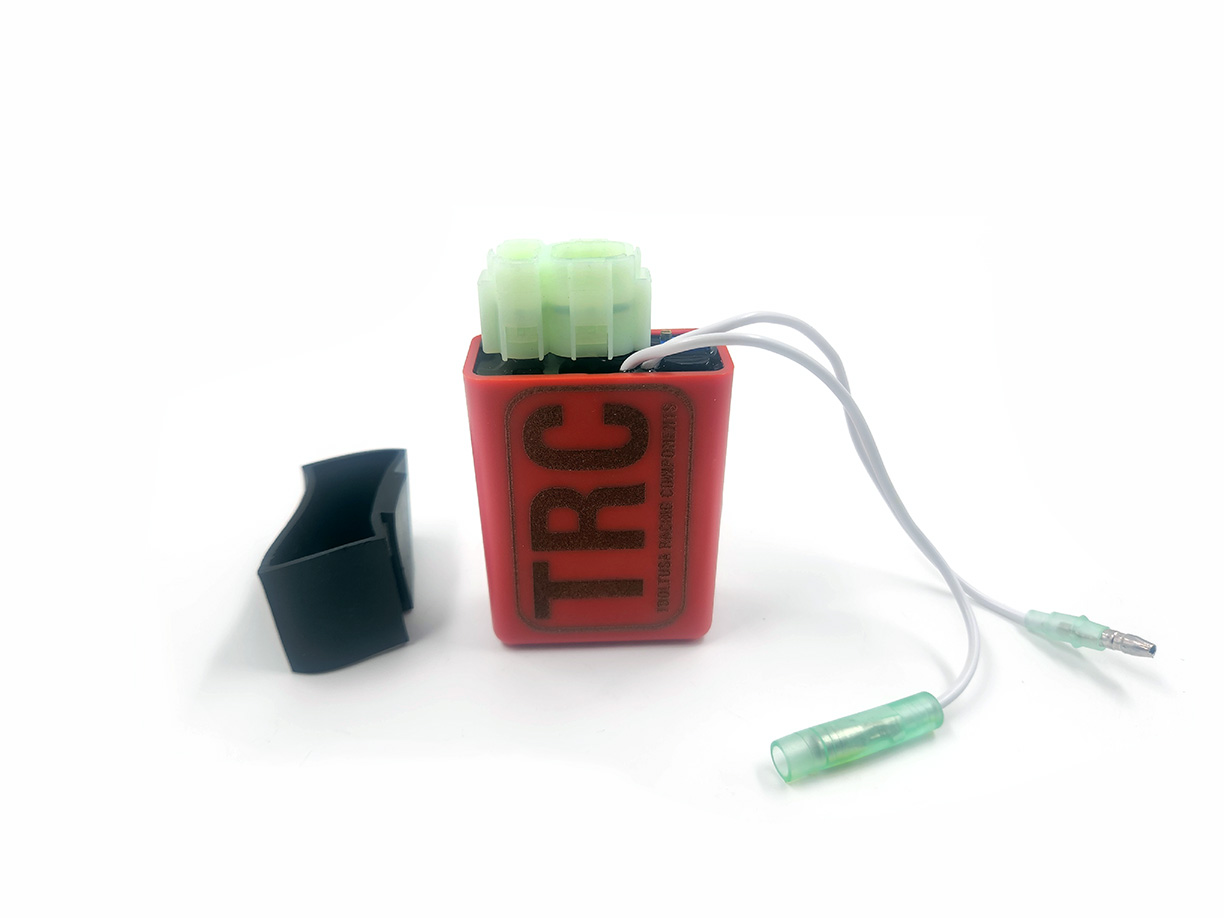

TRC E-Z Start High Performance  CDI

Low Advance at Low RPM for E-Z starting and Less Kick Back
No REV limit

Tested on our biggest 184cc and 193cc builds with vastly improved starting and 0 kickback

Upgrade:
Honda 50/70 CDI
Standard SSR 6 pin CDI
(with optional jumper )
Standard China 5 pin CDI
(with optional jumper )

Works With:
YX Outer Rotor Stator
Standard Gold Flywheel Stator
HD 6 pole stator
Honda CRF50/70 stators


SPEC:
0-500 RPM 10 Degrees advance
501 to 2000 RPM 20 Degrees advance
2001 RPM up 38 Degrees advance

NO REV LIMIT
(with jumpers open)

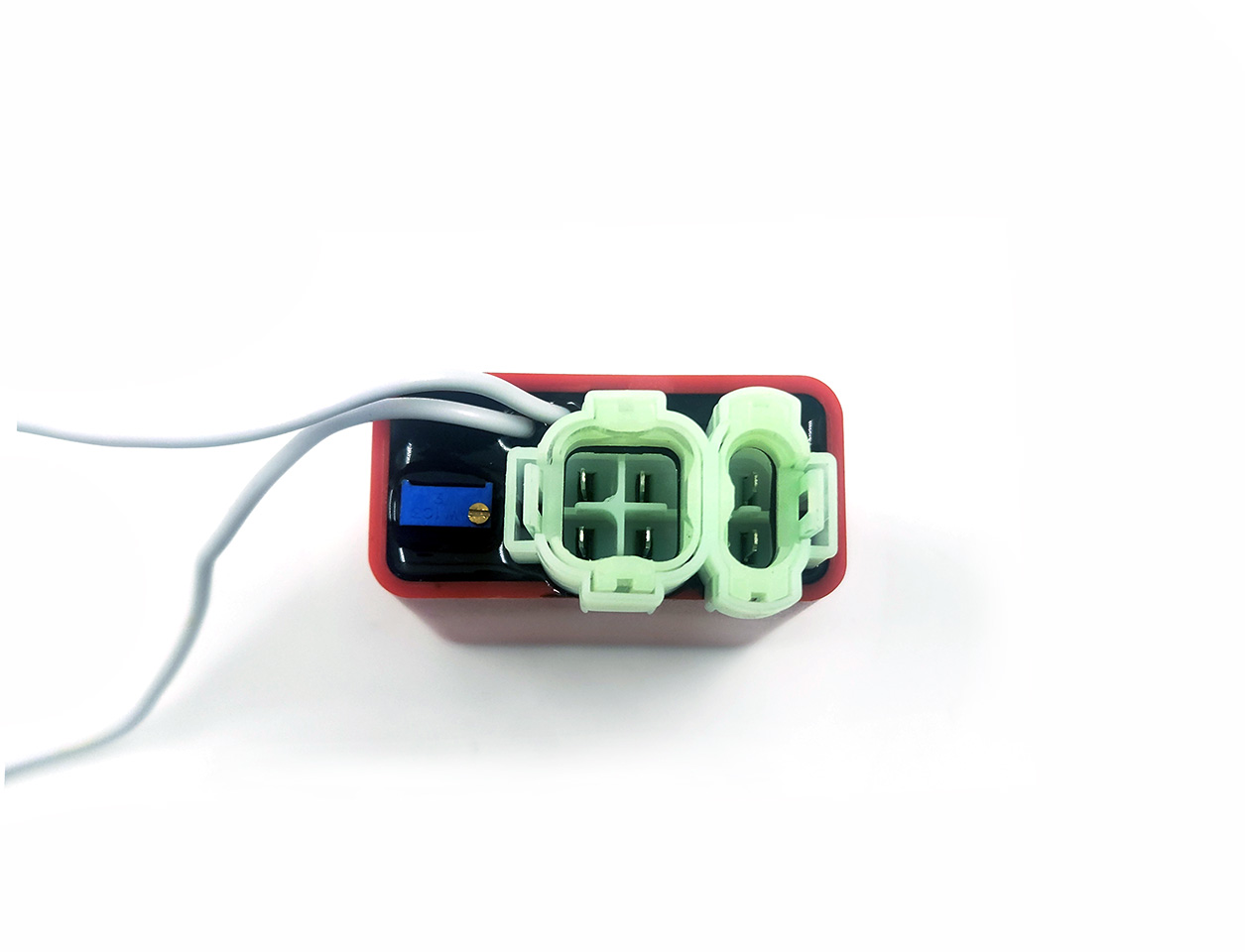

ADJUSTABLE REV LIMIT VIA BRASS SCREW
(with jumpers connected)

Application note:
Plugs into Honda Harness with no jumper

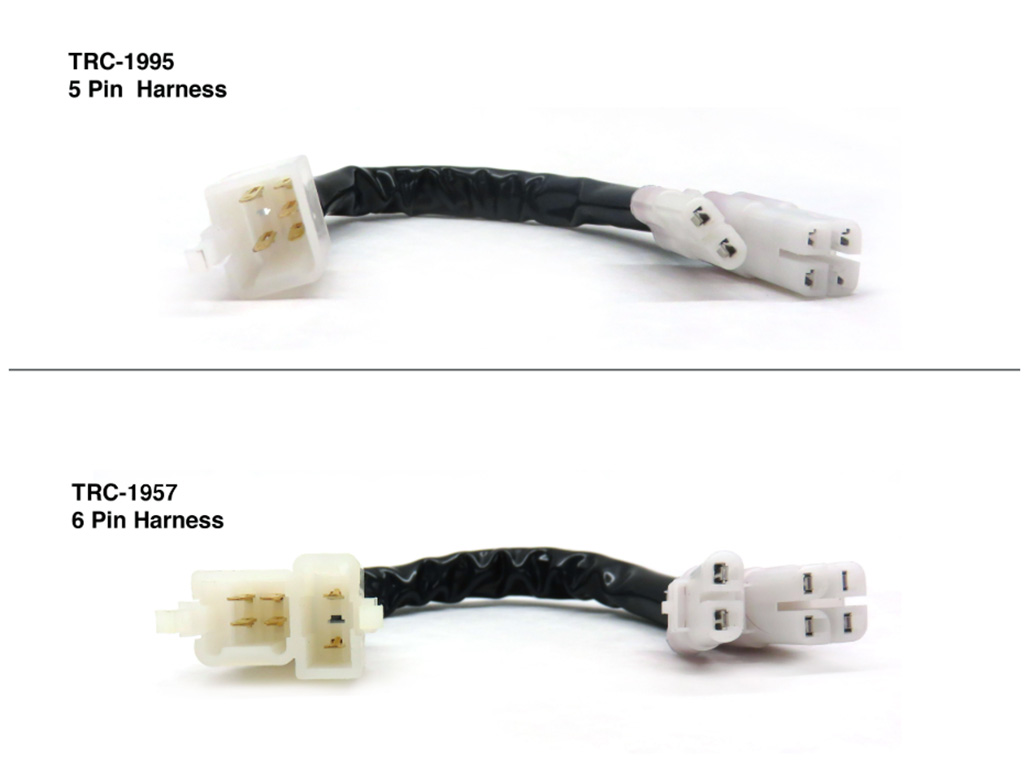

Add $5 jumper for Chinese and SSR Type harness applications
See option selectors below

 Easy Start

Available Options:

Harness Type:



(4 Reviews)
