TBParts - Vintage Honda 108cc Stroker big bore & Nibbi 24mm Carb kit
CT70 ALL 4 speed & 80-81 3 speed

108cc Stroker Crank with Race Head Kit w/ Nibbi24mm carb kit

We recommend purchasing the Upgrade Disk Kit for your TB manual clutch. Additionally, we do not recommend the use of an inner rotor kit with this clutch (on a 108cc or larger engine) as it can lead to premature clutch failure due to extra fatigue placed on the clutch housing. However, we offer an upgrade which allows use of inner rotor kits and larger displacement engines

Please see the Billet Housing upgrade available in this section for more details. Also, do not tighten the clutch nut with a hammer and screw driver - it must be torqued on!

This kit is the complete kit to convert your stock motor into a powerful open class 108cc engine. Also, this crank was made specifically for the newer engines and thus, you will not have any fitment issues like trimming the piston skirts in order to clear the crank or the piston not lining up with the cylinder deck.

This kit requires engine dis assembly and therefore, we highly recommend a professional technician install this kit. If you plan on doing it yourself, you will need to have a Clymer or Honda shop manual. Instructions do not come with the kits but the installation of the crankshaft is just like installing a stock Honda crankshaft.

Race Head has been updated for even more performance! It now has 25/22mm valves with better porting/flow. We also kept the combustion chamber the same size and changed the angle of the valves slightly.

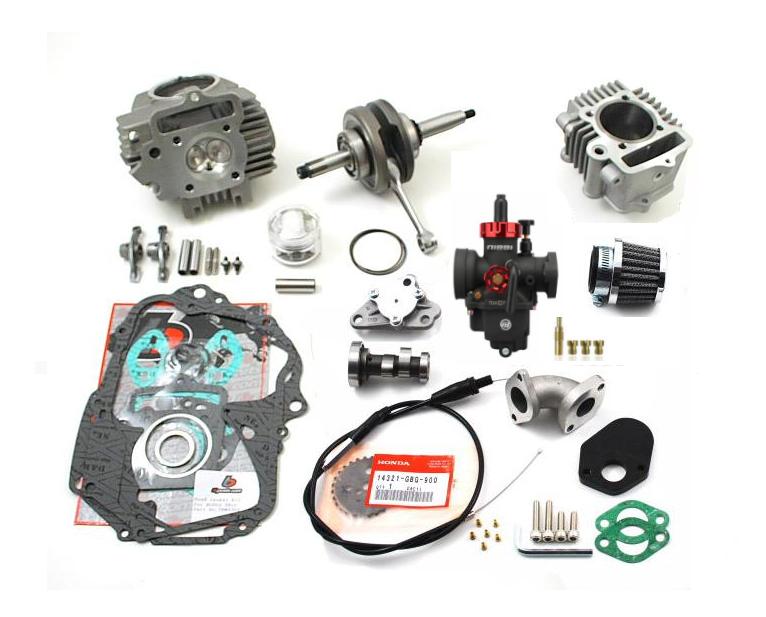

Key Features:

• 51mm Crankshaft with NTN bearings

• High compression piston with rings, pin, & clips

• Race Head Larger valves (now 25/22mm) and better flow for increased performance. Also has bigger cooling fins. Includes all necessary parts and comes assembled!

• Lightweight aluminum cylinder with steel sleeve, cast in mounts for skid plates, and larger cooling fins.

• High performance race camshaft

• Nibbi 24 Carburetor kit with intake, air filter, and throttle cable.

• Crankcase and clutch cover gaskets

• Head gasket kit
