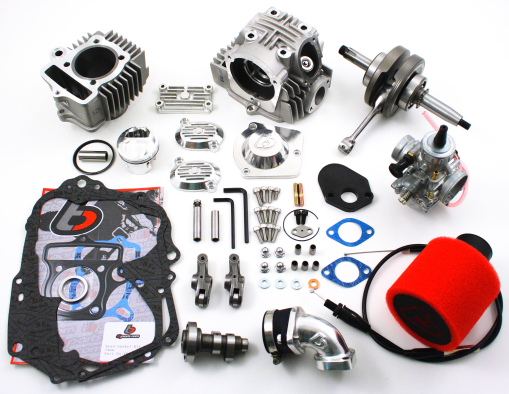

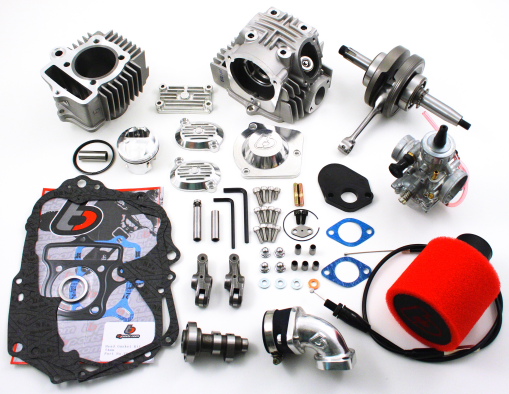

TB Roller Rocker Race Head V2 (52mm) Big bore & Stroker Crank kit 108cc. Highest performance race head on the market with full parts support in stock.
Key Features:
- Roller Rocker Arms exactly like the V2 head for the KLX110
- 28.5mm intake Valve
- 23.5mm Exhaust Valve
- 5mm Valve Stem
- 23mm Exhaust port
- Matching High Compression Piston
- Head kits include all hardware
- 52mm piston with rings, pin, & clips
- 52mm Aluminum Cylinder
- High performance race camshaft (for the Race Head only)
- VM26 Mikuni Carb Kit
- Head gasket kit
- 51mm Stroker Crank
Recommended:- High volume oil pump - TBW0226-12V
- 2 Size clutch tool - WHS2274
- TBparts oil cooler for V2 heads - TBW9187
- Sta-bil fuel stabilizer - W-57-1129
- TB 12 way rotating spacer - TBW1487
- High speed 2mm drill bit - TRC-5526
Application:
Kit Includes:
- TBW0750 - V2 Race head
- TBW0821 - V2 Head bolt kit
- TBW0752 - V2 Cam
- TBW0754 - V2 head cover set
- TBW0753 - Piston
- TBW0859 - Head gasket kit
- TBW0156 - Cylinder
- TBW0301 - Throttle cable
- TBW0433 - Intake kit
- TBW0399 - Carburetor
- TBW0413 - Air filter
- TBW0287 - Clutch cover gasket
- TBW0334 - Center case gasket
- TBW0319 - Stroker crank
Installation Note:
It will save a lot of time and effort if the oil pump is installed while installing the bore kit (requires cylinder removal).
Assembly info
SEE TECH DATA LINK
https://tboltusa.com/store/tech.php?pID=216/TBparts+V2+Honda+TBW0750+and+China+TBW0751+head+TECH?
