TBParts - Carb Kit for Z50 K3 - 78

Vital Information
Part No TBW9155
Stock Level 3 Left

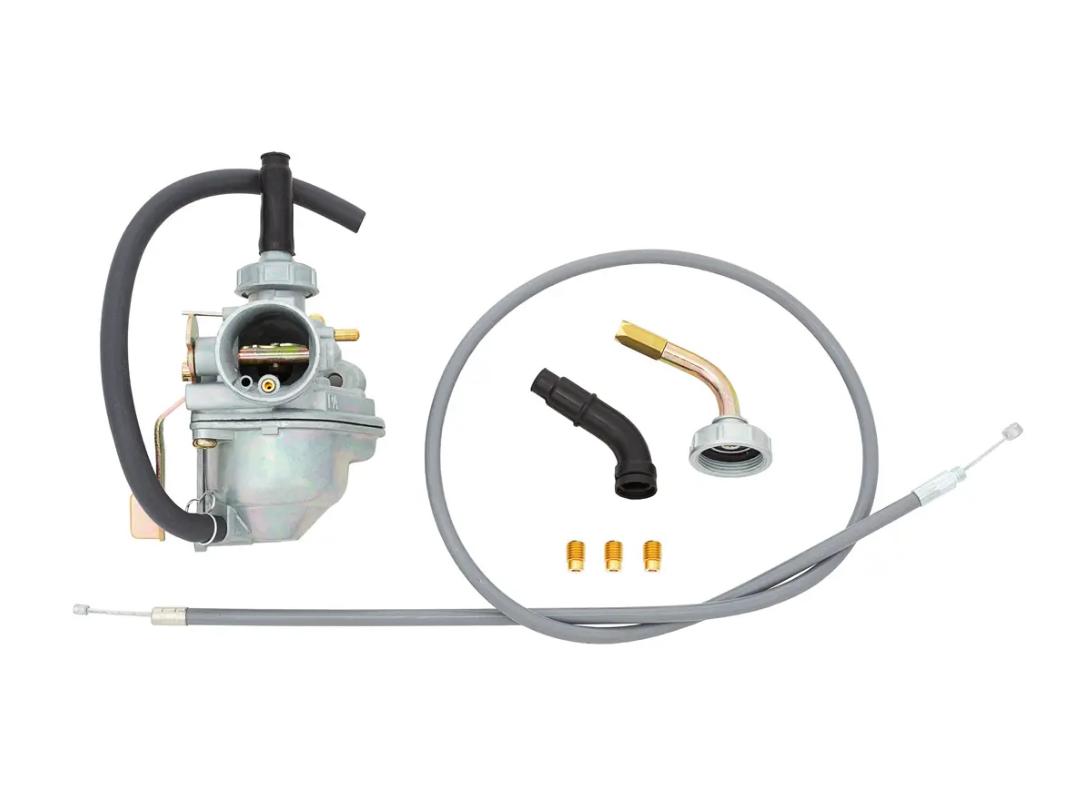

TBW9155 Z50K3-78 Carb Kit
Reproduction PA type Carb – comes with 3 extra mains

Carb, throttle cable & retro carb cap included

Carburetor has an adjustable needle by moving the clip up or down, and the idle and air screws are adjustable through the use of a standard straight screwdriver.

Removable , Adjustable main jets

Fixed (non adjustable pilot)

Choke on = Lever up

Choke off = Lever down

Filter size needed: 1.25 Inches


  • K3 - 1978 Z50

Kit Includes:

  • TBW0718 - Throttle cable
  • TBW0716 - Carb cap top set
  • TBW1107 - Carburetor
  • TBW1110 - Extra main jets #57 #59 #61


  • Pod filter TBW0676
  • Pod filter TBW0647
  • Pre-filter - WHS-1664 for use with POD filter
  • Main jets - TBW0645 #50 #53 #57 #59
