TBParts - Keihin Reproduction Carburetor for Z50, XR50 & CRF50

Vital Information
Price$39.00
Part No TBW9156
Location218B
Stock Level 2 Left
1

79 and up Z50, XR50, & CRF50
Reproduction Keihin PA type Carb – comes with 3 extra mains

Flange mount

Carburetor has an adjustable needle by moving the clip up or down, and the idle and air screws are adjustable through the use of a standard straight screwdriver.

Removable , Adjustable main jets

Fixed (non adjustable pilot)

Choke on = Lever up

Choke off = Lever down

Filter size needed: 1.25 Inches


Specifications:

  • Flange is 1 1/4" or 32mm  center to center mounting holes.
  • Air Filter end is 28mm O.D.
  • Overall height top to bottom approximately 110mm

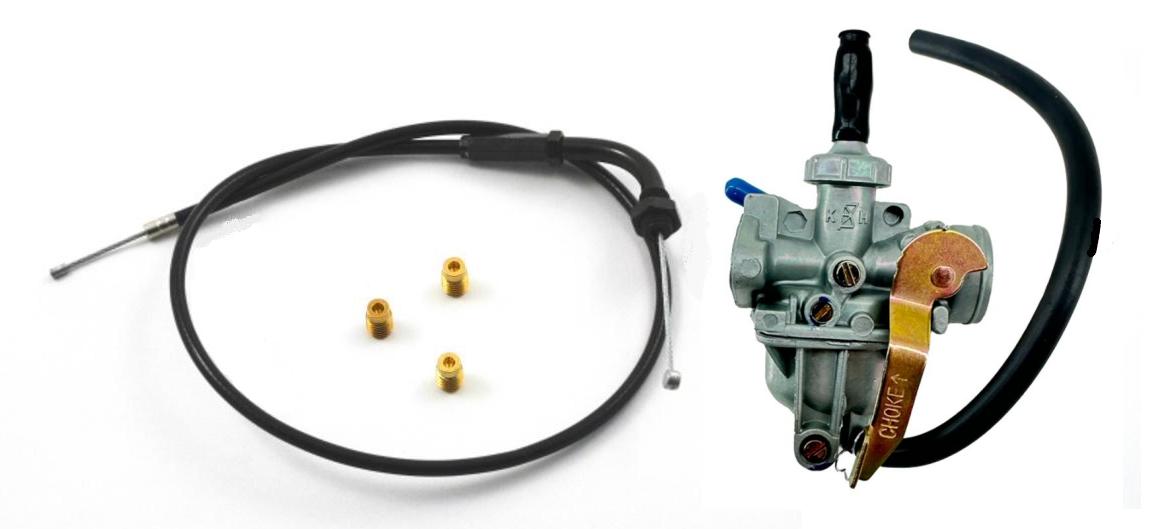

Kit Includes:

  • TBW1107 - Carb
  • TBW1110 - main jet kit #57 #59 #61
  • TBW1114 - Cable

Recommended:

  • Sta-bil fuel stabilizer - W-57-1109
  • Pre-filter - WHS-1664 for use with POD filter
  • Pod filter TBW0676
  • Pod filter TBW0647
  • Extra Main jet kit TBW0654 #50 #53 #57 #59

Application:

  • 1979 to present stock Z50 XR50 CRF50
