**Signature required shipment**

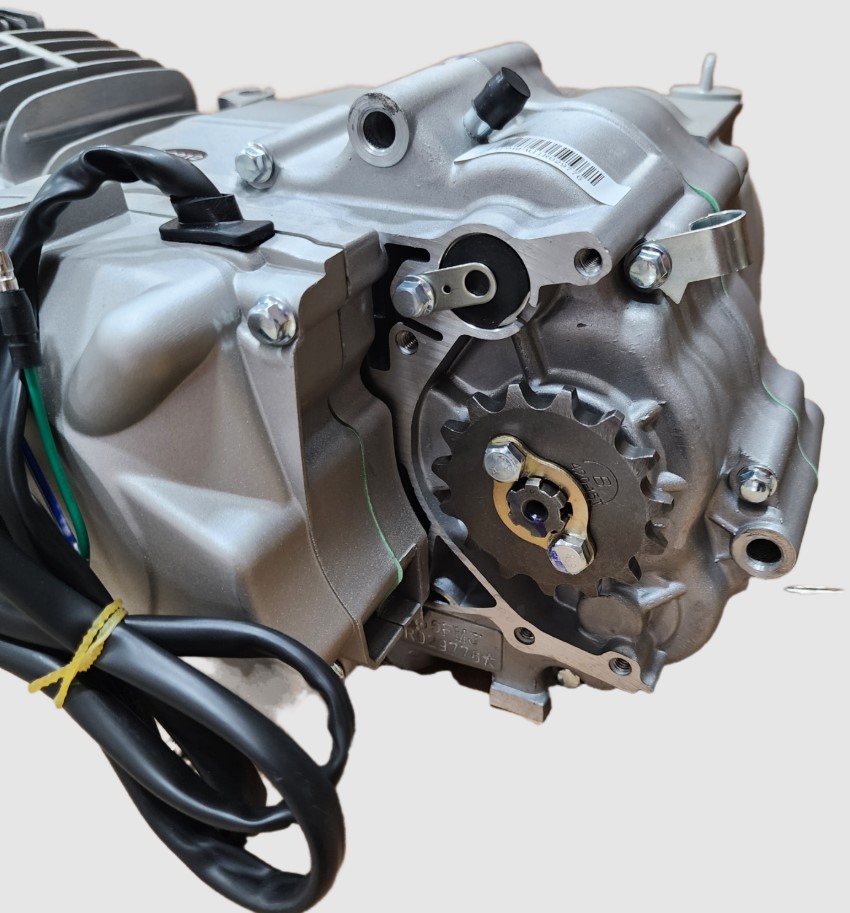

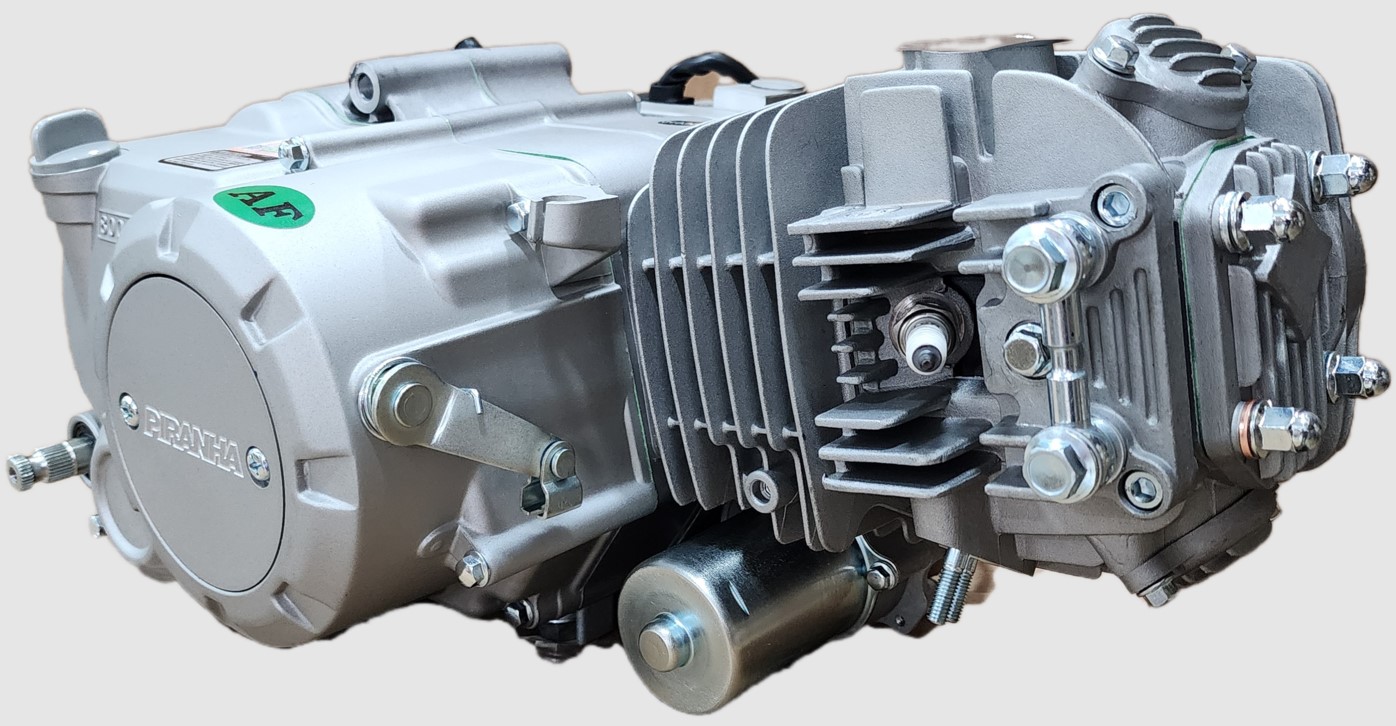

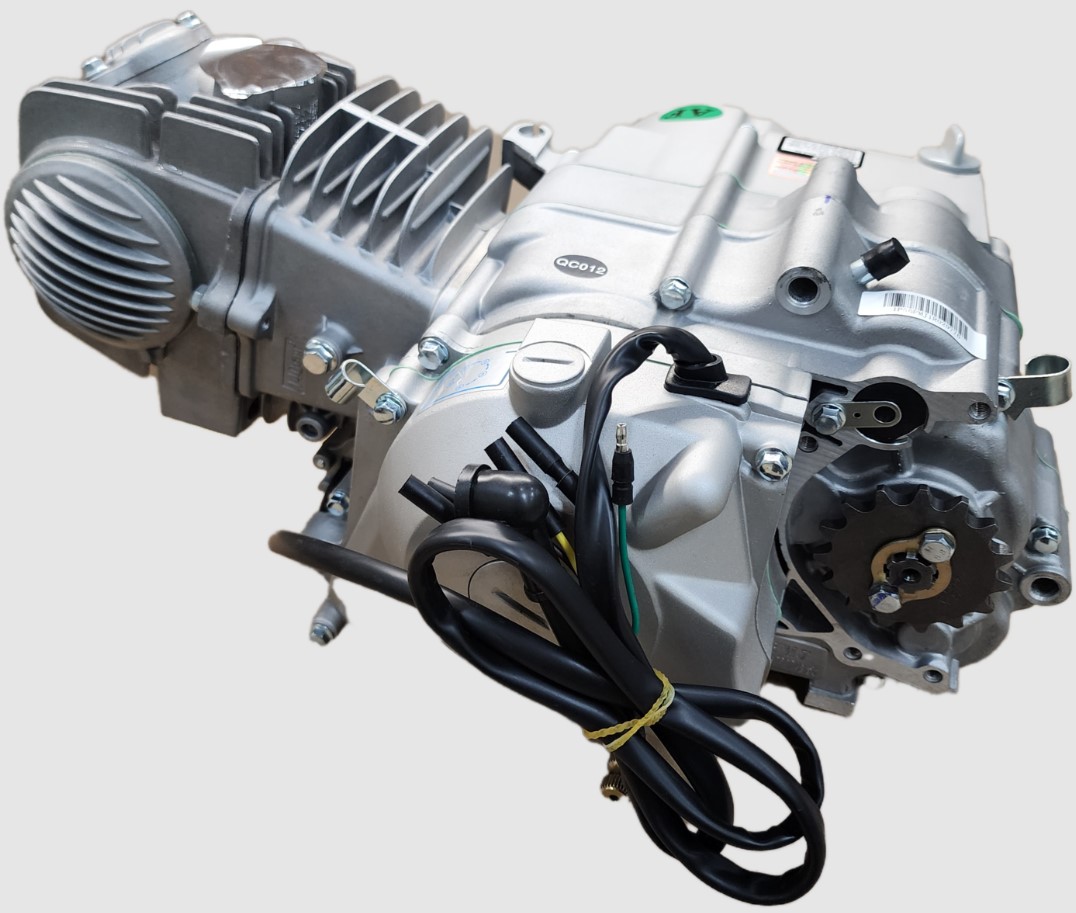

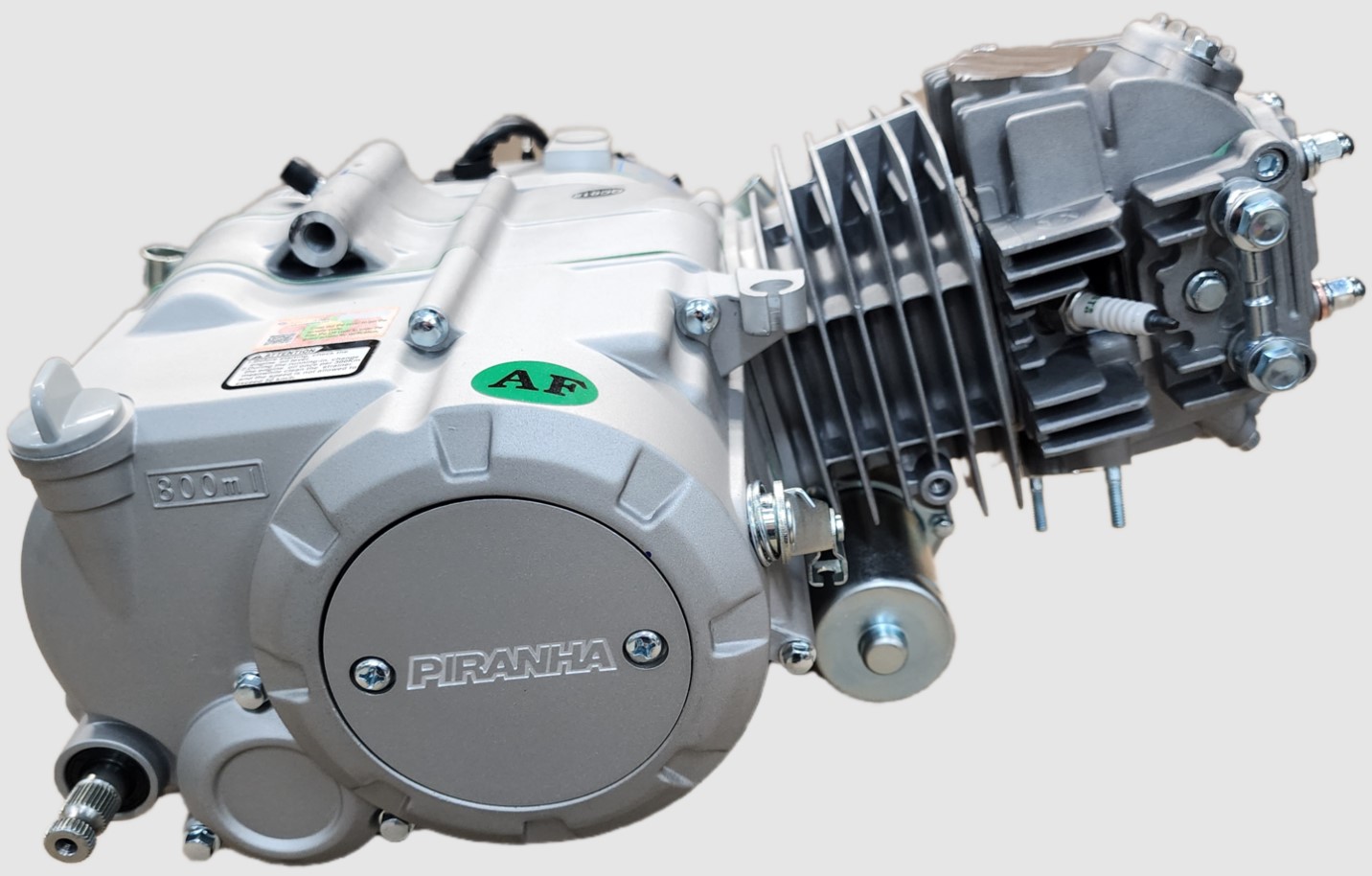

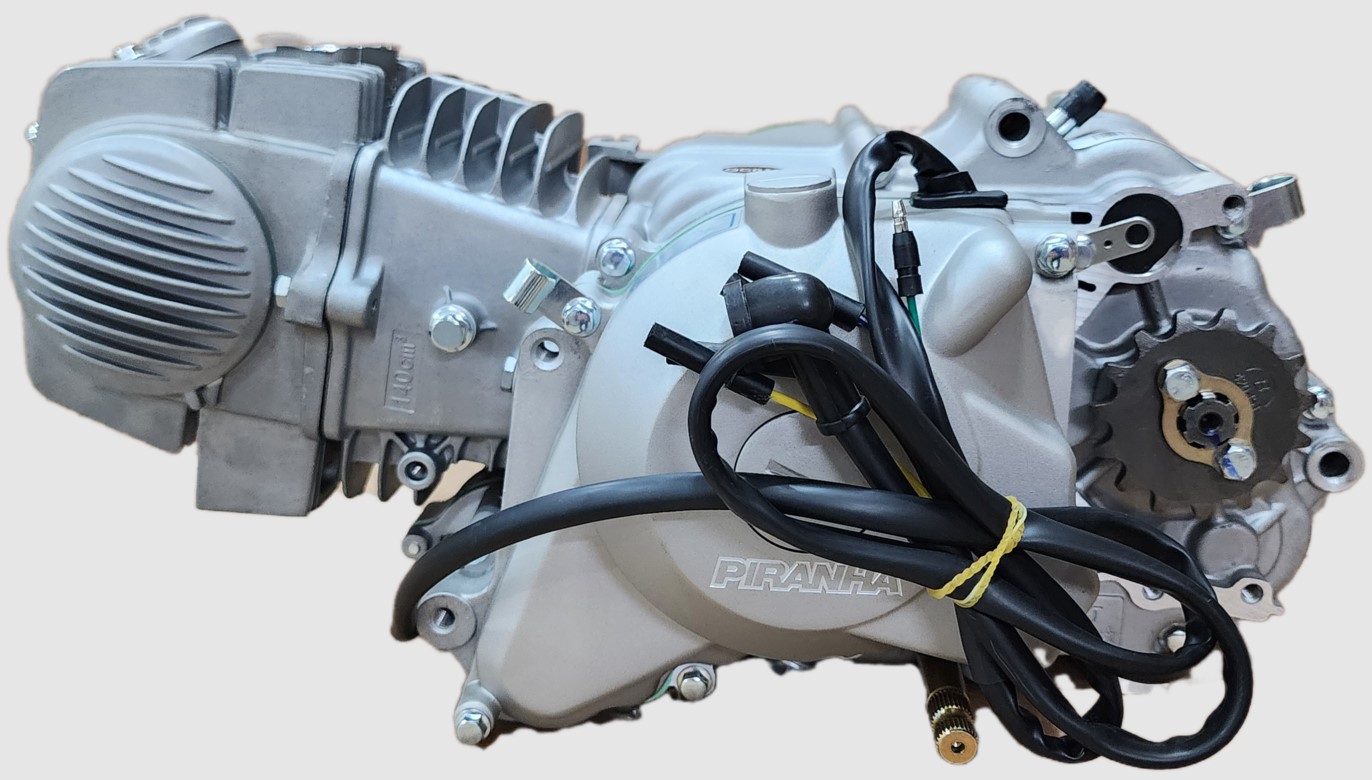

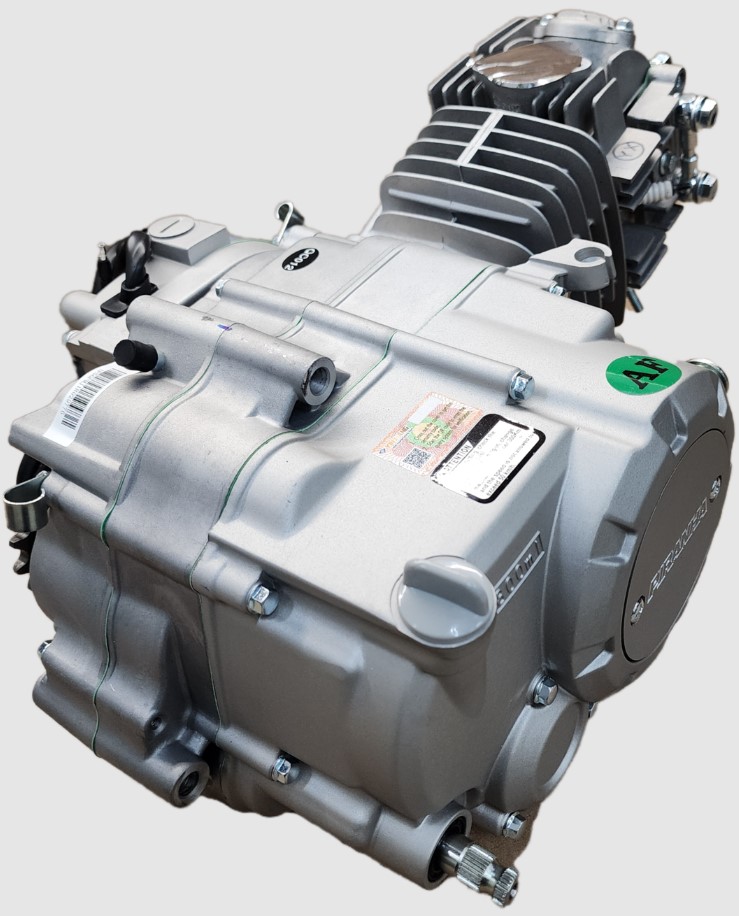

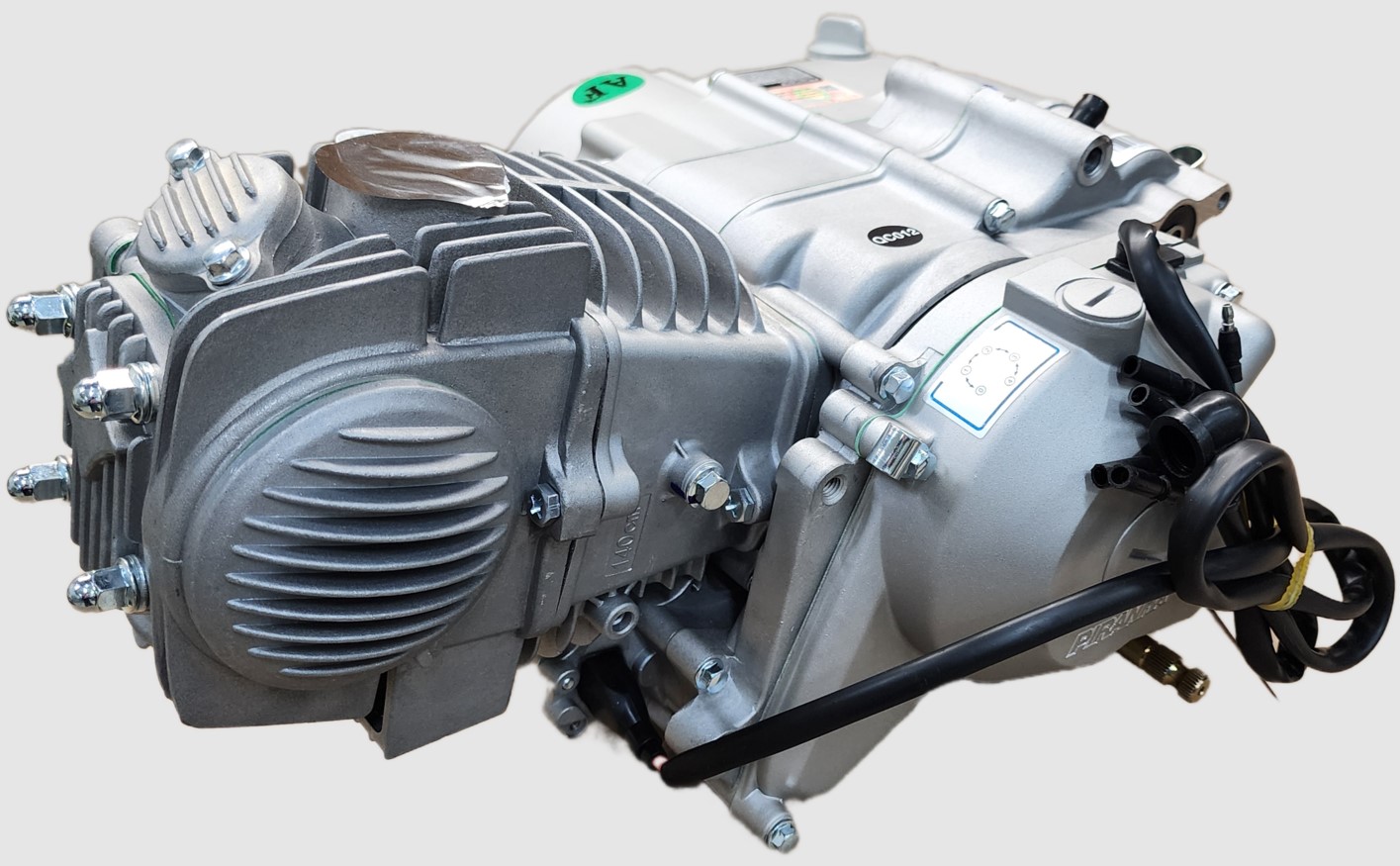

The ultra popular Piranha 140, aka YX140 manual engine now is offered with electric start! An awesome engine that provides versatility for many different builds!
*AMA RULE BOOK Eligible YX 1P56FMJ (140cc)

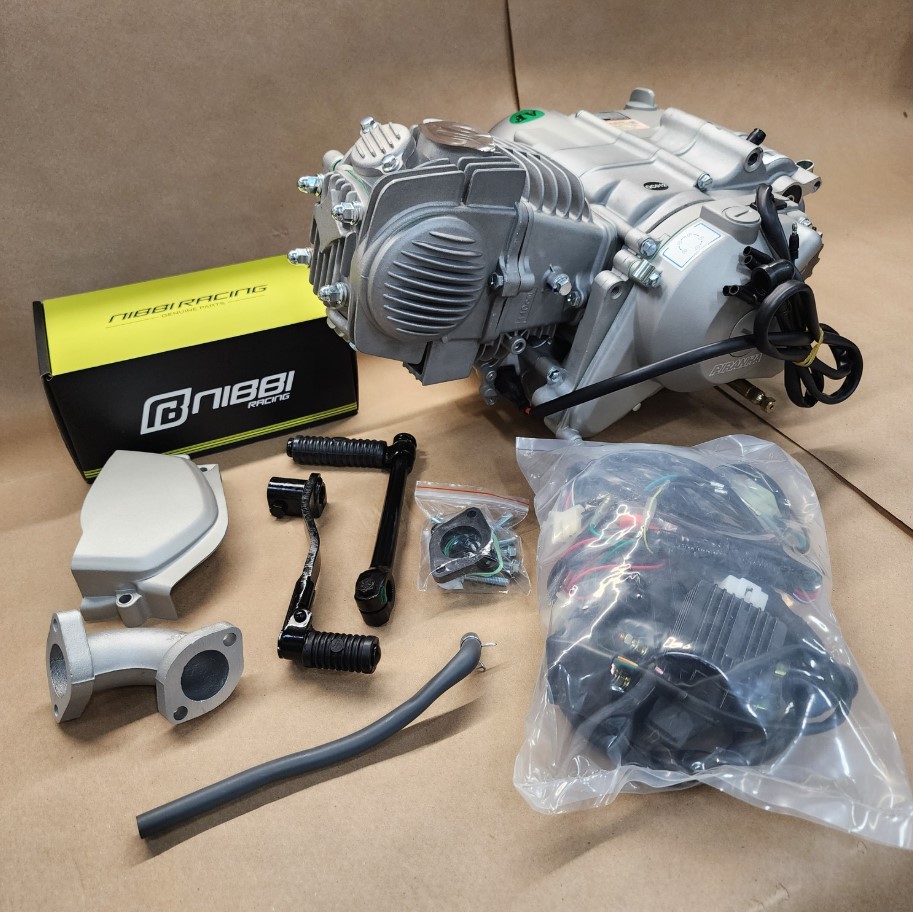

Engine Kit Includes:
Engine
Intake
CDI
Coil

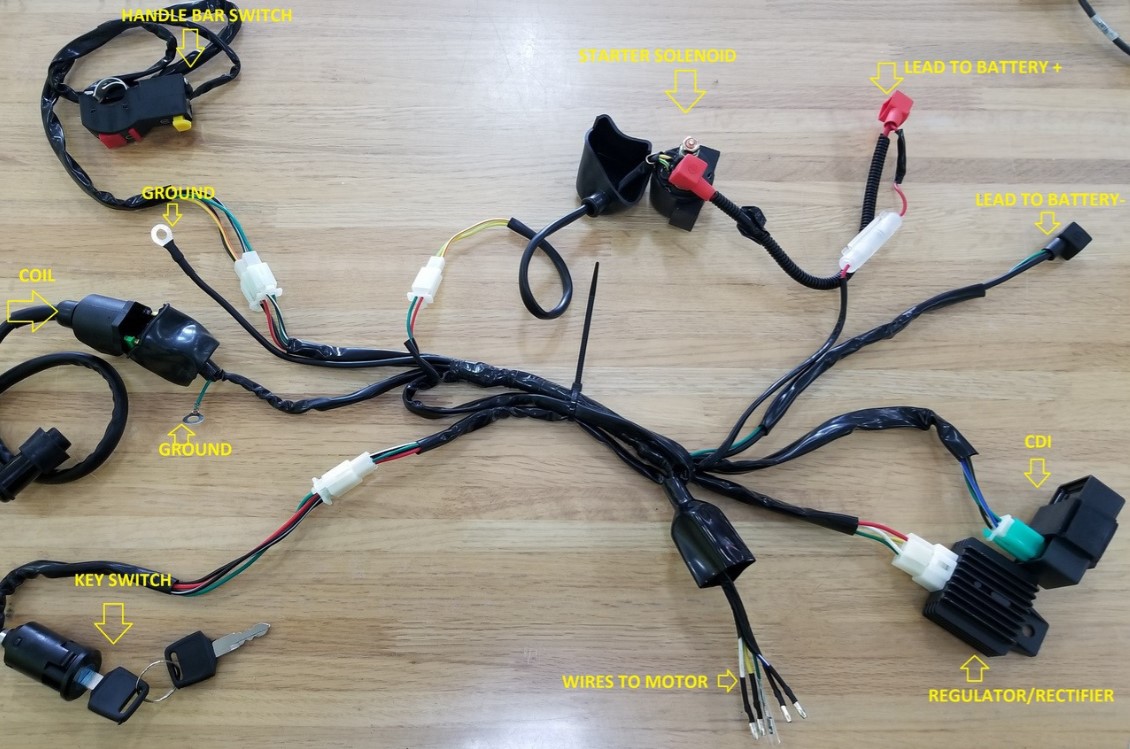

Harness
Kicker 14mm
Shifter Carburetor 15T front drive sprocket
Engine
Displacement
140cc
Engine Type
Air Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke
56mm x 57mm
Final Drive
Chain
Fuel Delivery

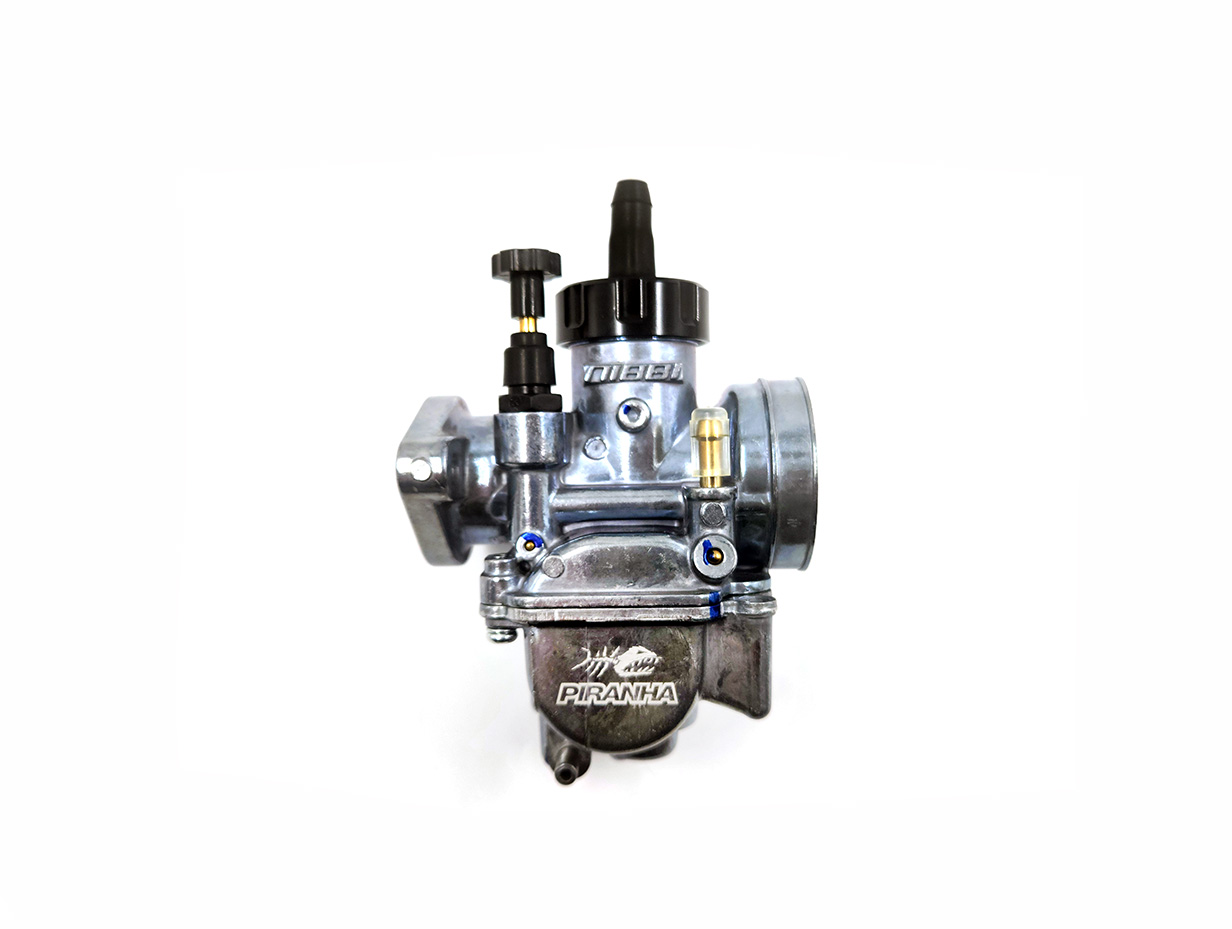

Nibbi 19mm
Fuel
Unleaded / 91 Octane
Recommended Engine Oil
10W-40 Petroleum Based (Nonsynthetic)
Ignition
Kick Start
Yes (14mm)
Electric Start
Yes
CDI
Yes
Auxiliary Output (lighting)
Yes
Transmission
Transmission
4-Speed Manual 4-Up
Shift-Pattern
Four-speed Transmission: N-1-2-3-4
Clutch
Crank mounted 3-plate
For lighting setups:
Voltage regulator simple harness type 1 - TRC-0797 Voltage regulator/rectifier 6V type 1 - TRC-0503 Voltage regulator/rectifier 12V type 1 - TRC-0127
Recommended for your application:
Tech:
Takes Keihin round jets series 99101-393 - TBW0327 Takes Keihin 21 series pilot jets used in PJ, PWK, PD, and 20-32mm PE carbs - TBW0363 Honda XR50/CRF50:
CRF50/XR50 tank spacer kit - TRC-1955 Peg mount w/ pegs setup - TRC-4958 Peg mount spacer and bolt set - AS75-16-20 Throttle cable - TBW0301 Honda XR70/CRF70:
Peg mount with peg set up - TRC-4958 Peg mount spacer and bolt set - AS75-16-20 Throttle cable - TBW0301 Honda CT70:
Peg mount w/ pegs setup - TRC-4958 Peg mount spacer and bolt set - AS75-16-20 Dual feed petcock for ATC70 CT70 Z50 - TBW0133 CR type universal throttle 1/2 turn - W-70-1056 T3 throttle cable for 20-28mm carb - TRC-1142 Honda Z50:
TBparts race petcock for Z50 69-78 - TBW0355 TBparts 12-way rotating spacer - TBW1487 Honda ATC70:
Dual feed petcock - TBW0133
Not Included:
Skid plates
Exhaust
Air filter
Throttle Cable Clutch lever Clutch cable
Note : We suggest using an aftermarket exhaust to obtain maximum performance.
IMPORTANT ENGINE STARTING INFORMATION
You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
Turn on Both Fuel and Choke
DO NOT open the throttle (do NOT turn the throttle)
Move the starter down until it gets stiffer, your looking for top dead center
Let the starter come back up and give a full strong swift kick ALL the way thru
REPEAT (If necessary)
DO NOT KICK RAPIDLY
When warm just do not use the choke
Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG
For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745
One more thing:
At times it helps to just crack the throttle a
tiny bit to let air in.
Available Options:
Air Filter: None Uni 1.75in Air Filter (+$22.95) Clutch Cable: No Clutch Cable WHS-5010 (+$17.99) Clutch lever: NO YES (+$13.99) Exhaust Gasket: None COPPER TYPE TRC-1189 (+$3.00) Kickstarter: None TRC-0934 (+$39.75) Shipping: Flat Rate (+$85.00)
