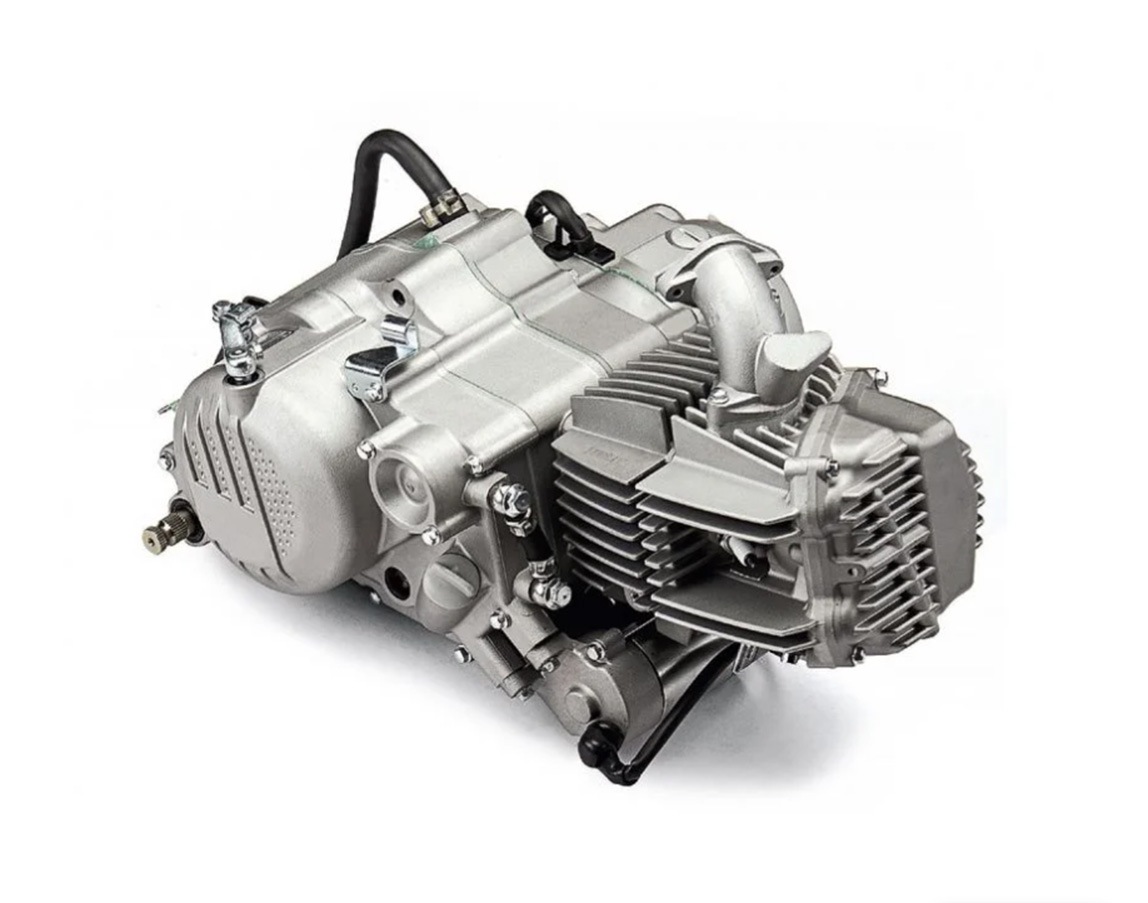

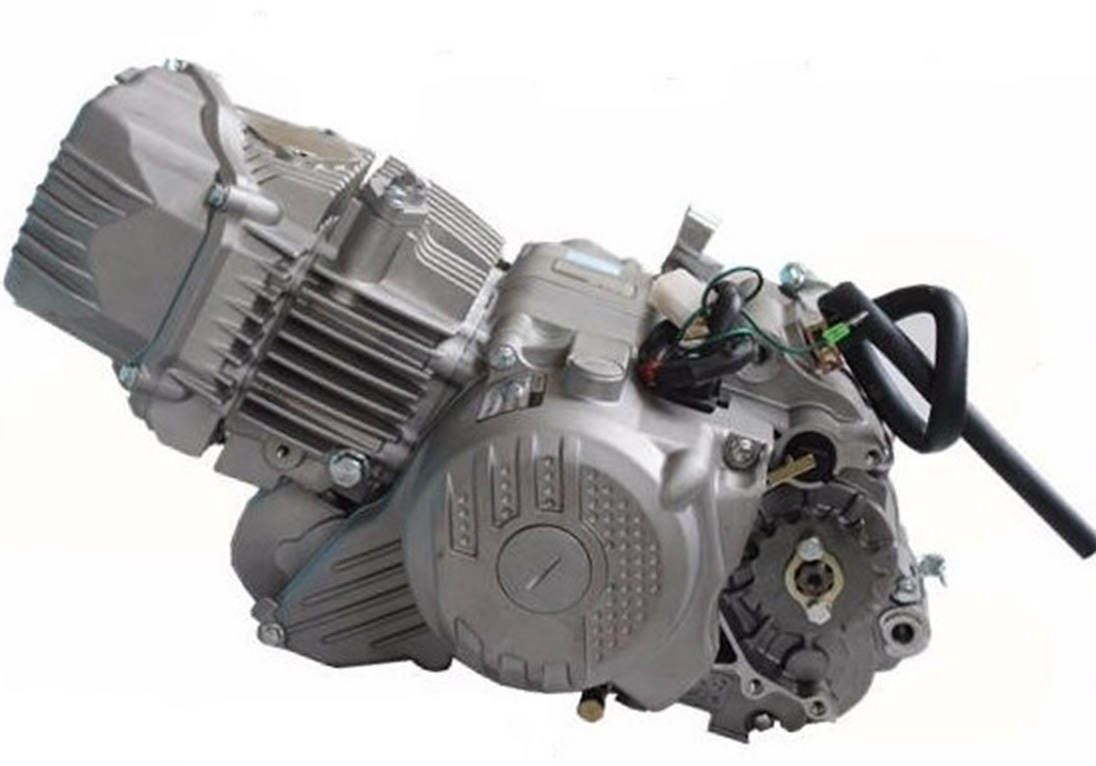

Piranha - Zongshen 190cc 2V Five Speed Electric Start Engine

Vital Information
Price$985.00
Part No WHS-3243
Location000W
Stock Level In Stock
Choose Options


Kit Includes:

  • Carburetor
  • CDI (5 pin)
  • Coil
  • Kickstart lever
  • Shifter
  • Wiring harness
  • Starter solenoid
  • Voltage rectifier
  • Start/kill button
  • Manifold & gasket
  • Rubber boot carb spigot
  • Throttle cable
  • Clutch cable
  • Key switch

Recommended:

  • Oil filter - TBW1015
  • Peg mount - TRC-4958


Note:
Will ONLY work with Pegmount kit on MOTOPED
Will NOT clear MOTOPED pedals
Carburetor intake can only be positioned as shown in the pictures
(we currently have no intake options for this)

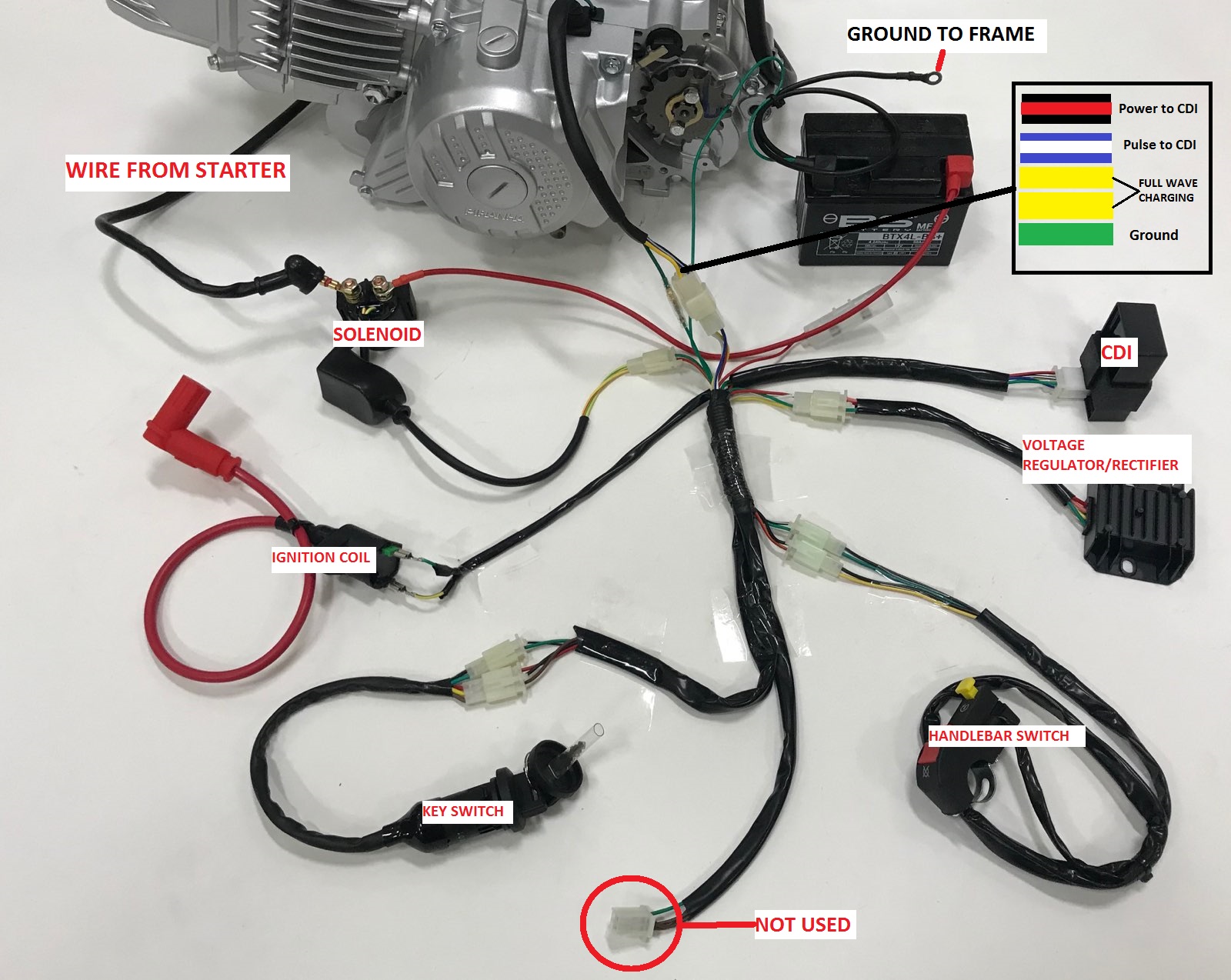

The single green/red wire is the neutral indicator wire
This is not needed to run the engine

ENGINE
Displacement187cc
Engine TypeAir Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke62mm x 62mm
Final DriveChain 428 / 15T
Fuel DeliveryMolkt 28mm
FuelUnleaded / 93 Octane
Recommended Engine Oil10W-40 Petroleum Based (Nonsynthetic)
IGNITION
Kick StartYes - 16mm shaft type
Electric StartYes
CDIYes
Auxiliary OutputYes
TRANSMISSION
Transmission5-Speed Manual
Shift-PatternFive-Speed Transmission, 1-down 4-Up
ClutchRear Multi-plate

Available Options:
