Mikuni 22mm Carb Kit
fits Pit Bikes and other Minis

Vital Information
Part No TRC-0107
Stock Level In Stock

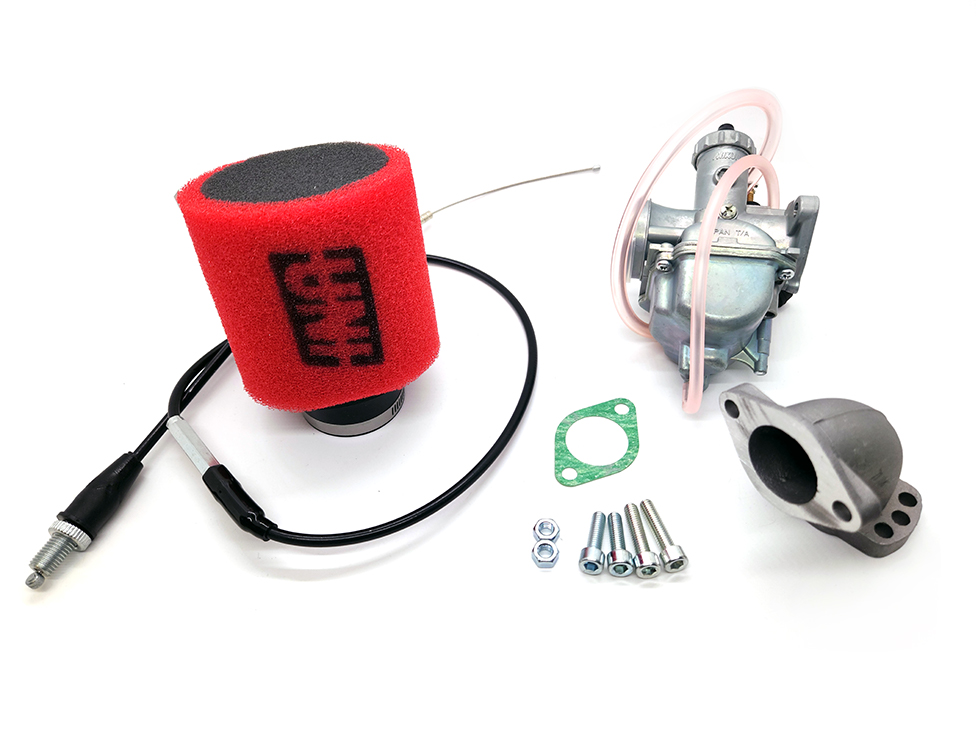

Mikuni 22mm round slide carb kit!

Kit includes:

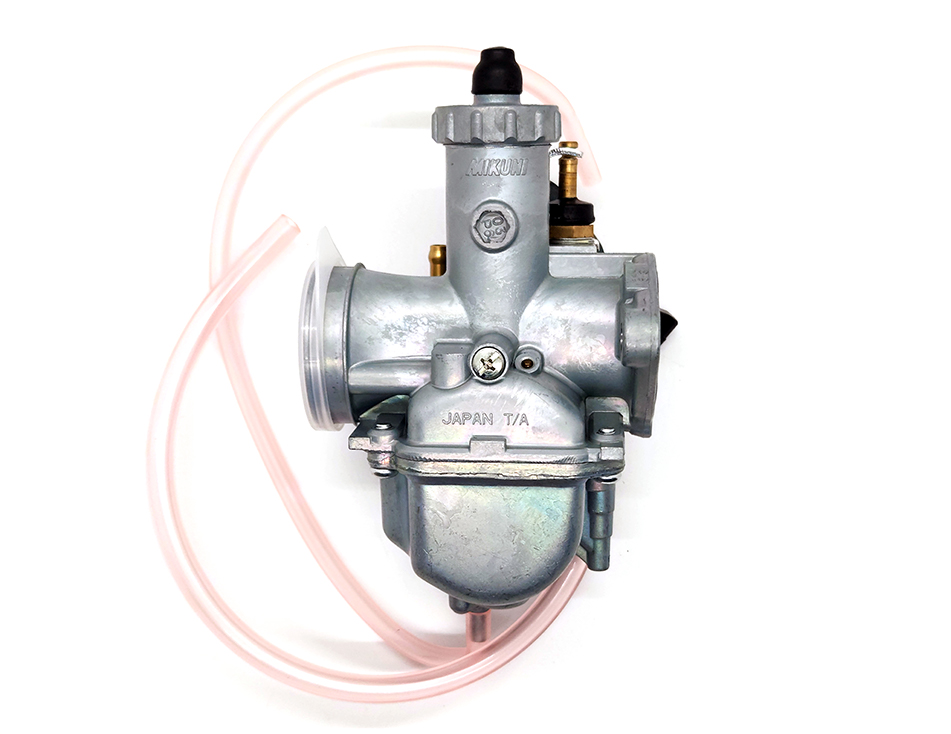

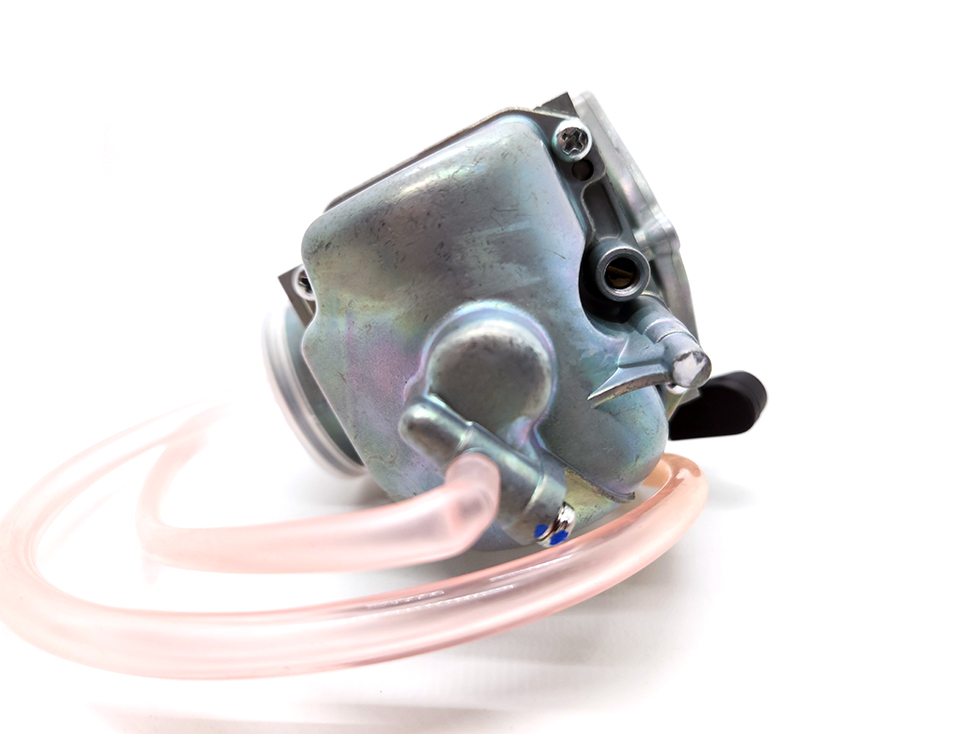

  • Mikuni 22mm carb - WHS-0957
  • High flow matched Intake with adjustable mounting- TRC-2093
  • Throttle cable - TBW0301
  • UNI air filter - UNI-UP-4152AST
  • Intake gasket - TBW0376
  • Intake hardware - TRC-0845 (2)M6 x 25 Bolts , (2)M6 x 20 Bolts , 2 x M6 nuts)


  • Flex jet - W-59-1002 or Fuel screw - RM-1140340001
  • 22mm Mikuni jet kit - W-TRC-1370

Tuning info:

Takes Mikuni jets:

  • Pilots part # vm28/486
  • Mains part # n100.604

Brass fuel/Air screw is located bottom front (set to 2.5 turns out)
Sliver idle screw is located on right side, opposite side of choke
Lever up = Choke on
Lever down = Choke off
