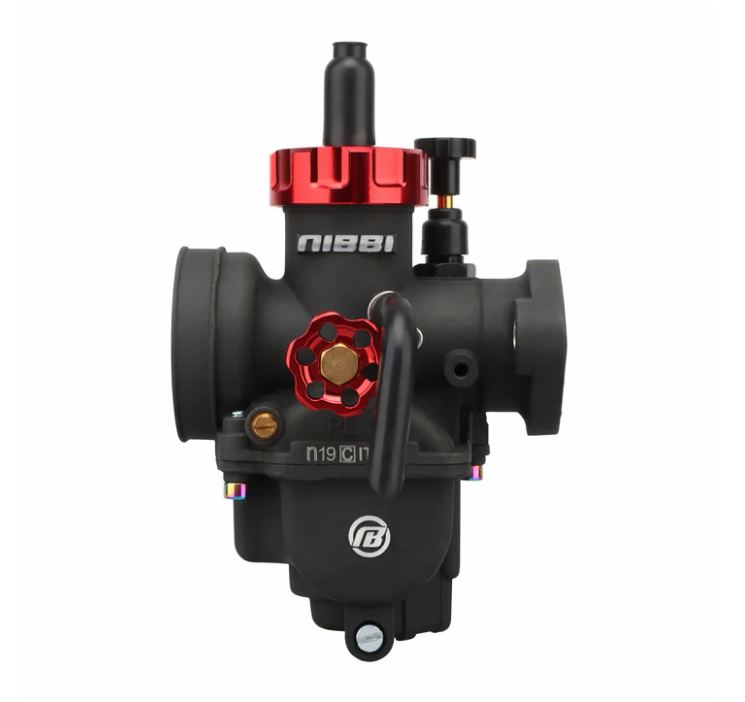

Nibbi 19mm Flange Mount Carburetor

NibbiRacing PE 19YJ flange mount carburetor. Aluminum alloy with anodic oxidation treatment on the surface, which greatly improves the corrosion resistance, wear resistance, insulation, heat resistance and hardness of the carburetor. Combined with NibbiRacing carburetor atomization technology, it allows for a responsive throttle, dramatically improving your motorcycle's performance and solving the problem of underpowered carburetors on the market.

Note: The NIBBI 19mm uses the same body as the 24mm as to the overall size

Specifications:

• 48mm bolt center to center flange

• 19mm ID Spigot
• 46mm OD intake
• 139mm Height
• 88mm Width

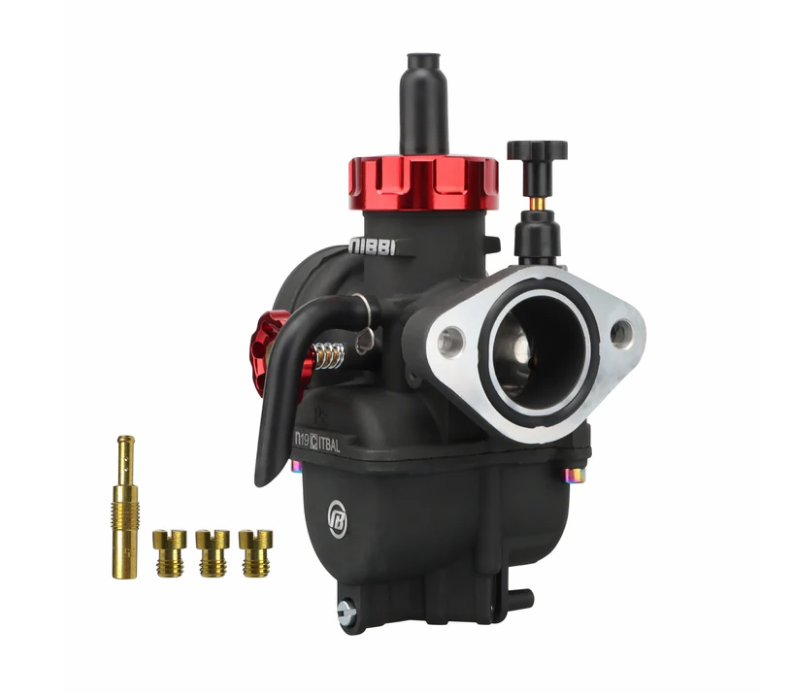

• Jet kit consisting of 92, 95, and 100 main jets and a 30 pilot jet
• Stock main jet #98
• Stock pilot jet #32

Tech:

• Takes Keihin round jets series 99101-393 - TBW0327

• Takes Keihin 21 series pilot jets are used in PJ, PWK, PD, and 20-32mm PE carbs - TBW0363
• Takes UNI UP-4182AST 44.5MM(1.75IN) air filter

• Takes UNI PT-3429 44.5MM(1.75IN) compact air filter
