Keihin Fuel Injector with 110cc Flow Rate

Vital Information
Price$65.95
Part No CJR-1780 | 16450-B06-00F
Location110B
Stock Level 7 Left

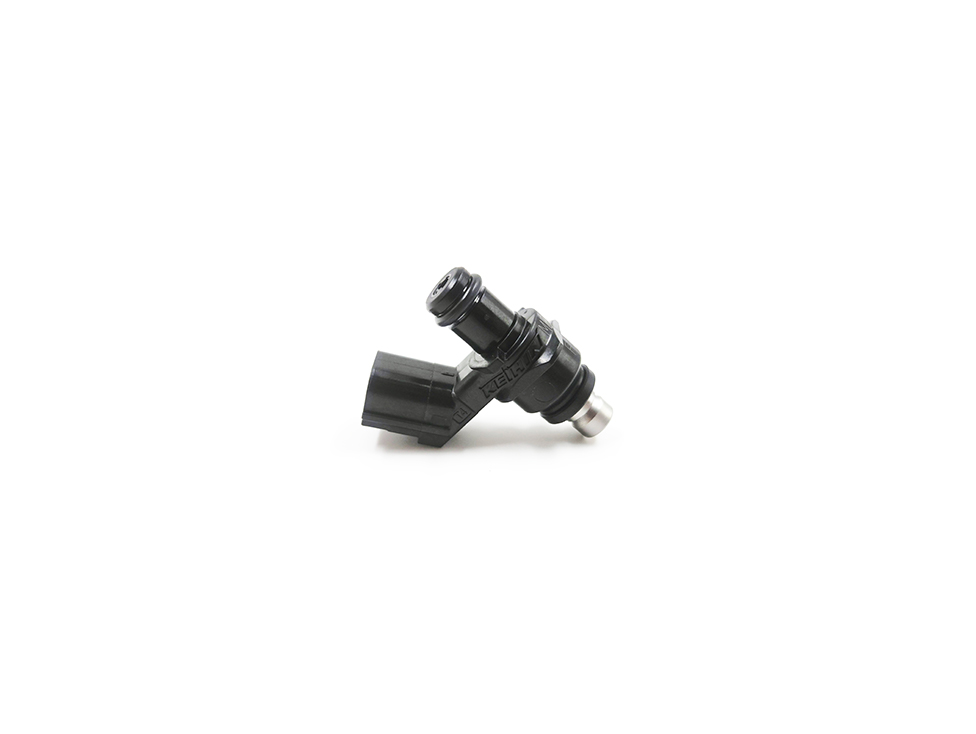

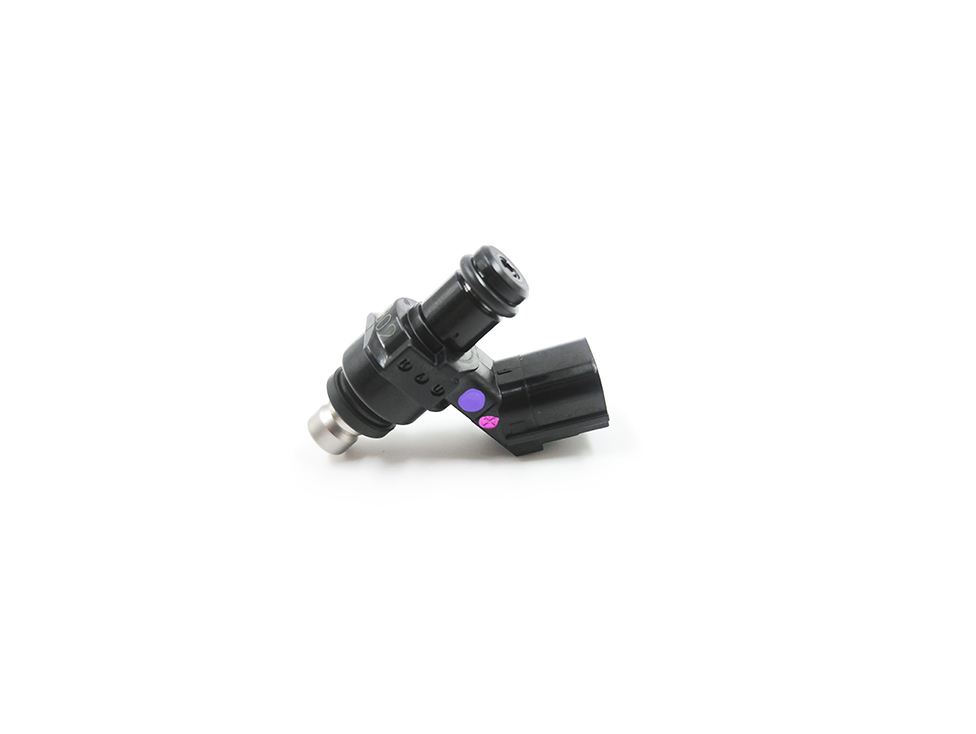

Keihin Fuel Injector with 110cc Flow Rate

This is a good size upgrade fuel injector to be used in connection with a 24mm throttle body and billet intake manifold on stock bore CRF110 or 132cc big bore

The flow rates of the injectors are measured in cc/min. It has no correlation to the displacement of the bike.
Each injector has been flow tested in house to provide accurate measurements for implementing injector flow CC rate/settings into your ECU. Those measurements are listed below:

Note:
Stock injector flow - 80cc flow rate (CRF110F, CRF125F, Grom, Monkey, Cub, CT125)
Upgraded Injector - 110cc flow rate (6-hole)

Application:

  • CRF110 - 2019-Present


Note:
HONDA MONKEY GROM CRF125 and CRF110 2019 - Present fuel injected models
ECU will require a flash/tune to prevent a lean condition and possible damage to your engine.
CJR cameronjonesracing.com
provides this service and can also adjust the tune based on your other modifications.
