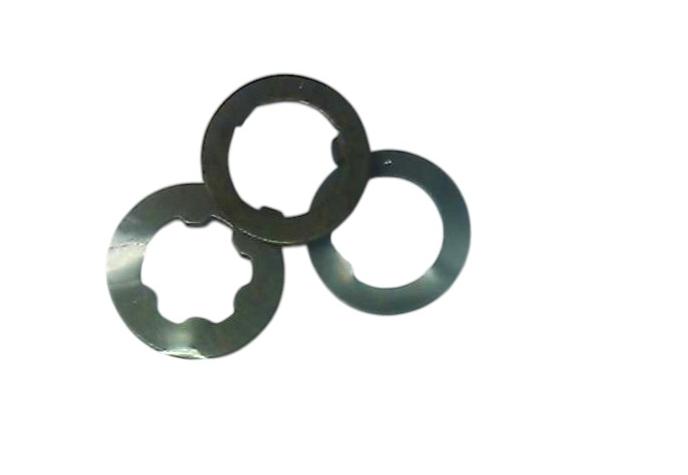

Clutch Washer Set
for Rear Clutch

3-piece Clutch Washer Set with internal washers for Rear Clutch type engines.

How to re-install the clutch washers / Plate on a rear clutch motor

With the clutch basket in place:
1)Place the thicker slotted washer on the main shaft and turn 1/8 turn to expose the slots in the shaft
2)Place the thinner pronged washer points down or tward the engine
3)Place the Hub with threaded towers down / centered
4)Stack plates starting with fiber first , aligning inner tabs
5)Place hub down , washer , tighten lock nut

Mechanical Theory:
The Basket can spin freely on the main shaft
and the hub is locked to the main shaft
the 2 only connect via the friction of the clutch plates
