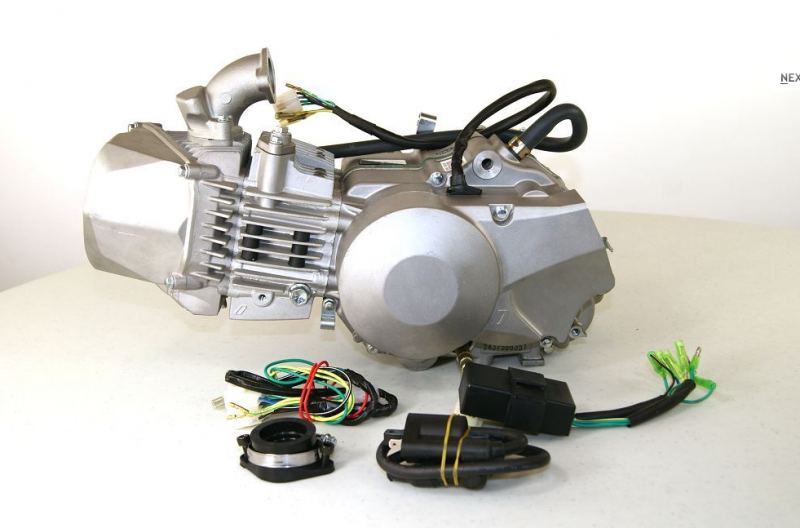

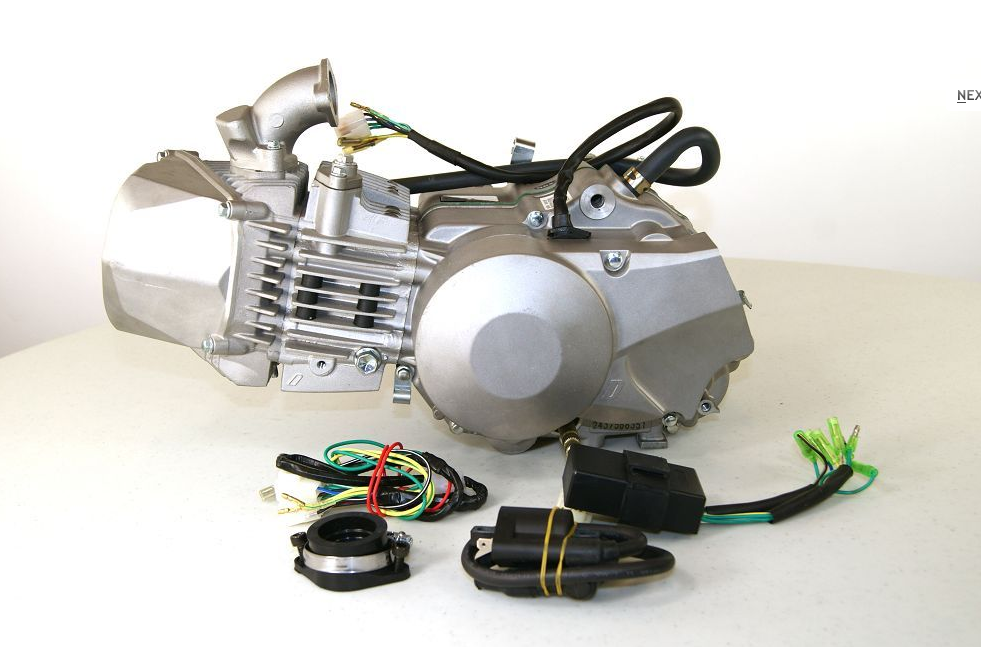

Daytona Anima 190cc FLX Engine

Vital Information
Price$1,338.00
On Sale $1,199.00
Part No WHS-9107
Stock Level 3 Left
Choose Options

The DAYTONA 190-FLX!

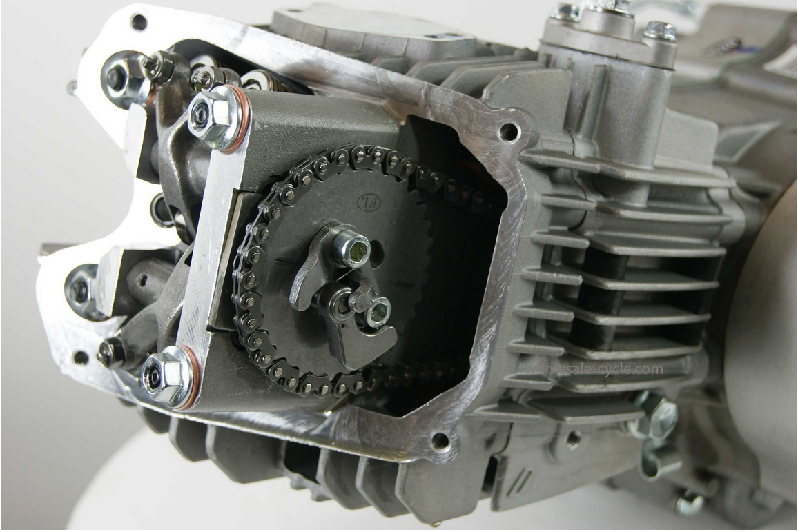

This 4 valve, 62mm bore x 62mm stroke engine is the newest edition directly from Daytona Motor Co. The new FLX-190 comes stock with an updated close ratio transmission, an AUTO-DECOMPRESSION CAMSHAFT and reinforced crankcases.
The FLX motor is manufactured and assembled as a 190 at the Daytona factory.

Engine Includes:

  • (1) Daytona FLX 190 engine with Lighting output stator
  • (1) Intake manifold
  • (1) Wire Harness
  • (1) CDI: ( 4 selectable timing settings & 3 selectable Rev Limiter setting)
  • (1) Ignition Coil
  • (1) Intake manifold carb boot

*New Updated Features!:

  • Improved decompression feature
  • Reinforced crankcase design
  • New clutch with new forged gear
  • Improved CDI with a max 12900 RPM limit

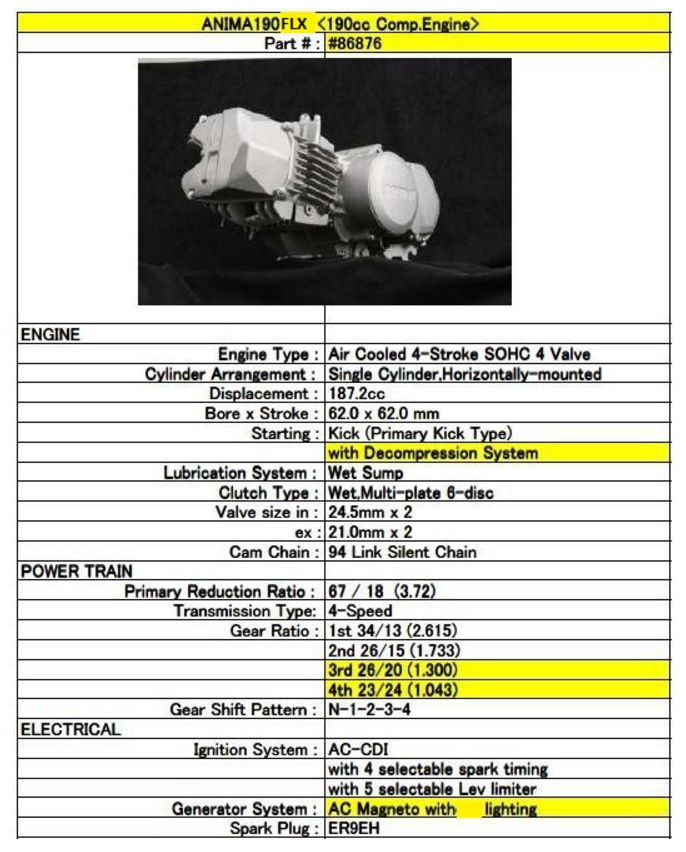

ENGINE
Displacement190cc
Engine TypeAir Cooled, Single-Cylinder, 4-valve, 4-stroke
Bore/Stroke62mm x 62mm
Final DriveChain
Fuel Delivery
FuelUnleaded / 91 Octane
Recommended Engine Oil10W-40 Petroleum Based (Nonsynthetic)
IGNITION
Kick StartYes
Electric Startno
CDIYes
Auxiliary Output (lighting)Yes
TRANSMISSION
Transmission4-Speed Manual
Shift-PatternFour-speed Transmission: N-1-2-3-4
ClutchRear 6 plate manual

Users manual available here http://daytona-global.com/products/pdf/85969.pdf

*Daytona crate engines do not come with any warranty*

 Replacement Spark Plug: NGK 8MM SPARK PLUG FOR 4V HEAD - DAYTONA ANIMA 150/190 Part No 2-ER9EH

IMPORTANT ENGINE STARTING INFORMATION

  • You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
  • Turn on Both Fuel and Choke
  • DO NOT open the throttle (do NOT turn the throttle)
  • Move the starter down until it gets stiffer, your looking for top dead center
  • Let the starter come back up and give a full strong swift kick ALL the way thru
  • REPEAT (If necessary)
  • DO NOT KICK RAPIDLY
  • When warm just do not use the choke

Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG

Available Options:

Air Filter:

Carb Choice:

Exhaust Gasket:

Kicker:

Shifter:

Shipping:



Since 2004, every purchase from TBolt USA includes access to technical support
from our staff of experts and our online Pit Bike Technical Info Database!
We have all necessary support parts on hand.
Most orders ship same, or next business day, unless otherwise noted above.
