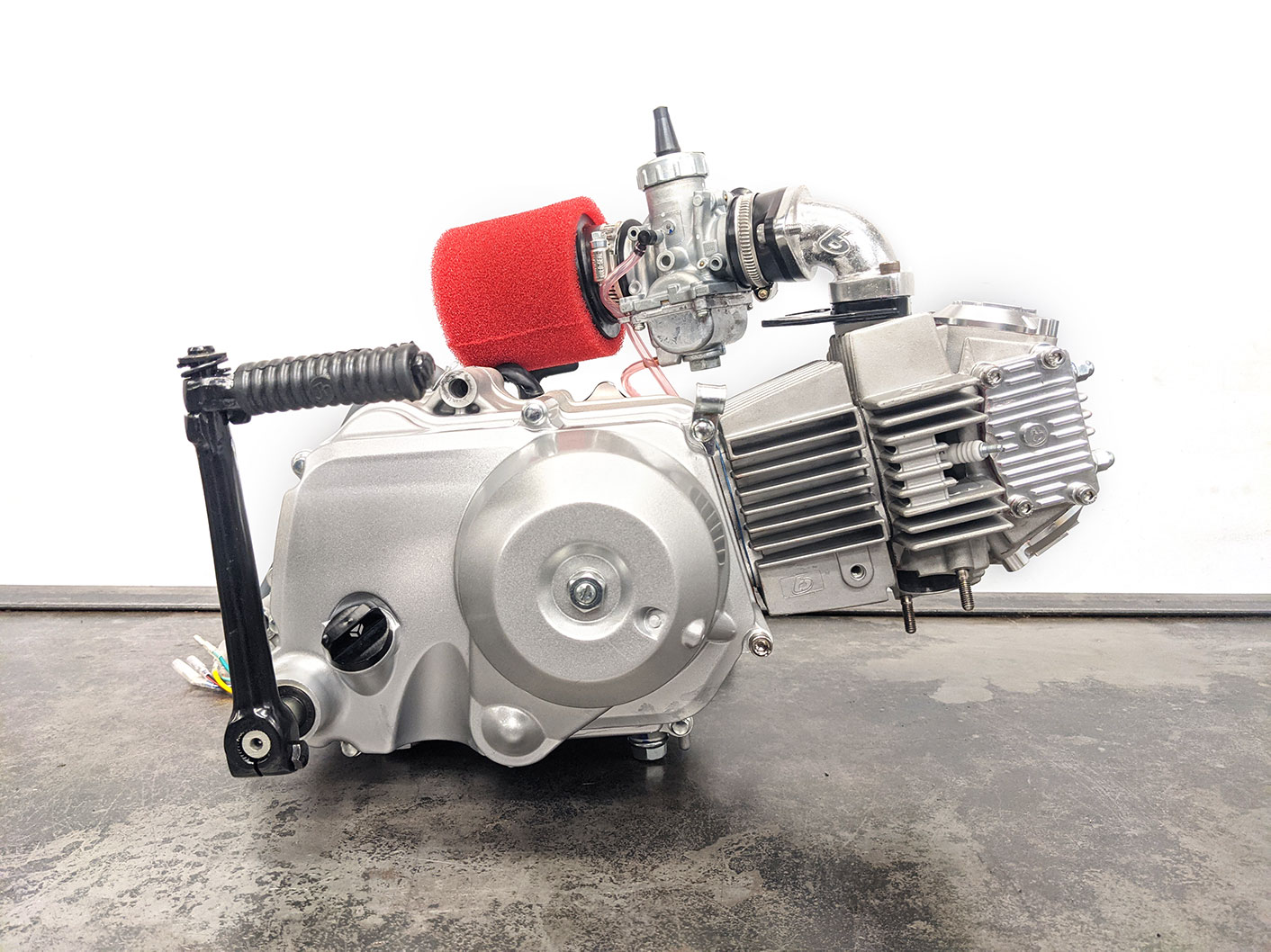

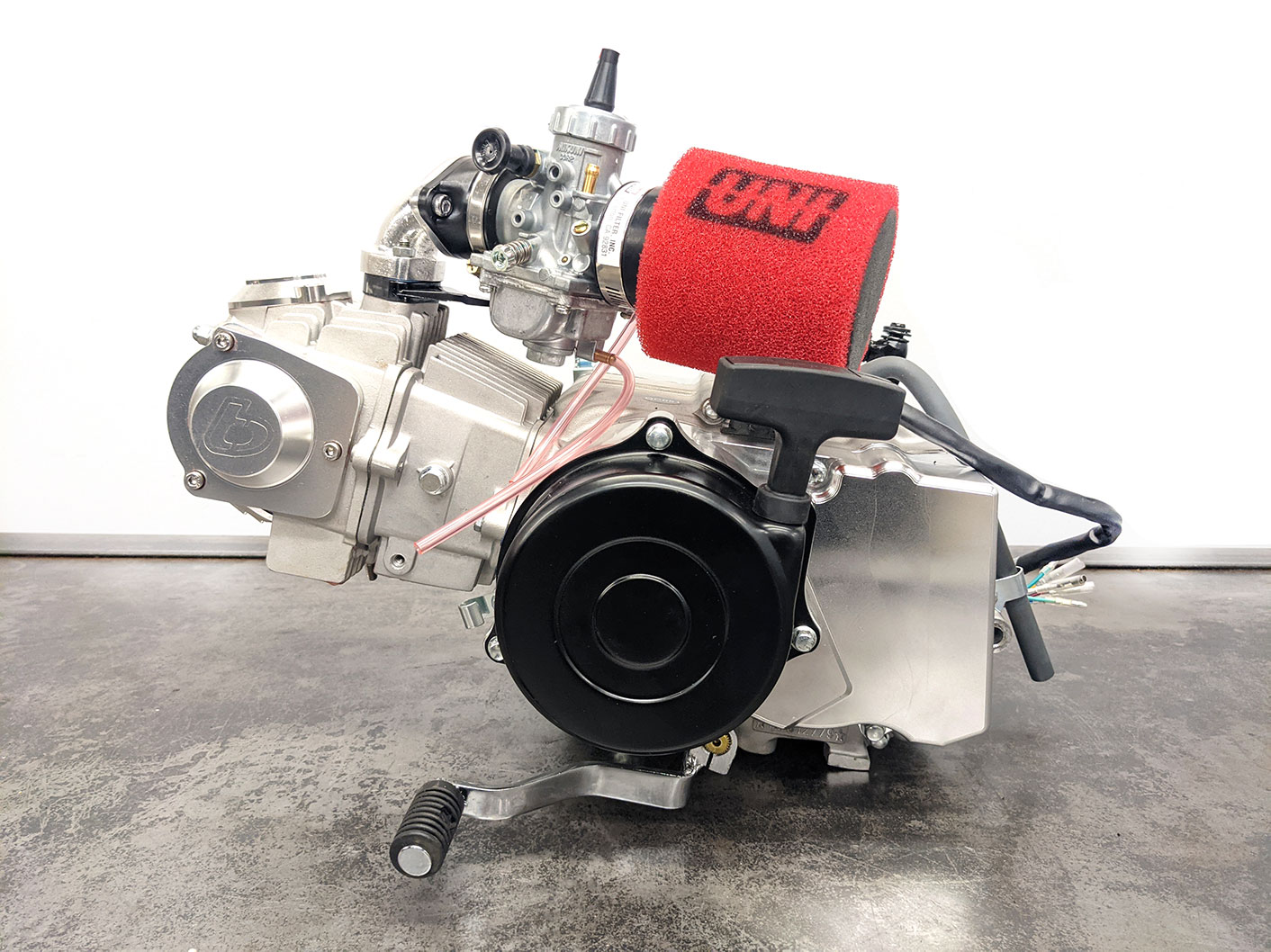

Works - Piranha 114cc Semi-Auto V2 Performance Engine w/ Pull Start

Vital Information
Part No TRC-0396
Stock Level Out of Stock!
Want an email when we get this back in?
Get on the List

NOTE: Each engine is built to order. Please allow 1 week lead time before the engine can be shipped.

Works engine build!!

Key Features:

  • Ready to rip
  • Added Power
  • Lower Weight
  • 50% Stronger clutch
  • Pull starter for ATC 70 and other unique builds!
  • Approximately 38lbs. with oil

´╗┐Build includes:

  • Base Engine Piranha 90cc Semi-Auto Engine - WHS-1784
  • Added 114cc V2 roller rocker bore kit w/ VM26 Mikuni carburetor - TBW9116
  • Added TB H-D Auto Clutch Kit - TBW0961
  • Red Billet dipstick WHS-0973
  • Billet pull start assembly - WHS-3196

Other parts included:

  • CDI - TRC-0082
  • Ignition coil - TRC-0410
  • Wiring harness - TRC-0116
  • Kicker - TBW1082
  • Shifter - TBW1026
  • Kill button - TRC-1303
  • Air filter - UNI-PT-3429
  • Front drive sprocket 420 pitch 16T - TRC-0040
  • T4 throttle cable twist and thumb - TRC-5565

Displacement 114cc
Engine Type Air Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke 47mm x 54mm
Final Drive Chain
Fuel Delivery VM26-606 26mm Mikuni
Fuel Unleaded / 91 Octane
Recommended Engine Oil 10W-40 Petroleum Based (Nonsynthetic)
Kick Start Yes
Electric Start No
Auxiliary Output No
Transmission 4-Speed Semi Auto
Shift-Pattern Four-speed Transmission: N-1-2-3-4 (Four Up)
Clutch Semi-auto (no hand clutch)

When upgrading your Honda XR50/70 ,CRF50/70 to this engine you
may want to use order aftermarket footpeg mounts and tank spacers.
Also we suggest using an aftermarket exhaust to obtain maximum performance.

All of these items are available at TBoltUSA.com
