Piranha 125 Engine

Vital Information
Price$361.00
Part No WHS-2195
Stock Level In Stock
Choose Options
1

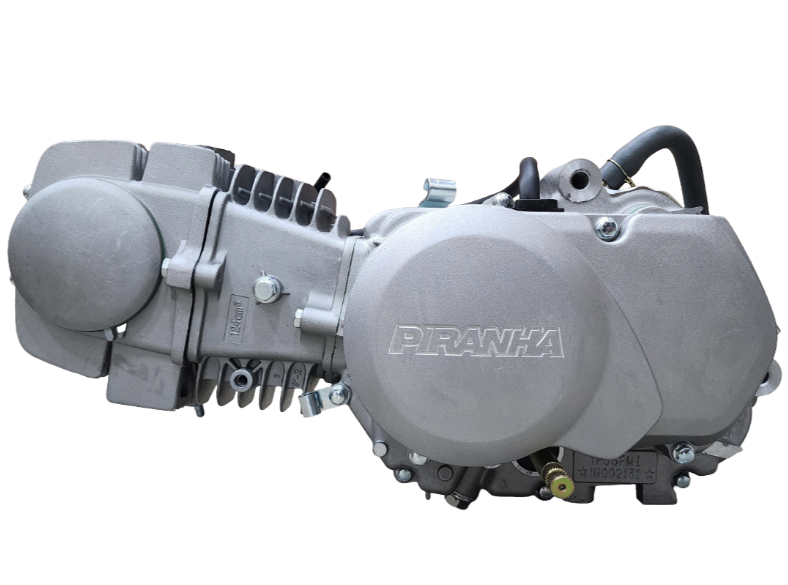

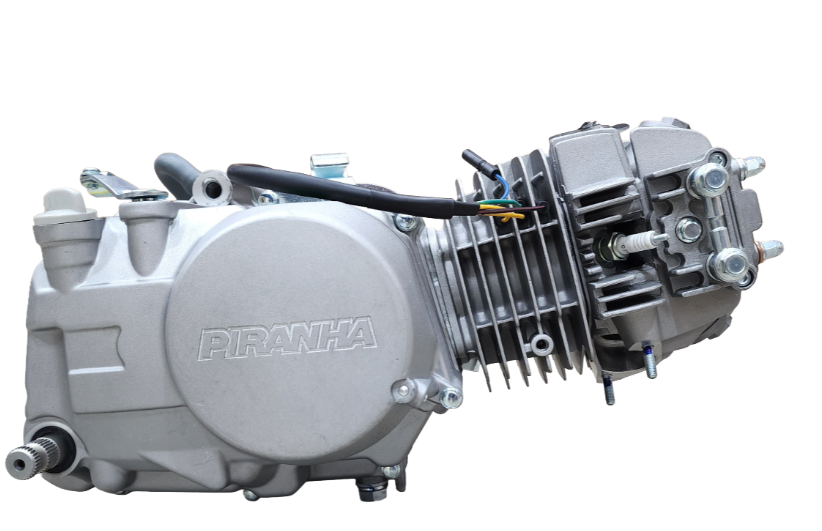

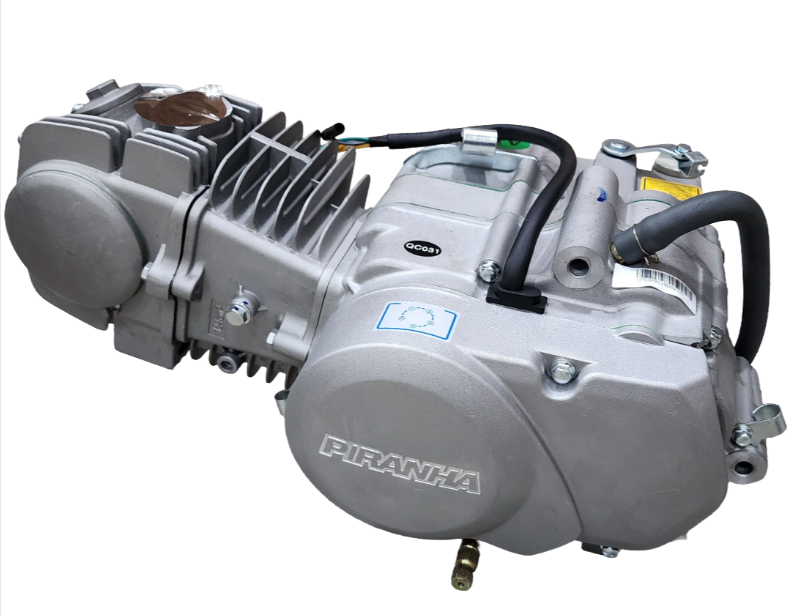

Piranha 125cc Engine
Super sturdy and Very strong running engine

Front Drive Sprocket Included

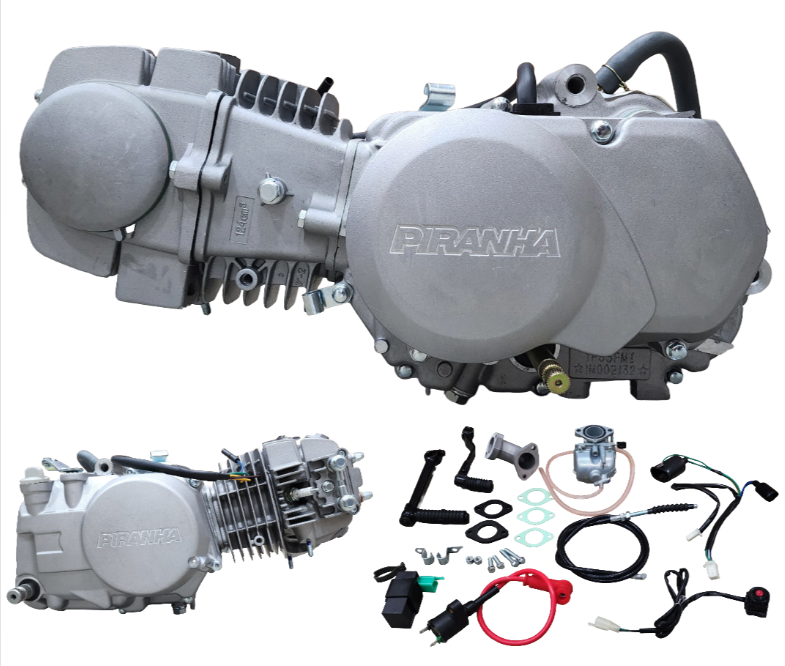

See picture for parts included , only as pictured.

Great Replacement engine or for builds & Projects.

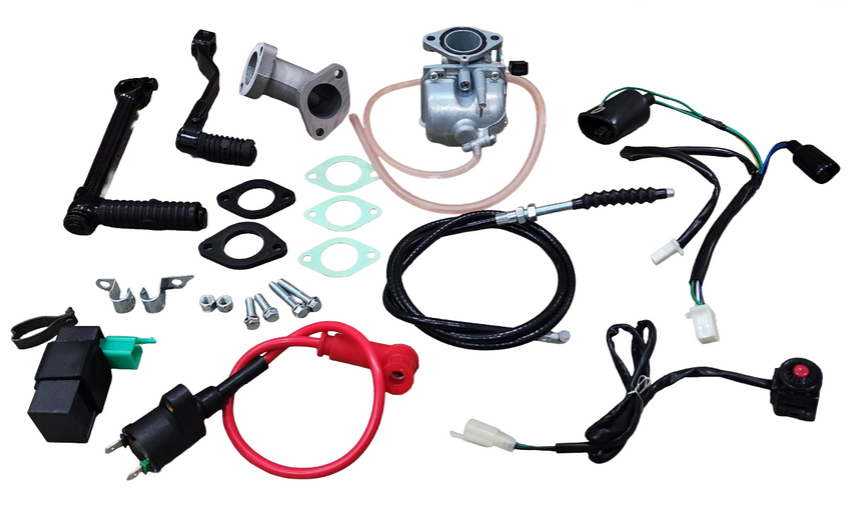

Includes:

  • Engine
  • Carb
  • Intake
  • CDI
  • Coil
  • Harness
  • Kicker
  • Shifter


Recomended:
T BOLT CLUTCH LEVER TRC-0140
CLUTCH CABLE (REAR CLUTCH) WHS-1427 or TRC-0331

Lighting set ups:
VOLTAGE REGULATOR SIMPLE HARNESS TYPE 1 TRC-0797
VOLTAGE REGULATOR / RECTIFIER 6V TYPE 1 TRC-0503
VOLTAGE REGULATOR / RECTIFIER 12V TYPE 1 TRC-0127

Recomended for your application:

Honda XR50/CRF50:
CRF50/XR50 TANK SPACER KIT TRC-1955
PEG MOUNT WITH PEGS SET UP TRC-4958

Honda XR70/CRF70:
PEG MOUNT WITH PEGS SET UP TRC-4958

Honda CT70:
PEG MOUNT WITH PEGS SET UP TRC-4958
DUAL FEED PETCOCK ATC70 CT70 Z50 TBW0133

Honda Z50:
TBPARTS RACE PETCOCK Z50 69-78 TBW0355
TBPARTS 12 WAY ROTATING SPACER 26MM TBW1020

Honda ATC70:
TBPARTS 12 WAY ROTATING SPACER 26MM TBW1020
DUAL FEED PETCOCK ATC70 CT70 Z50 TBW0133

Engine
Displacement 124cc
Engine Type Air Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke 52.4mm x 57mm
Final Drive Chain
Fuel Delivery 22mm
Fuel Unleaded / 93 Octaine
Reccomended Engine Oil 10W-40 Petroleum Based (Nonsynthetic)
Ignition
Kick Start Yes
Electric Start no
CDI Yes
Auxillary Output Yes
Transmission
Transmission 4-Speed Manual 4Up
Shift-Pattern Four-speed Transmission: N-1-2-3-4
Clutch Rear 5 plate manual

Note:
We suggest using an aftermarket exhaust to obtain maximum performance.



IMPORTANT ENGINE STARTING INFORMATION

  • You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
  • Turn on Both Fuel and Choke
  • DO NOT open the throttle (do NOT turn the throttle)
  • Move the starter down until it gets stiffer, your looking for top dead center
  • Let the starter come back up and give a full strong swift kick ALL the way thru
  • REPEAT (If necessary)
  • DO NOT KICK RAPIDLY
  • When warm just do not use the choke

Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG

For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745

One more thing:
At times it helps to just crack the throttle a tiny bit to let air in.

Available Options:

Clutch Cable:

Exhaust Gasket:

Kill Button:

Shipping:

Uni Air Filter:



Since 2004, every purchase from TBolt USA includes access to technical support
from our staff of experts and our online Pit Bike Technical Info Database!
We have all necessary support parts on hand.
Most orders ship same, or next business day, unless otherwise noted above.
