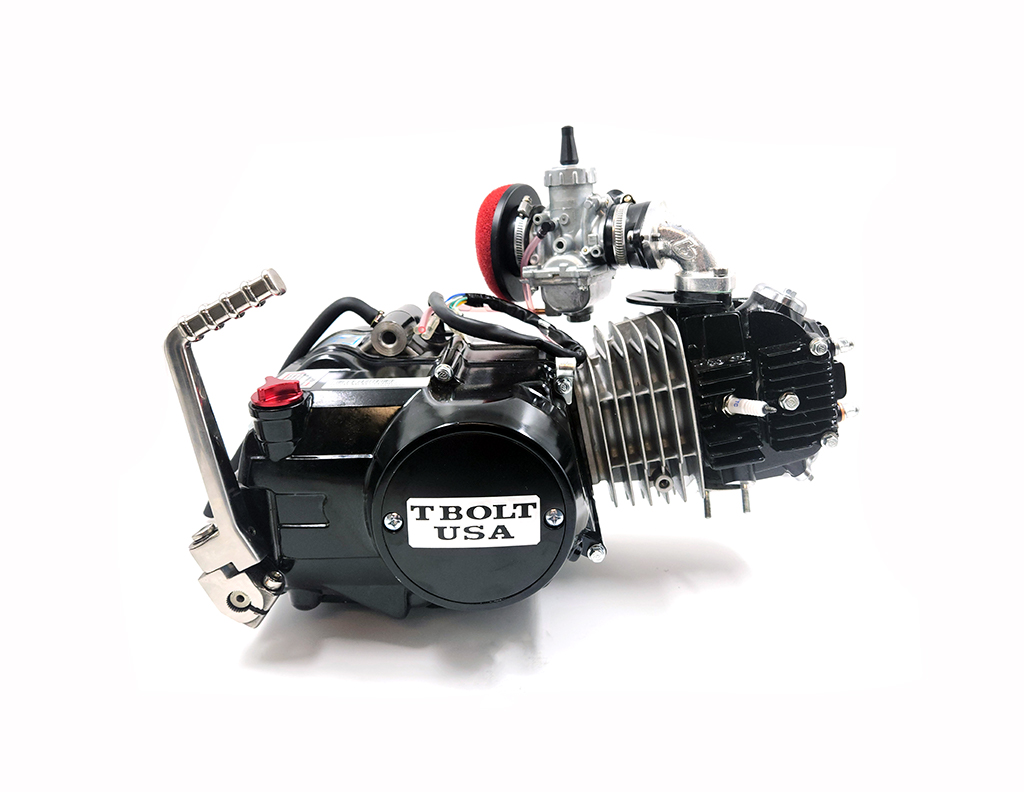

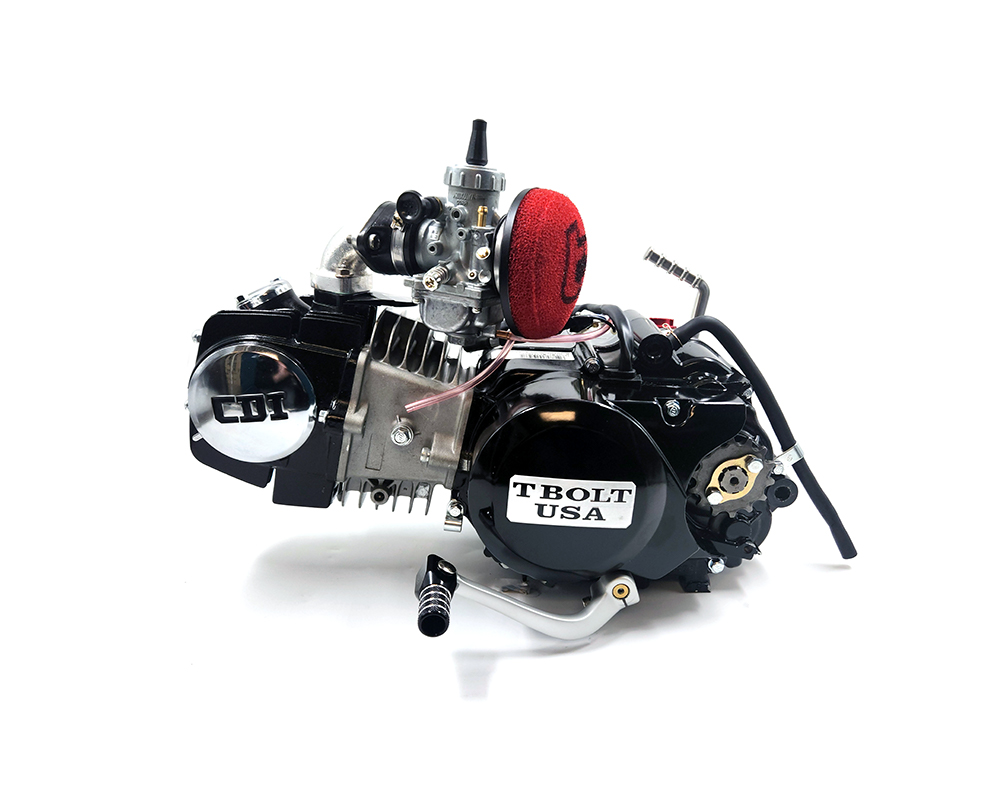

Works engine build
Ready to rip
Added Power
Lower Wieght
50% Stronger clutch
Base Engine Lifan 125cc Semi-Auto Engine w/electric
Added 141cc aluminum cylinder big bore kit Part No. TBW9067
Added TB 9004 Race Cam Part No: TBW9004
Added TB H-D Auto Clutch Kit Part No: TBW0961
aprox 39 lbs with oil
Front Drive Sprocket Included
(Takes Larger Shaft 20mm x 17mm Type)
Includes:
Engine
Intake
CDI
Coil
Harness
Kicker
Shifter
| Displacement |
141cc |
| Engine Type |
Air Cooled, Single-Cylinder, 2-valve, 4-stroke |
| Bore/Stroke |
55mmx57mm |
| Final Drive |
Chain |
| Fuel Delivery |
carb options |
| Fuel |
Unleaded / 91 Octaine |
| Reccomended Engine Oil |
10W-40 Petroleum Based (Nonsynthetic) |
Ignition
| Kick Start |
Yes |
| Electric Start |
no |
| CDI |
yes |
| Auxillary Output |
Yes |
Transmission
| Transmission |
4-Speed Semi Auto |
| Shift-Pattern |
Four-speed Transmission: N-1-2-3-4 (Four Up) |
| Clutch |
Semi auto (no hand clutch) |
Note:
When upgrading your Honda XR50/70 ,CRF50/70 to this engine you
may want to use order aftermarket footpeg mounts and tank spacers.
Also we suggest using an aftermarket exhaust to obtain maximum performance.
All of these items are availble at TBoltUSA.com
$100 Shop Labor included
IMPORTANT ENGINE STARTING INFORMATION
- You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
- Turn on Both Fuel and Choke
- DO NOT open the throttle (do NOT turn the throttle)
- Move the starter down until it gets stiffer, your looking for top dead center
- Let the starter come back up and give a full strong swift kick ALL the way thru
- REPEAT (If necessary)
- DO NOT KICK RAPIDLY
- When warm just do not use the choke
Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG
For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745
One more thing:
At times it helps to just crack the throttle a
tiny bit to let air in.
Available Options:
Carb Choice:
Shipping:
Since 2004, every purchase from TBolt USA includes access to technical
support
from our staff of experts and our online Pit Bike Technical Info Database!
We have all necessary support parts on hand.
Most orders ship same, or next business day, unless otherwise noted above.
