TBParts - Mikuni VM24 Carb Kit w/ Black Billet Throttle for TT-R110

Vital Information
Price$219.99
Part No TBW-2171
Stock Level 4 Left
1
TBparts carburetor kit with the Mikuni VM24 for the Yamaha TT-R110. This kit makes BIG power on the TT-R110 with our 130cc kit. The VM24 is 8mm larger than the stock 16mm carb so it moves a lot more air and fuel. Next our manifold is port matched for a smooth transition into the stock cylinder head. It also centers the carburetor under the frame and remains facing forward which is optimal for the best performance gains. This kit eliminates the factory “Push/Pull” throttle and cable so we include our 1/4 turn black anodized billet throttle and standard throttle cable suited for stock bars or tall bars. The included dual layer pod filter fits directly to the carburetor, the factory airbox is not reused.


Key Features:

  • Genuine VM24 carburetor for big power and smooth operation
  • Port matched manifold with hardware, gaskets, and heat sink
  • 1/4 turn billet throttle and cable for use with factory or tall bars

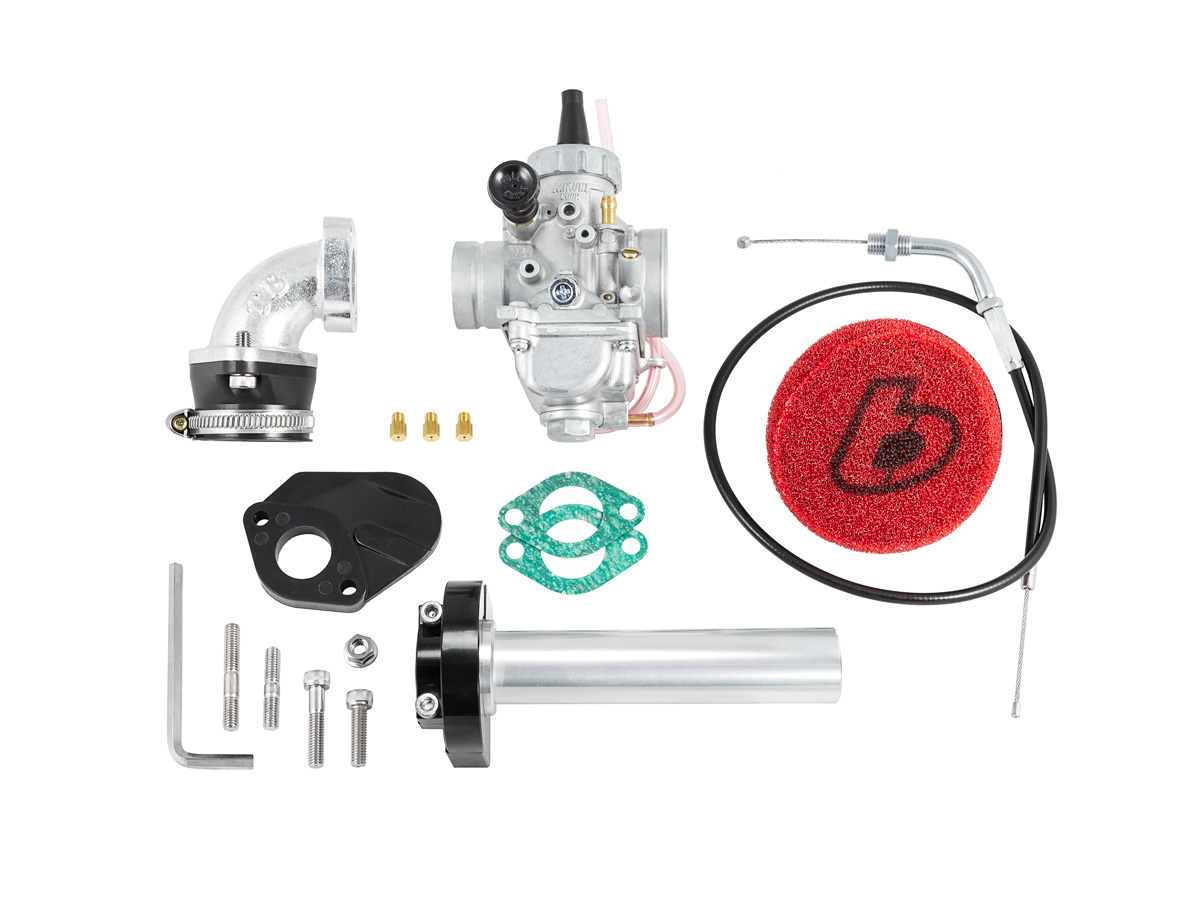

Kit Includes:

  • TBW0848 - Throttle cable
  • TBW1123 - Black billet throttle
  • TBW0316 - Intake kit
  • TBW0483 - Mikuni VM 24mm carburetor
  • TBW0477 - Foam air filter

Application:

  • TT-R110 - All years


Installation notes – We recommend the use of a Outerwear like this TBW1494 for extra filter protection. The throttle cable should exit the left side of the bike between the split frame (Do not route it under the frame or between the gas tank and frame)

Jetting – #20 pilot jet and #150 main jet are a good starting point.

  • Main Jet kit - TBW1353
  • Pilot Jet Kit - TBW1357
  • Pilot Jet Kit - TBW1356
