BASICS

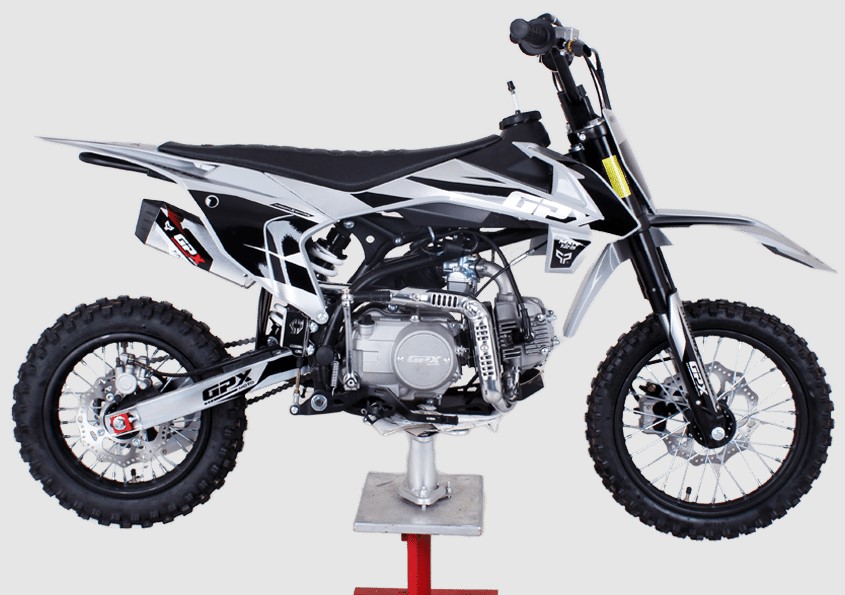

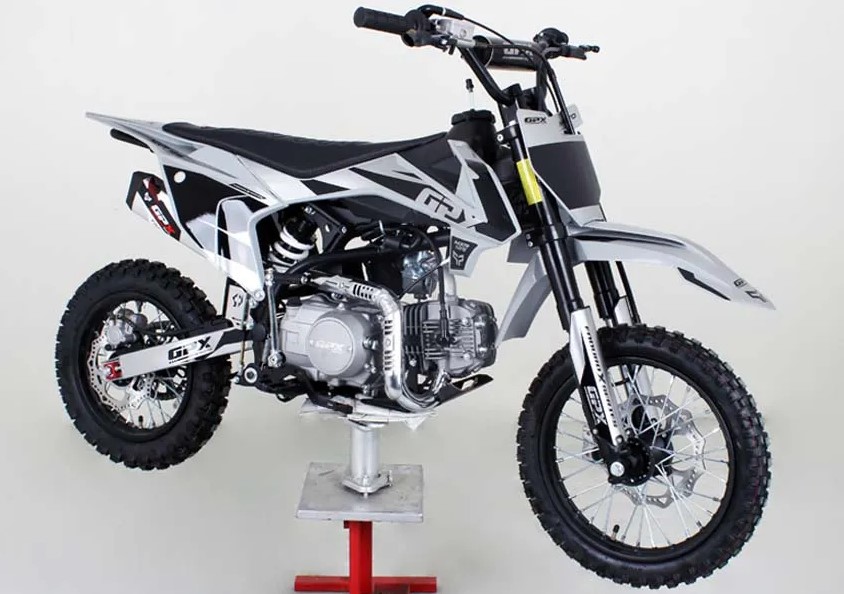

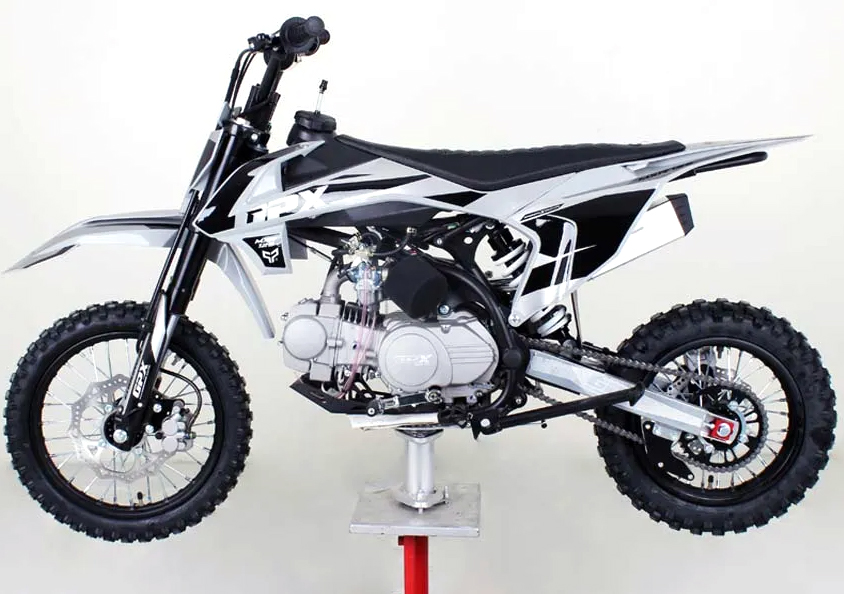

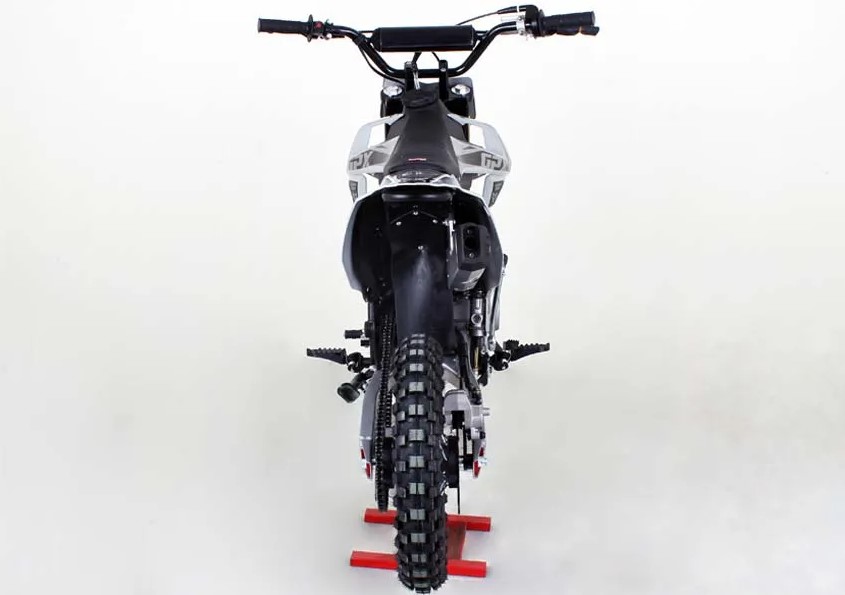

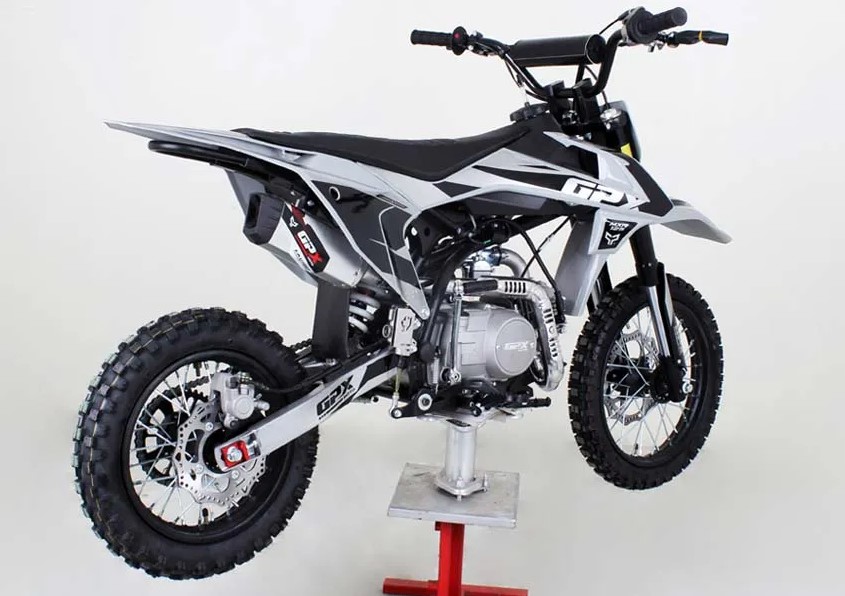

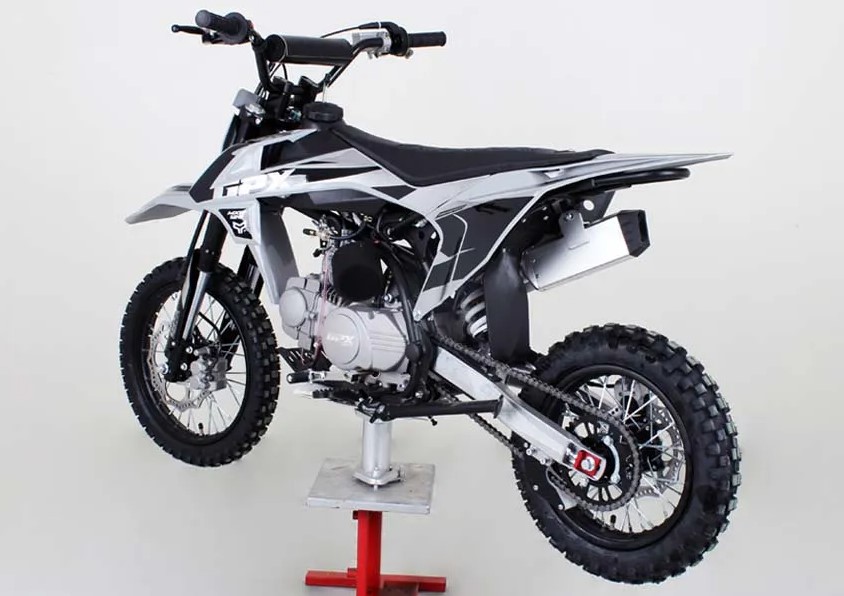

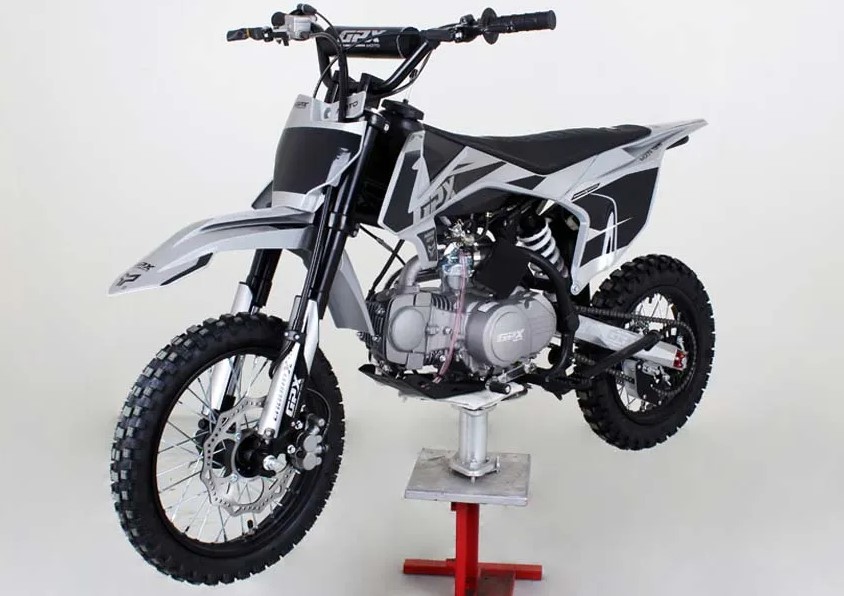

Manufacturer Pitster Pro Model MXR 125 MSRP 1649.99 Available Colors Gray
ENGINE
Displacement 125cc Engine Type Air Cooled, Single-Cylinder, 2-valve, 4-stroke Bore/Stroke 52.4mm x 55mm Final Drive 420/ 16T X 39T Fuel Delivery 22mm Fuel Unleaded Pump Gas (Run Premium When Available) Recommended Engine Oil 10W-40 Petroleum Based (Non synthetic)
IGNITION
Kick Start Yes Electric Start No CDI Yes Auxiliary Output Yes
TRANSMISSION
Transmission Close ratio 4 speed Shift-Pattern N-1-2-3-4 Clutch 5 Plate wet clutch
CHASSIS
Front Suspension GPX hydraulic telescopic oil fork Rear Suspension Chromoly, single shock w/ adjustable preload
Travel 5" Front / 5" Rear Swing Arm MX style
Frame Chromoly with cradle
Subframe Chromoly, removable
WHEELS
Front Wheel 1.4 x 14" Front Tire 2.5 x 14" Front Brake 190mm W-style rotor w/ floating caliper Rear Wheel 1.85 x 12" Rear Tire 3.0 x 12" Rear Brake 190mm W-style rotor w/ floating caliper
DIMENSIONS
Wheelbase 44.5" Seat Height 29.5" Curb Weight 145 lbs Fuel Capacity 3.8L Ground Clearance 9.5" Overall Length 61" Overall Width 27.5"
IMPORTANT ENGINE STARTING INFORMATION
You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
Turn on Both Fuel and Choke
DO NOT open the throttle (do NOT turn the throttle)
Move the starter down until it gets stiffer, your looking for top dead center
Let the starter come back up and give a full strong swift kick ALL the way thru
REPEAT (If necessary)
DO NOT KICK RAPIDLY
When warm just do not use the choke
Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG
For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745 (NOT FOR USE ON ZS190s)
One more thing:
At times it helps to just crack the throttle a
tiny bit to let air in.
