EVERY Pitster we sell is The Latest Version and
Excited about getting your bike, and setting it up? Pit Bike Shipping Info Pit Bike Set Up Info

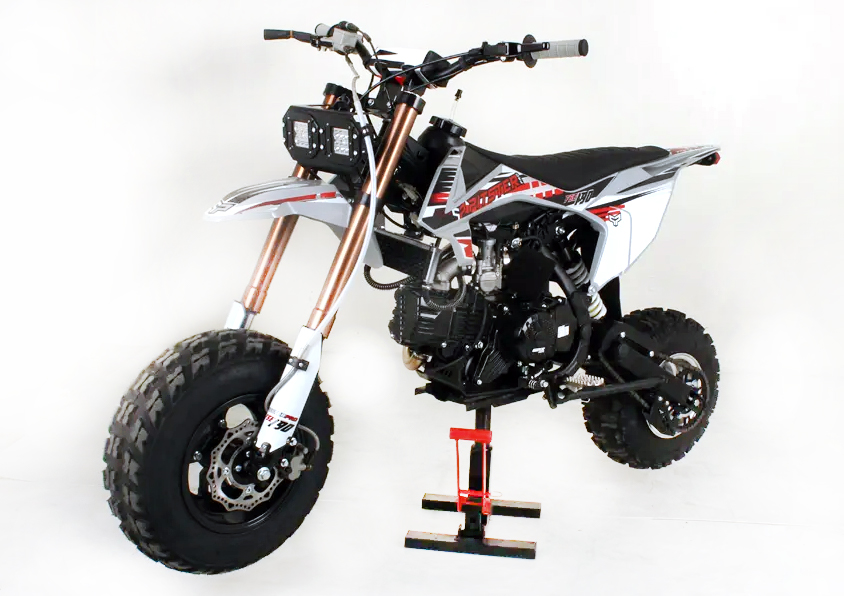

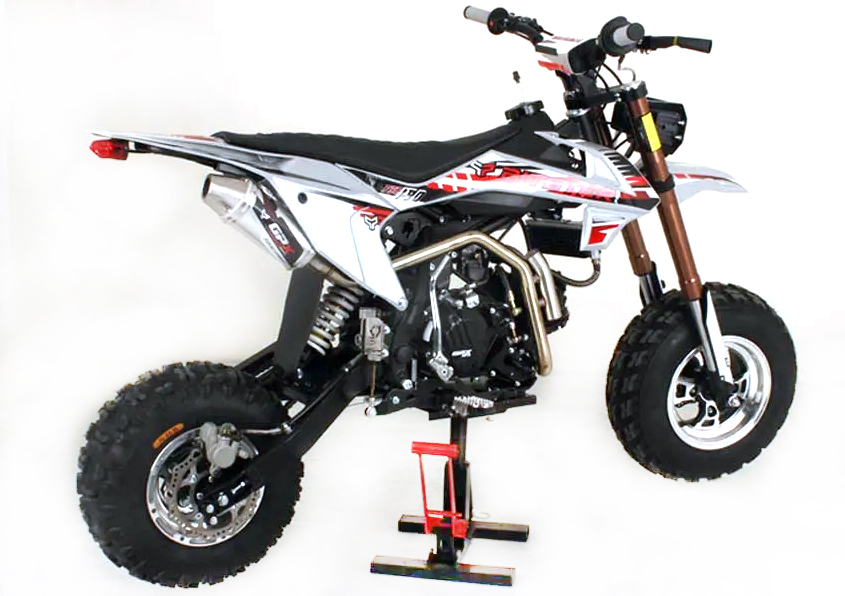

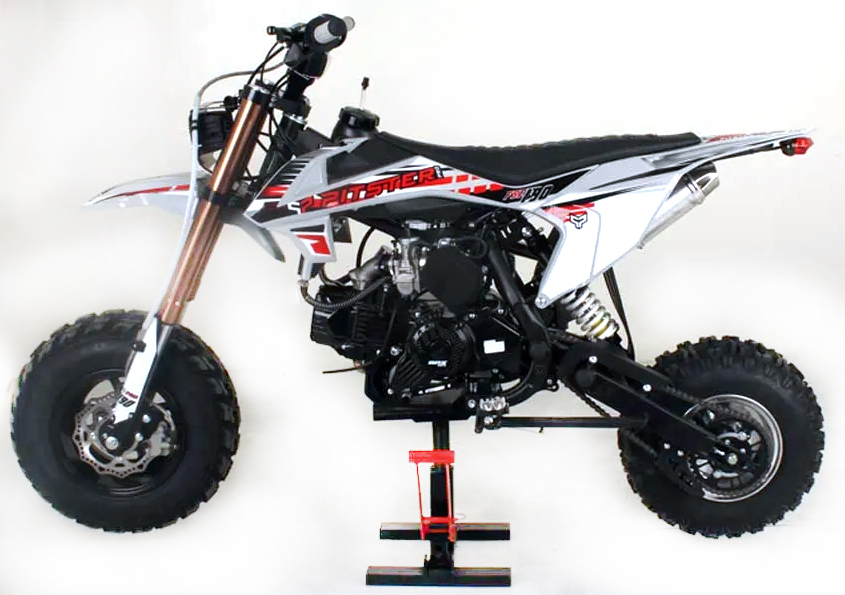

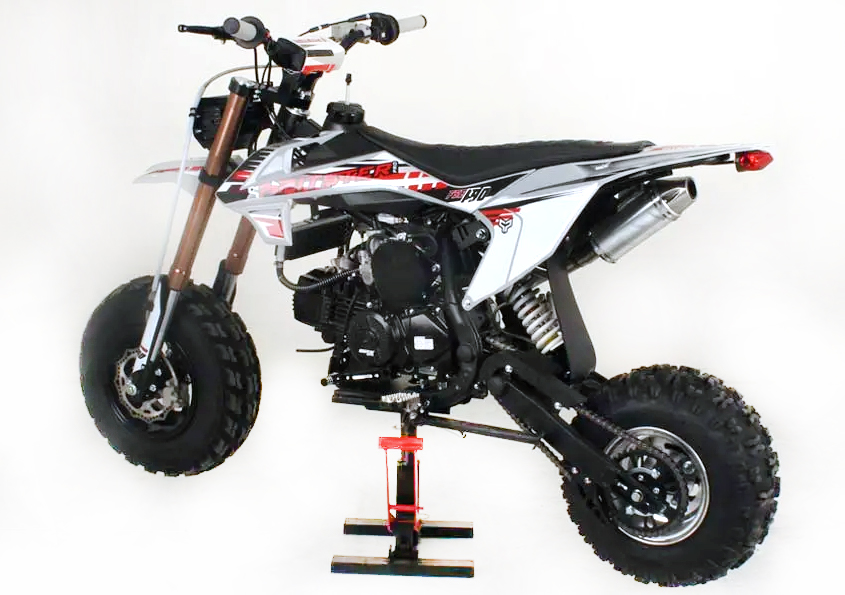

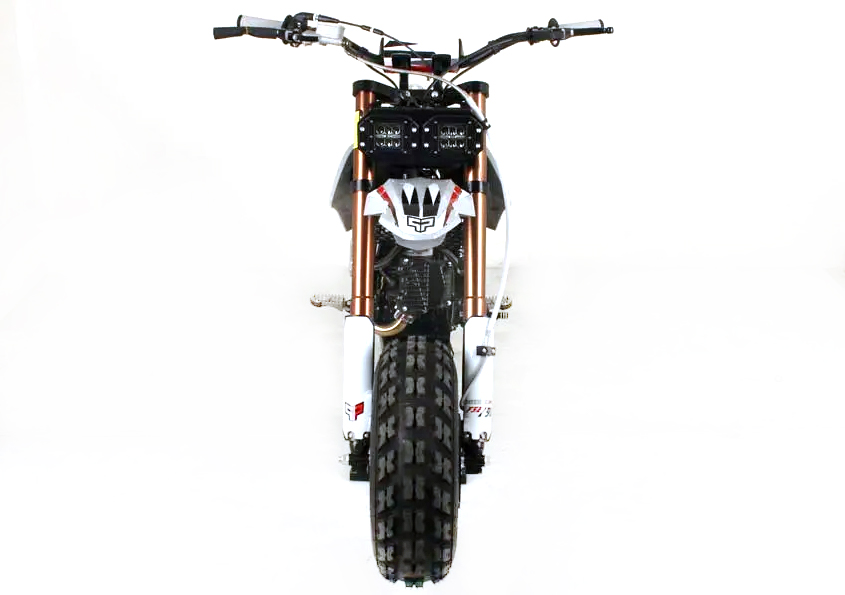

The newest offering from Pitster Pro! This FSE 190R fat tire is a phenomenal pitbike with some of the newest and best innovations on the market. It has the 5-speed 190 2V Zongshen engine with electric start! In conjunction with it's progressive travel linkage rear suspension, this fat tire is ready to conquer any track or trail!
Note: Does not come with LED headlights. Only available from Pitster Pro directly.
BASICS
Manufacturer Pitster Pro Model FSE Fat Tire 190R MSRP $3,299.99 Available Colors Grey/Red
ENGINE
Displacement 190cc Engine Type Oil cooled, 2V single cylinder 4-stroke Bore/Stroke 62mm x 62mm Final Drive Fuel Delivery 28mm carburetor Fuel Unleaded Pump Gas (Run Premium When Available) Recommended Engine Oil 10W-40 Petroleum Based (Nonsynthetic)
IGNITION
Kick Start Yes Electric Start Yes CDI Yes Auxiliary Output Yes
TRANSMISSION
Transmission Close ratio 5-speed manual Shift-Pattern 1-down, 4-up Clutch 5 plate wet clutch
CHASSIS
Front Suspension Inverted
Rear Suspension Oil filled w/ preload adjustment
Travel 5.8" front, 5.2" rear Swing Arm Alloy w/ progressive linkage
Frame Central backbone with double cradle Subframe N/A
WHEELS
Front Wheel 10 inch alloy Front Tire 19 x 6-10 Front Brake 190mm W-style rotor w/ floating caliper Rear Wheel 8 inch alloy Rear Tire 18 x 6.5-8 Rear Brake 190mm W-style rotor w/ floating caliper
DIMENSIONS
Wheelbase 48.5 Inches Seat Height 29.75 Inches Curb Weight 154.5 lbs Fuel Capacity 1.1 Gallon Ground Clearance 8.5 Inches Overall Length 61 Inches Overall Width 27 Inches
IMPORTANT ENGINE STARTING INFORMATION
You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
Turn on Both Fuel and Choke
DO NOT open the throttle (do NOT turn the throttle)
Move the starter down until it gets stiffer, your looking for top dead center
Let the starter come back up and give a full strong swift kick ALL the way thru
REPEAT (If necessary)
DO NOT KICK RAPIDLY
When warm just do not use the choke
Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG
For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745 (NOT FOR USE ON ZS190s)
One more thing:
At times it helps to just crack the throttle a
tiny bit to let air in.
Available Options:
Shipping: Flat Rate (+$275.00)
