Piranha 90cc Semi-Auto Engine
w/ carb & electrical

Vital Information
Price$534.00
Part No WHS-4061
Location000W
Stock Level In Stock
Choose Options
1

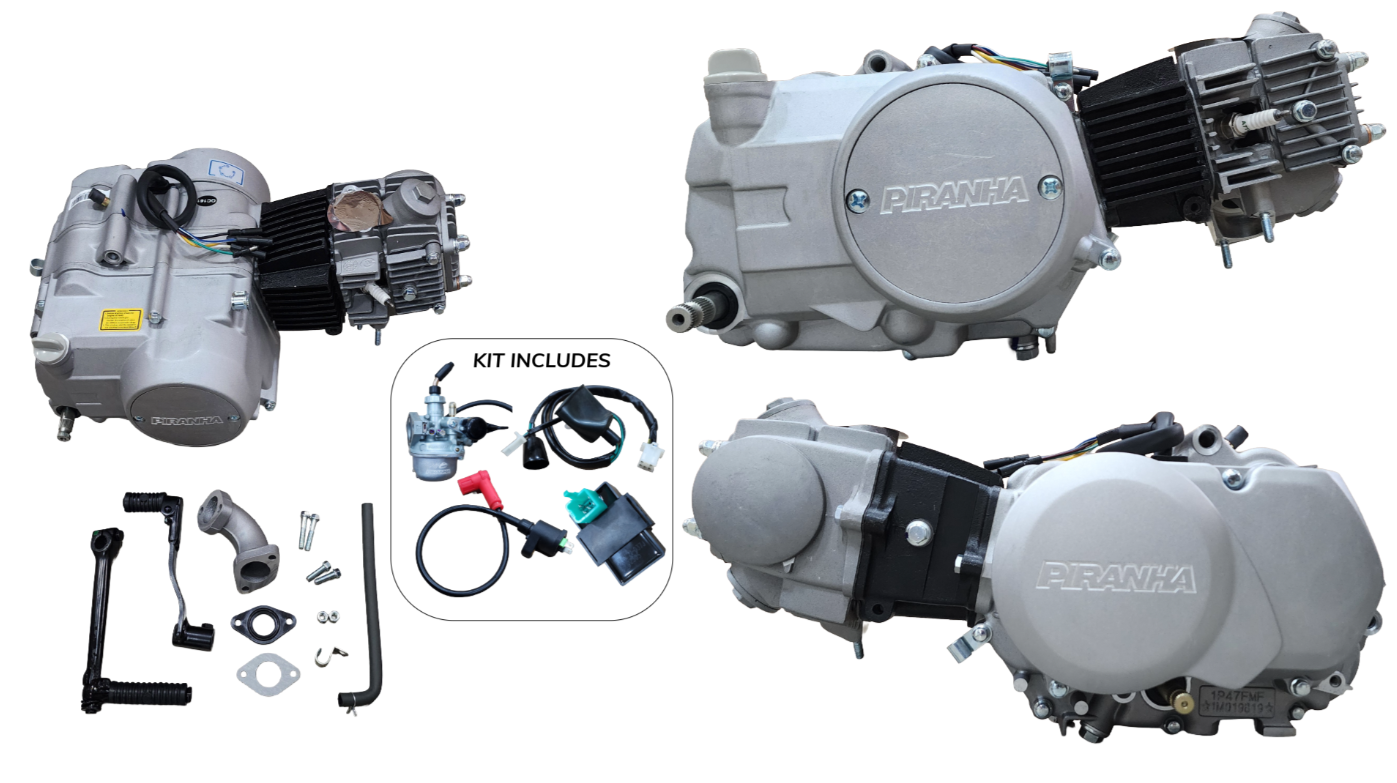

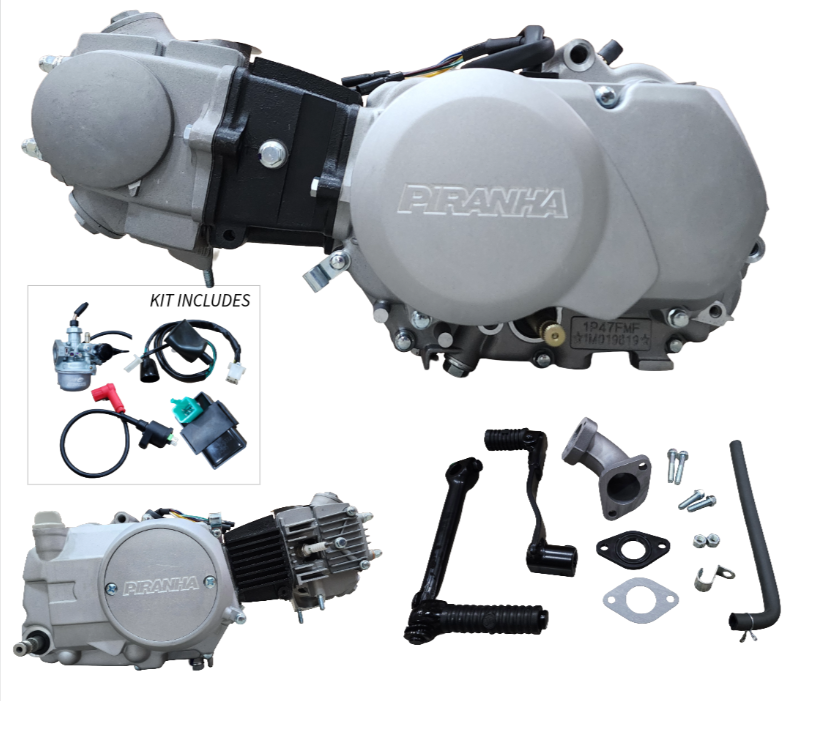

Piranha 90cc semi-auto engine w/ carb & electrical. See picture for parts included, only as pictured. Great replacement engine or for builds & projects.



Kit Includes:

  • Engine
  • Carb
  • Intake
  • CDI
  • Coil
  • Harness
  • Kicker
  • Shifter
  • Front drive sprocket


Displacement 86cc
Engine Type Air Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke 47mm x 49.5mm
Final Drive Chain
Fuel Delivery 18mm Nibbi carburetor
Fuel Unleaded / 91 Octane
Recommended Engine Oil 10W-40 Petroleum Based (Nonsynthetic)
Ignition
Kick Start Yes
Electric Start No
CDI Yes
Auxiliary Output Yes
Transmission
Transmission 4-Speed Semi-Auto
Shift-Pattern Four-speed Transmission: N-1-2-3-4 (Four Up)
Clutch Semi auto (no hand clutch)


Recommended:


For Lighting set ups:
VOLTAGE REGULATOR SIMPLE HARNESS TYPE 1 TRC-0797
VOLTAGE REGULATOR / RECTIFIER 6V TYPE 1 TRC-0503
VOLTAGE REGULATOR / RECTIFIER 12V TYPE 1 TRC-0127

Recommended for your application:

Honda XR50/CRF50:
CRF50/XR50 TANK SPACER KIT TRC-1955
PEG MOUNT WITH PEGS SET UP TRC-4958

Honda XR70/CRF70:
PEG MOUNT WITH PEGS SET UP TRC-4958

Honda CT70:
PEG MOUNT WITH PEGS SET UP TRC-4958
DUAL FEED PETCOCK ATC70 CT70 Z50 TBW0133

Honda Z50:
TBPARTS RACE PETCOCK Z50 69-78 TBW0355
TBPARTS 12 WAY ROTATING SPACER 26MM TBW1020

Honda ATC70:
TBPARTS 12 WAY ROTATING SPACER 26MM TBW1020
DUAL FEED PETCOCK ATC70 CT70 Z50 TBW0133

Note: We suggest using an aftermarket exhaust to obtain maximum performance.

All of these items are available at TBoltUSA.com

Available Options:

Air Filter:

Exhaust Gasket:
