Mikuni - 22mm Carb

Vital Information
Price$124.94
Part No WHS-0957
Location218K
Stock Level 4 Left

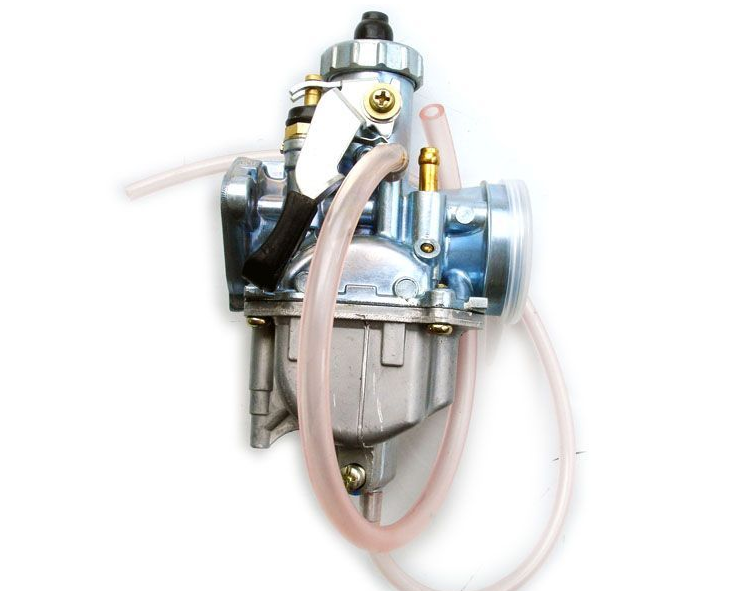

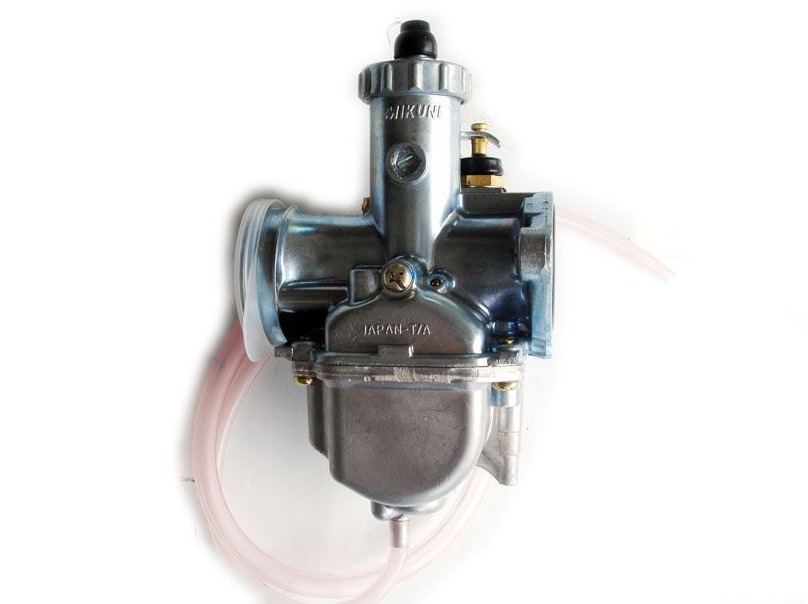

Mikuni 22mm round slide carburetor. Ready to run complete carb with jets, etc. This is a very good carb for 110cc-140cc pit bikes!


Lever up = Choke on
Lever down = Choke off

Specifications:

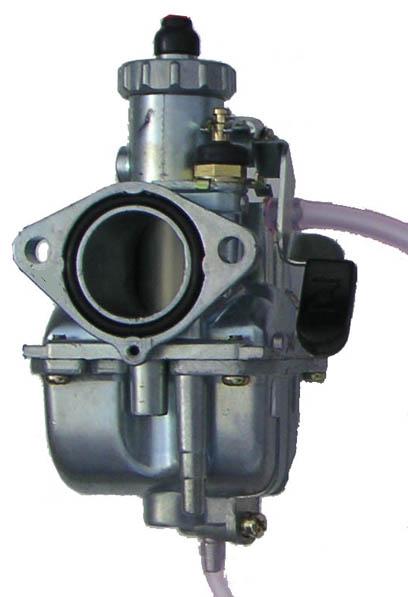

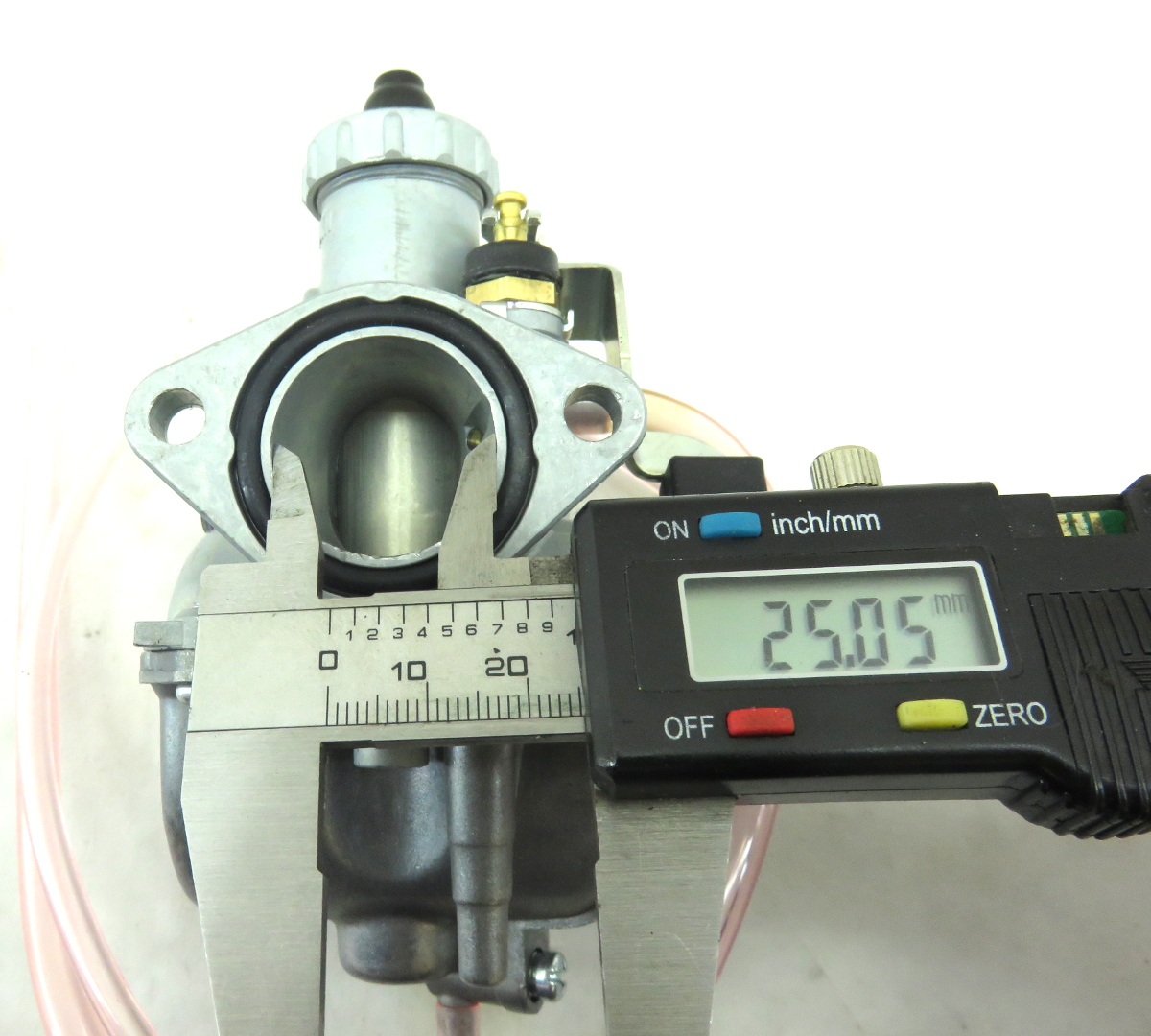

  • 2 bolt flange type intake, 25mm ID on the intake side
Takes Mikuni Jets:

  • Pilots part # vm28/486 (stock is 15)
  • Mains part # n100.604 (stock is 90)

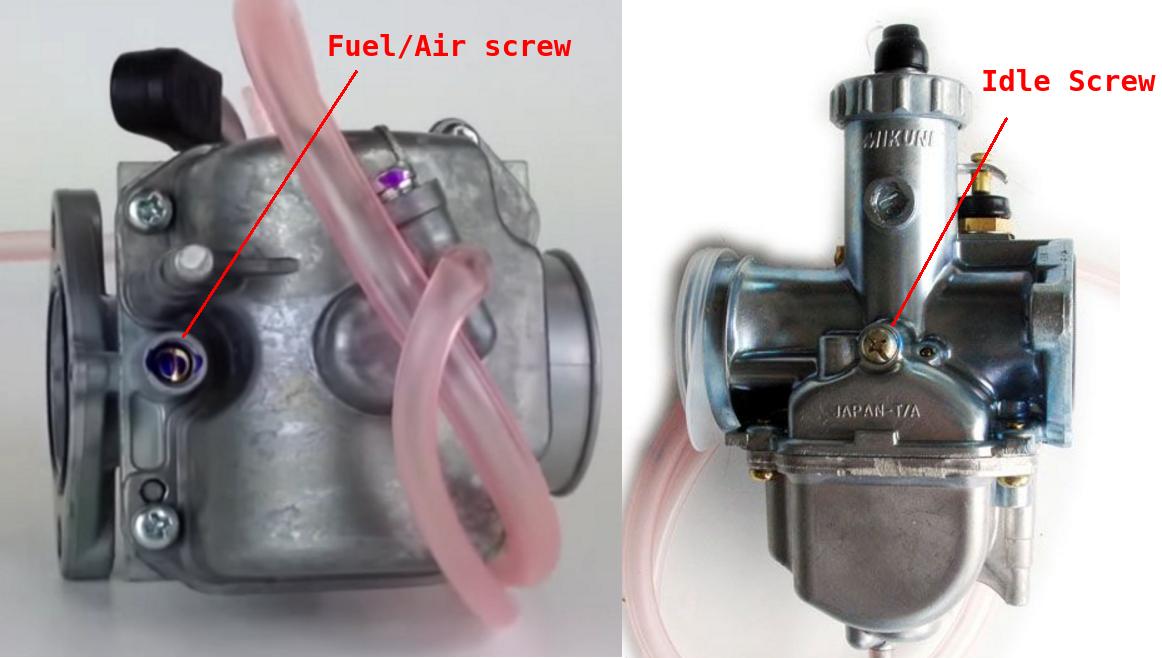

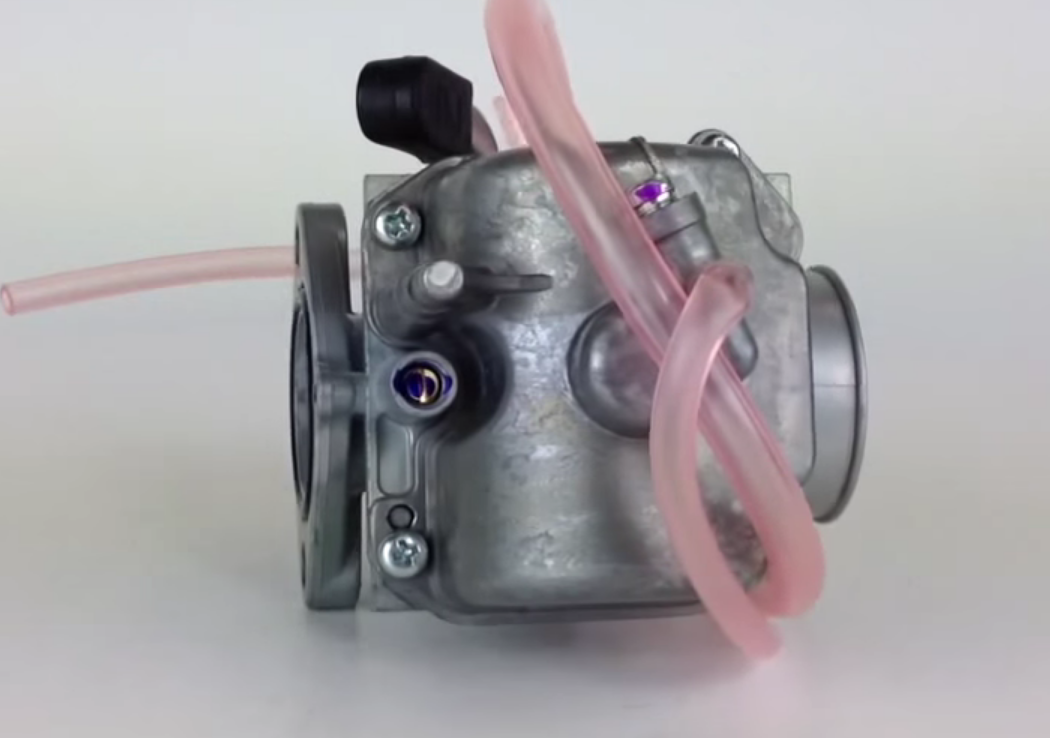

  • Brass fuel/Air screw is located bottom front (set to 2.5 turns out)
  • Sliver Idle screw is located on right side, opposite side of choke

Recommended:

  • Works fuel screw - W-66-26106
  • Jet kit - W-TRC-1370
  • 1.5in or 38mm air filter - UNI-UP-4152AST

Note: Carburetor is made in China from the Mikuni factory directly
