T Bolt USA is a Factory authorized representitive for all Pitster ATV,s
This Product does have safty and age requirments and is only to be used riders who are old enough for the units to be operated safely Please contact us Directly to handle the purchase correctly via email , phone or fax

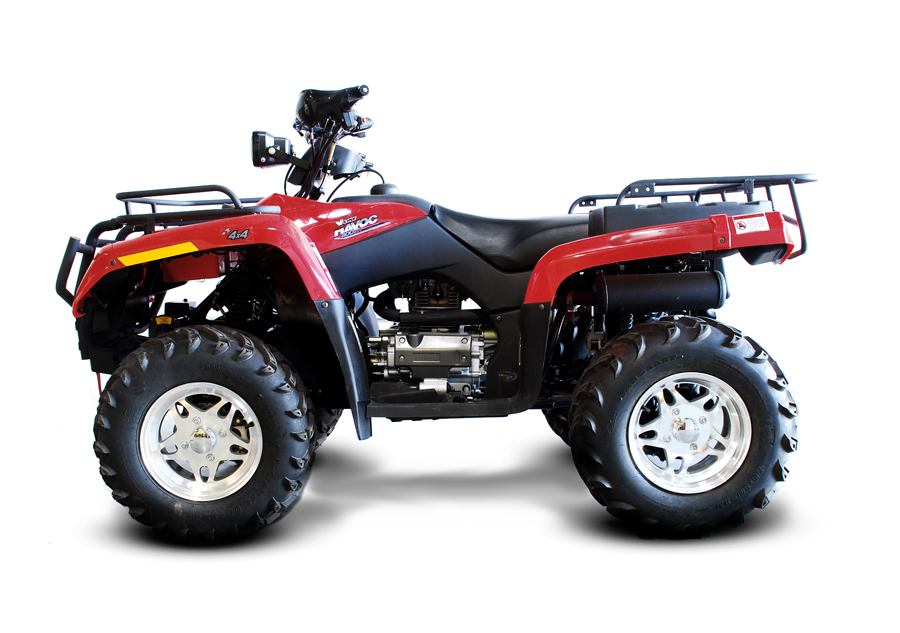

Powerful workhorse for those jobs that can't be put off until tomorrow. The V Line 400 ATV gets it done! With easy push button transmission, double a-arm front and rear suspension and heavy duty winch there is nothing holding down this ATV.
Bike Model
ENGINE
| Bore and Stroke: |
85.0 mm x 70.0 mm |
| Clutch: |
Semi-Auto electronic hand shift |
| Cooling: |
Air-cooled |
| Engine: |
397cc, OHV dry-sump longitudinally mounted single-cylinder four-stroke |
| Gearing: |
Direct front and rear driveshafts with torque-sensitive limited-slip front differential |
| Ignition: |
CDI with electronic advance - Electric with auxiliary recoil |
| Starter: |
Electric w/ back up pull |
| Transmission: |
4x4 Fully automatic hydromechanical, continuously variable, with electronic controls |
CHASSIS AND DIMENSIONS
| Color: |
Red |
| Curb Weight: |
559 lbs |
| Frame: |
Chromoly |
| Fuel Capacity: |
3.8 gal. |
| Ground Clearance: |
7.2 inches |
| Overall Length: |
80 in |
| Overall Width: |
45 in |
| Wheelbase: |
49 in |
SUSPENSION
| Front: |
Independent double a-arm; 5.9 in. travel |
| Rear: |
Independent double a-arm; 5.9 in. travel |
WHEELS AND TIRES
| Front Tire: |
24 x 8-12 |
| Front Wheel: |
8" Alloy |
| Rear Tire: |
24 x 10-11 |
| Rear Wheel: |
10" Alloy |
