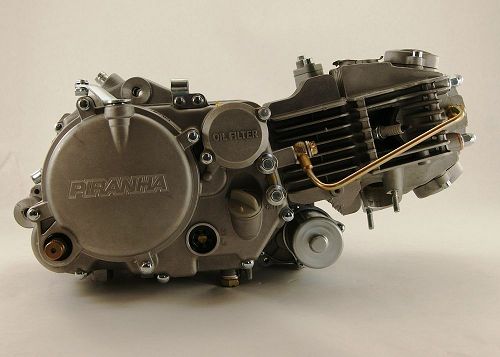

Piranha 150cc
Electric Start with Honda Exhaust and Intake ports
Accepts all Honda type Aftermarket Exhaust
Engine
| Displacement |
149cc |
| Engine Type |
Air Cooled, Single-Cylinder, 2-valve, 4-stroke |
| Bore/Stroke |
60mm x 53mm |
| Final Drive |
Chain |
| Fuel Delivery |
no |
| Fuel |
Unleaded / 93 Octaine |
| Reccomended Engine Oil |
10W-40 Petroleum Based (Nonsynthetic) |
Ignition
| Kick Start |
Yes |
| Electric Start |
Yes |
| CDI |
no |
| Auxillary Output |
Yes |
Transmission
| Transmission |
4-Speed Manual 4Up |
| Shift-Pattern |
Four-speed Transmission: N-1-2-3-4 |
| Clutch |
Rear 5 plate manual |
Engine Specs
Bore:60mm
Stroke:53mm
Displacment:151.2cc
Gears:4 speed ,bottom neutral 4 up shifting
Carb:See options
Ignition: Outer Rotor
Kit Includes
Kicker starter
Shifter
Intake w/ boot
Not Included
Skid plates
Exhaust
Air filter
IMPORTANT:
MUST RUN OIL COOLER
MUST RUN LINES FROM ENGINE BLOCK OR JUMPER LINE
Note
When upgrading your Honda XR50/70 ,CRF50/70 to this engine you
may want to use order aftermarket footpeg mounts and tank spacers.
Also we suggest using an aftermarket exhaust to obtain maximum performance
All of these items are available at TBoltUSA.com
SEE ENGINE PERFORMANCE SECTION
