TBParts - Stator Assembly for Z50 K2-78 Models

Vital Information
Part No TBW0039
Stock Level Check Stock
This item is out of stock. Click the Yellow Check Stock button above, fill the form, and we will let you know when it's available!

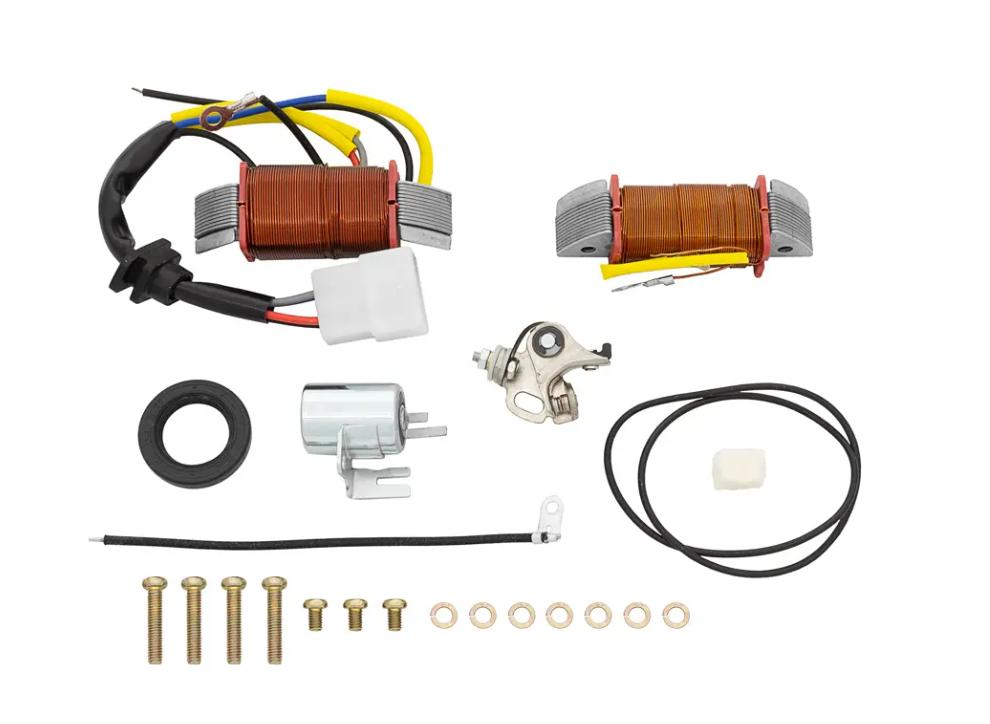

Reproduction Stator Assembly Kit - It is virtually identical to the original and comes complete with everything you need to get your stator  in working order (both coils, condenser, points, wiring, screws, O-ring, oil seal - see picture). This assembly was developed specifically for the K2 and K3-78 models (these models didn't use a battery). If you want to put lights on a Z50R, this kit would be a great start. On the original K2-78 lighting coil, the wire colors were gray, blue, black, and red. Gray was not available so we substituted green. That is basically the only difference.


  • Everything pictured
  • Both coils
  • Condensor
  • Points
  • Wiring
  • Screws
  • O rings
  • Felt - Oil


  • Z50 K2-78

Will NOT work with Honda Z50 KO 1968
