OFF ROAD USE
EVERY Pitster we sell is The Latest Version and
Excited about getting your bike, and setting it up? Pit Bike Shipping Info Pit Bike Set Up Info

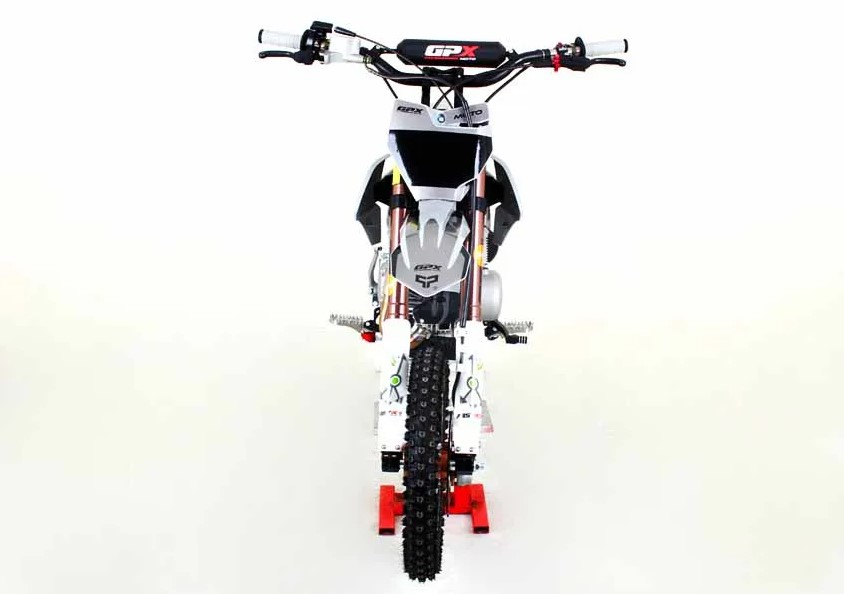

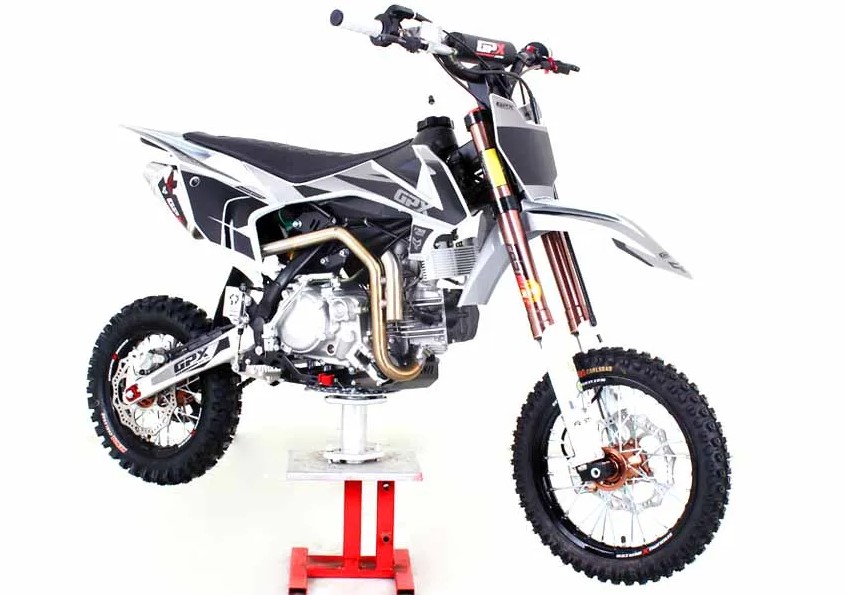

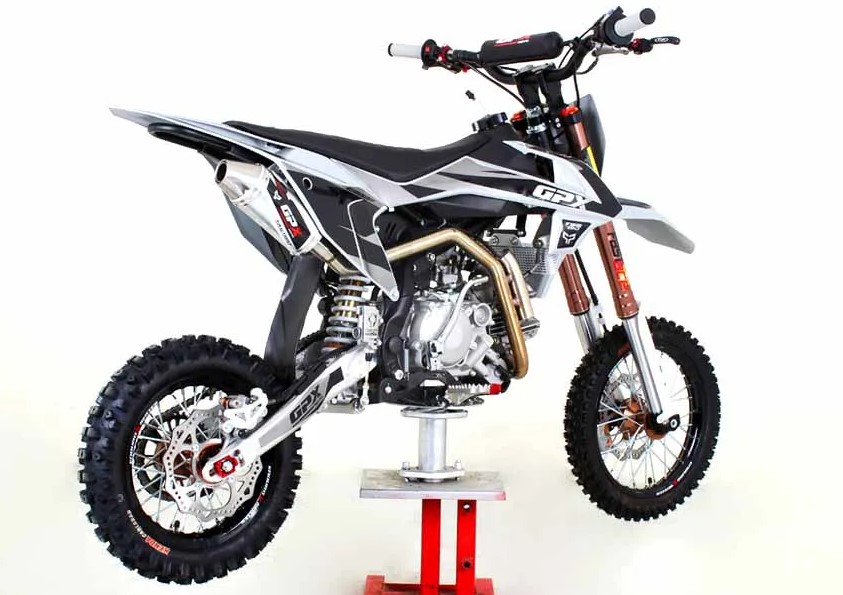

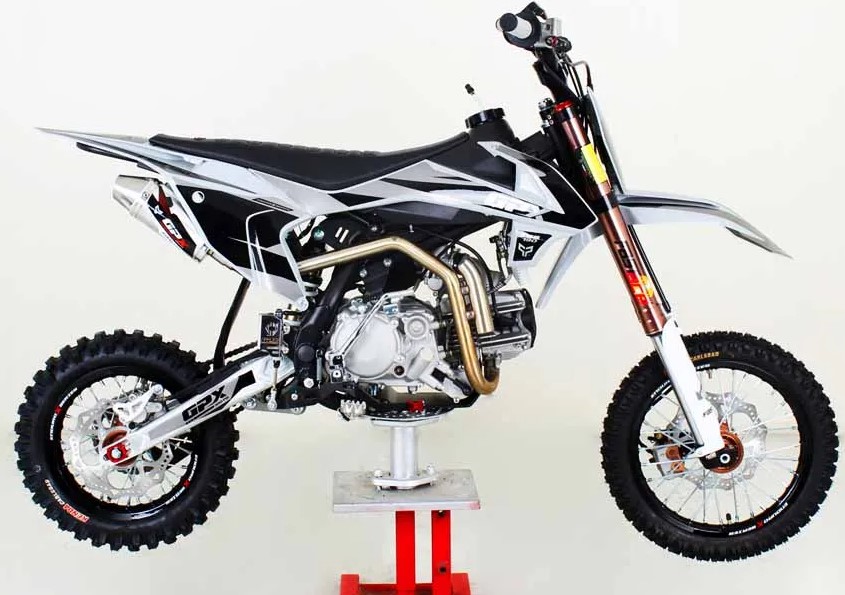

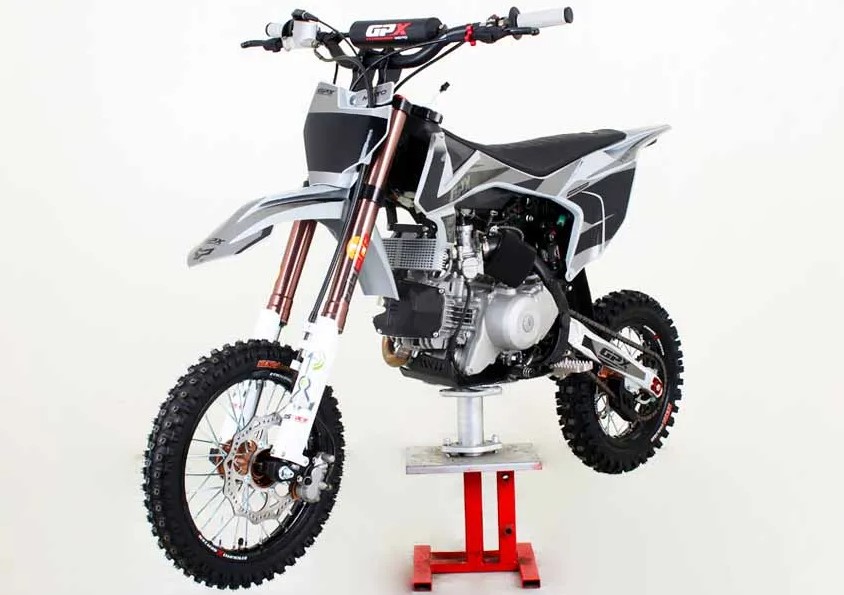

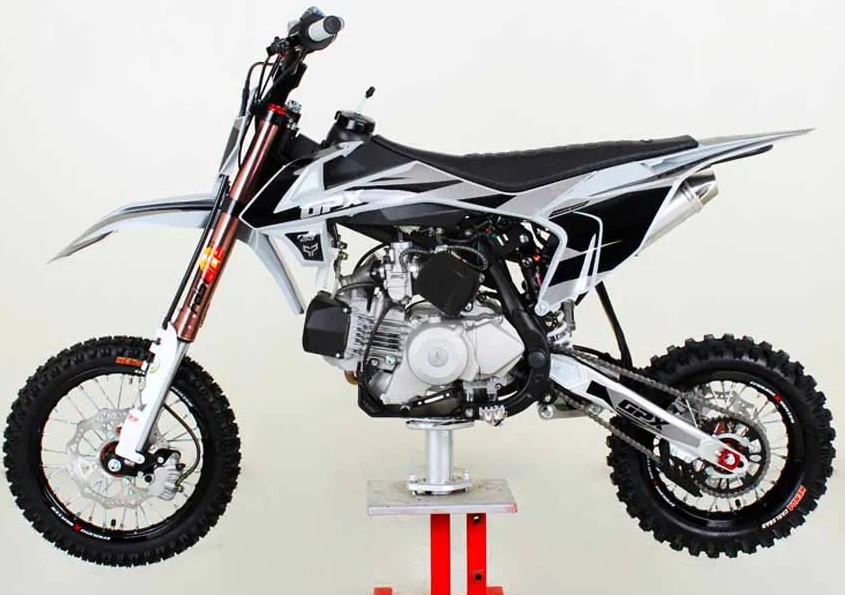

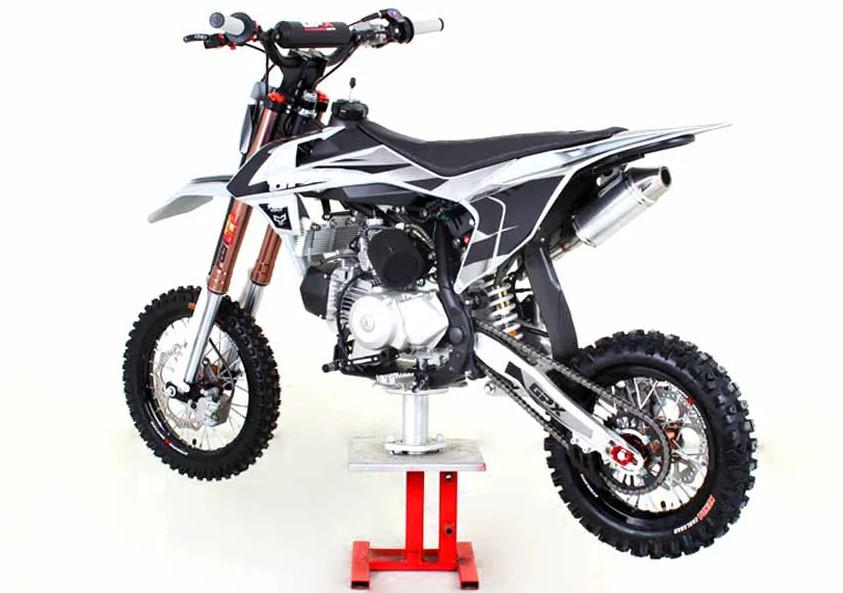

The newest offering from Pitster Pro! This FSE 190R is a top of the line pitbike with some of the newest and best innovations on the market. It has the new 5-speed Daytona 190 4V with electric start! In conjunction with it's progressive travel linkage rear suspension, this bike will perform with or above any other pitbike out there!
BASICS
Manufacturer Pitster Pro Model FSE 190R 12x14 MSRP $3,799.99 Available Colors Gray
ENGINE
Displacement 190cc Engine Type Oil cooled, 4V single cylinder 4-stroke Bore/Stroke 62mm x 62mm Final Drive 428 Chain / 16T x 41T Fuel Delivery Keihin PE 28mm carburetor Fuel Unleaded Pump Gas (Run Premium When Available) Recommended Engine Oil 10W-40 Petroleum Based (Nonsynthetic)
IGNITION
Kick Start Yes Electric Start Yes CDI Yes Auxiliary Output Yes
TRANSMISSION
Transmission Close ratio 5-speed manual Shift-Pattern 1-down, 4-up Clutch 5 plate wet clutch
CHASSIS
Front Suspension Fast Ace w/ compression and rebound adjustment
Rear Suspension Progressive link suspension w/ compression and rebound adjustment
Travel 9.8" Swing Arm Alloy w/ progressive linkage
Frame Central backbone with double cradle and Pro-link Subframe N/A
WHEELS
Front Wheel 1.40 x 14" Front Tire 2.75 x 14" Front Brake 220mm W-style rotor w/ floating caliper Rear Wheel 1.85 x 12" Rear Tire 3.0 x 12" Rear Brake 190mm W-style rotor w/ floating caliper
DIMENSIONS
Wheelbase 49.25 Inches Seat Height 34 Inches Curb Weight 143 lbs Fuel Capacity 1 Gallon Ground Clearance 12.25 Inches Overall Length 71 Inches Overall Width 31 Inches
IMPORTANT ENGINE STARTING INFORMATION
You may want to consider setting up the bike on a stand for a solid starting location at first until your confident
Turn on Both Fuel and Choke
DO NOT open the throttle (do NOT turn the throttle)
Move the starter down until it gets stiffer, your looking for top dead center
Let the starter come back up and give a full strong swift kick ALL the way thru
REPEAT (If necessary)
DO NOT KICK RAPIDLY
When warm just do not use the choke
Flooded Engine:
IF your flooded , pull the plug, kick it over about 10 times WITH THE PLUG OUT
Put in a NEW PLUG
For ease of starting:
You may want to consider our TRC EZ START HIGH PERFORMANCE CDI
Part No. TRC-9745 (NOT FOR USE ON ZS190s)
One more thing:
At times it helps to just crack the throttle a
tiny bit to let air in.
Available Options:
Shipping: Flat Rate (+$275.00)
