Piranha Daytona - Anima 190cc FDX Engine

Vital Information
Price$1,799.00
Part No WHS-4997
Stock Level 8 Left
Choose Options

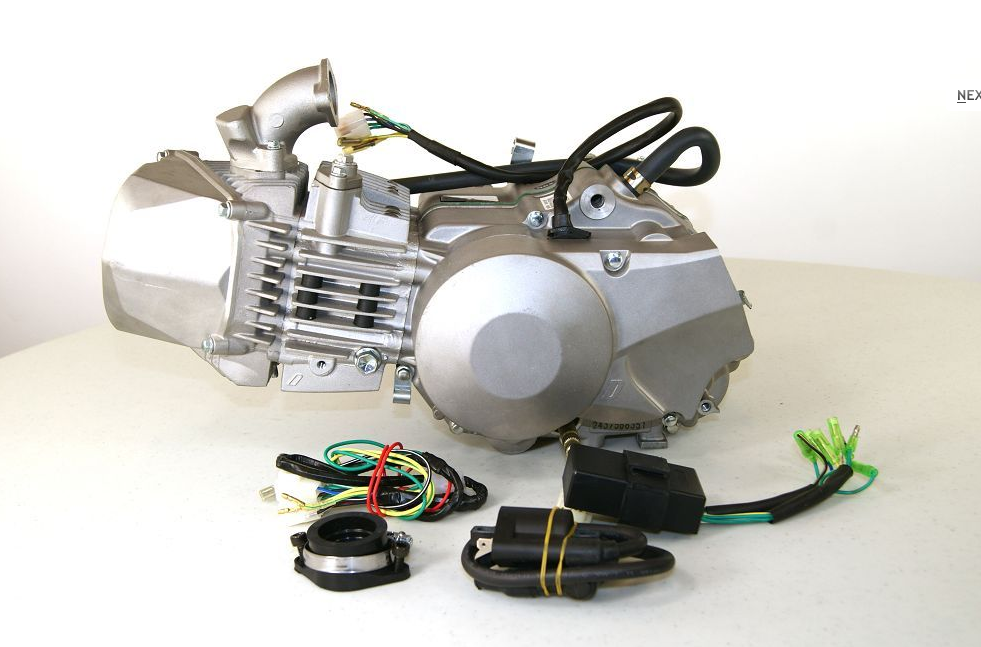

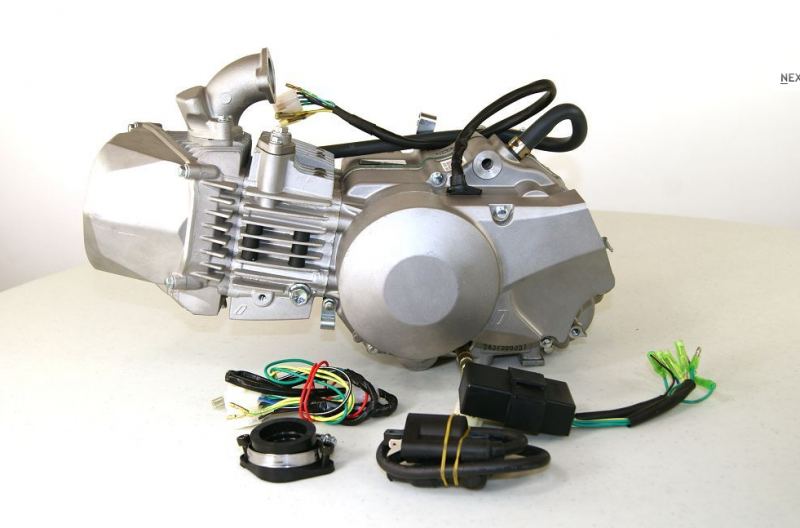

Piranha Daytona - Anima 190cc FDX Engine

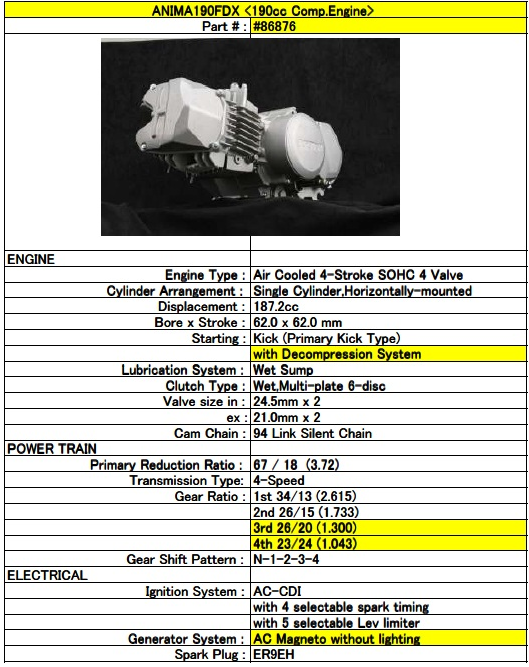

This 4 valve, 62mm bore x 62 mm stroke engine is the newest edition directly from Daytona Motor Co. The new FDX-190 comes stock with an updated close ratio transmission, an auto-decompression camshaft and reinforced crankcases.


Key Features:

  • The FDX motor is manufactured and assembled to DAYTONA Specification and Quality
  • Roller rocker arms
  • 10mm oil cooler connection
  • Honda type exhaust port
  • Bottom neutral 4-Up transmission (N-1-2-4-4)
  • Manual hand clutch
Includes:
  • (1) Daytona FDX 190 engine
  • (1) Intake manifold
  • (1) Wire harness
  • (1) CDI: ( 4 selectable timing settings & 5 selectable Rev Limiter setting)
  • (1) Ignition coil

Recommended:

  • Replacement spark plug - NGK 8mm spark plug, part number W-2-ER9EH
  • Nibbi PE28 carburetor - TBW1655



*Daytona crate engines do not come with any warranty*

Users manual available here https://daytona-global.com/products/pdf/87615.pdf



Available Options:

Shipping:



  Write Review

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
