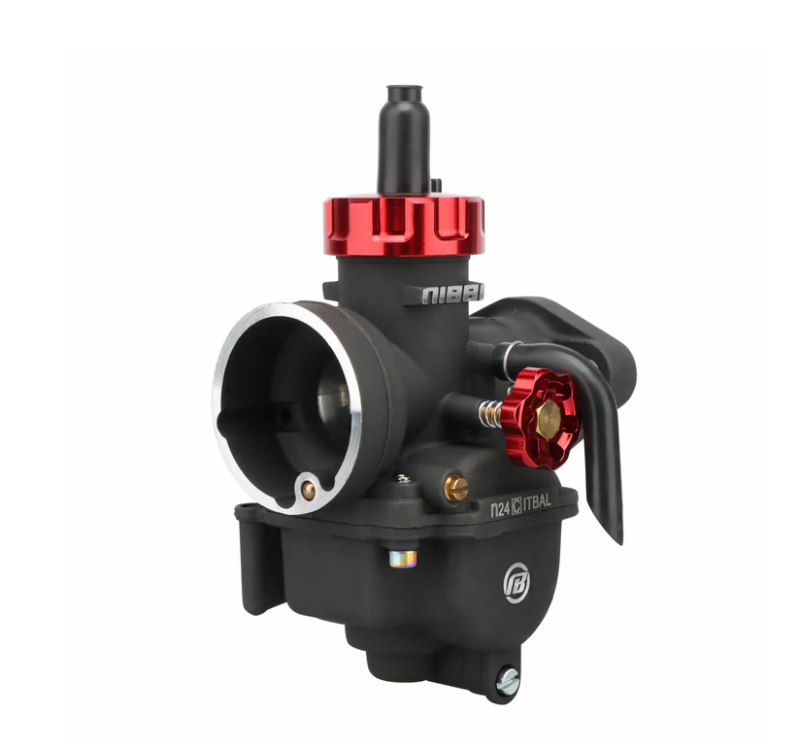

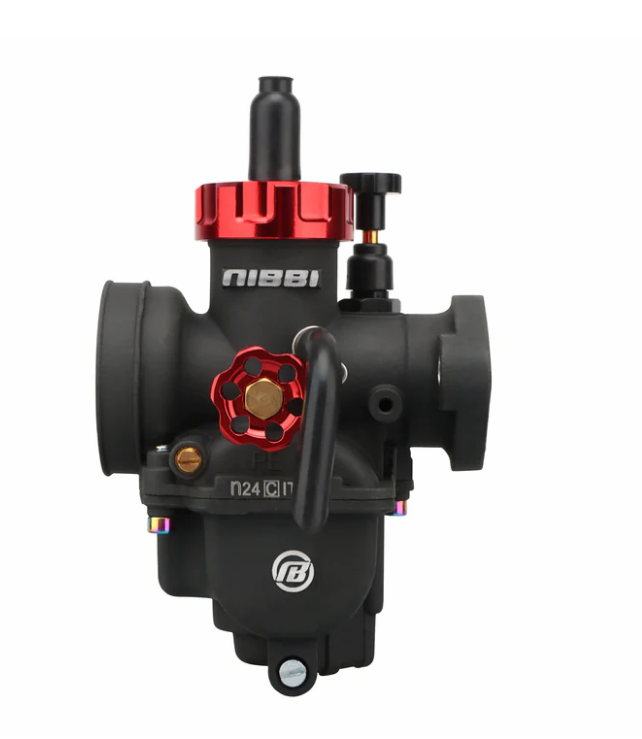

NIBBI 24mm Flange mount carb

NibbiRacing flange version of the PE 24YJ Flange mount
Aluminum alloy with anodic oxidation treatment on the surface, which greatly improves the corrosion resistance, wear resistance, insulation, heat resistance and hardness of the carburetor.
Combined with NibbiRacing carburetor atomization technology, it allows for a responsive throttle, dramatically improving your motorcycle's performance and solving the problem of underpowered carburetors on the market.

Spec:

• Aluminum alloy body

• 48mm Bolt Center to center flange

• 24mm ID Spigot
• 46mm OD intake
• 139mm Height
• 88mm Width

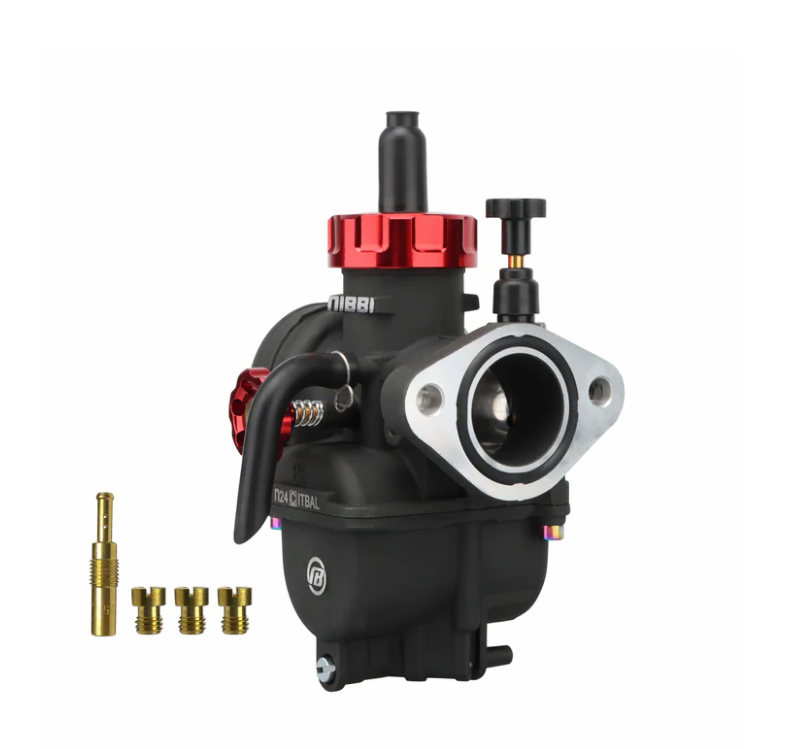

• Includes Jet kit

Tech:

• Takes KEIHIN ROUND JETS SERIES 99101-393 (TBW0327)

• Takes KEIHIN 21 series pilot jets are used in PJ, PWK, PD, and 20-32mm PE carbs (TBW0363)
• Takes UNI UP-4182AST 44.5MM(1.75IN) air filter

• Takes PT-3429 44.5MM(1.75IN) air filter
