CT70 Conventional Style Front End 30mm Fork Kit with Disc Brake

Vital Information
Price$299.95
Part No TRC-10513
Location510B
Stock Level 5 Left
Choose Options

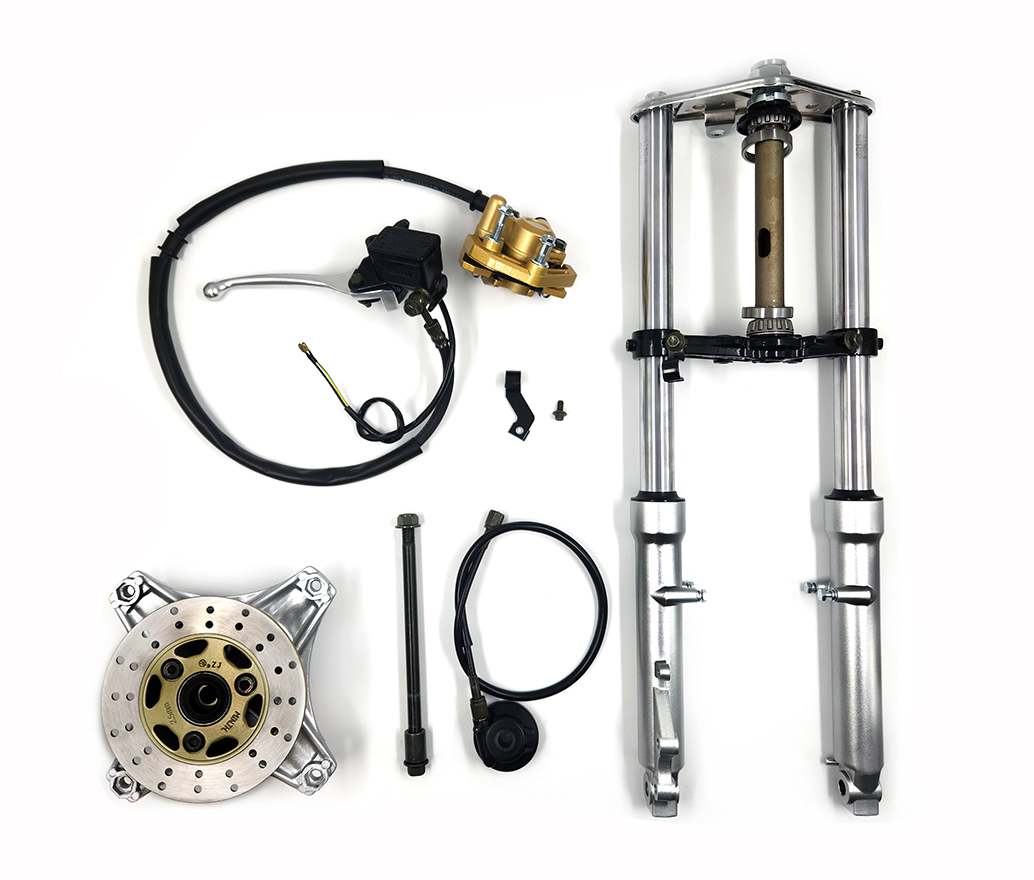

Give your CT70 a HUGE upgrade with this performance oriented front end that provides better suspension with its oil forks and a high quality hydraulic front brake setup!


Specifications:

  • Brake line length - Approximately 900mm
  • Overall length from top plate to axle hole - 600mm
  • Rotor size - 155mm
  • Front upper fork leg OD - 30mm
  • Brake caliper bolts - M8 x 35mm length x 1.25 pitch (024-20835)

Recommended:

  • Replacement brake pads - 153-169H
  • Replacement brake lever - WHS-2058
  • Replacement wheel bearing - TRC-1695
  • Replacement fork seals and wipers - TRC-3173
  • Replacement steering stem bearing set - W-22-2002
  • Headlight bracket - TRC-1509



Note: Headlight bracket not included, Part number TRC-1509

Available Options:

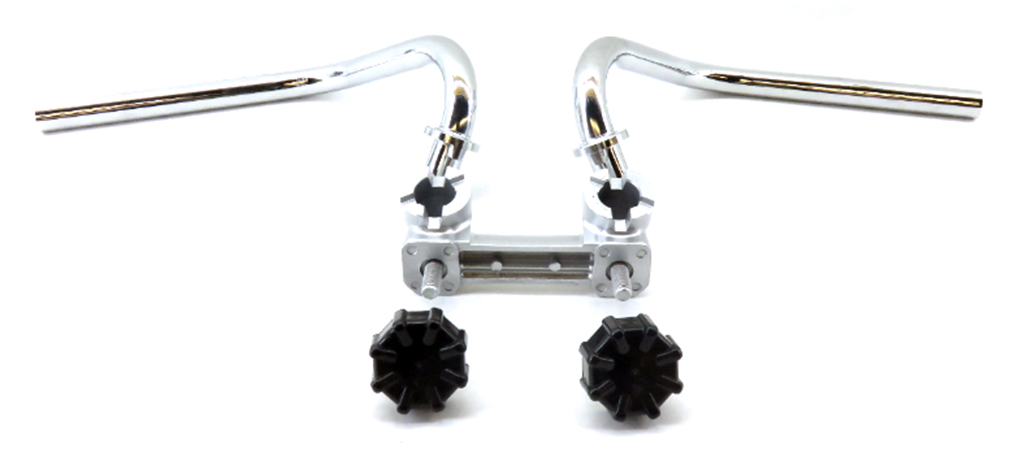

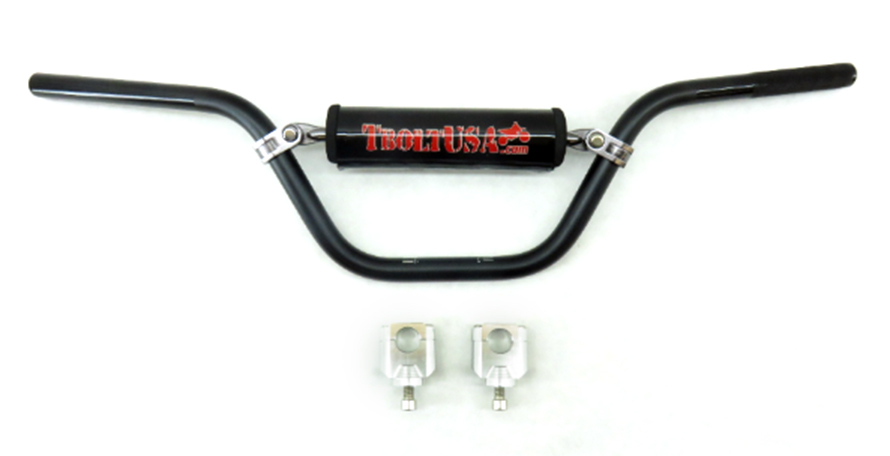

Handle Bar Style:
