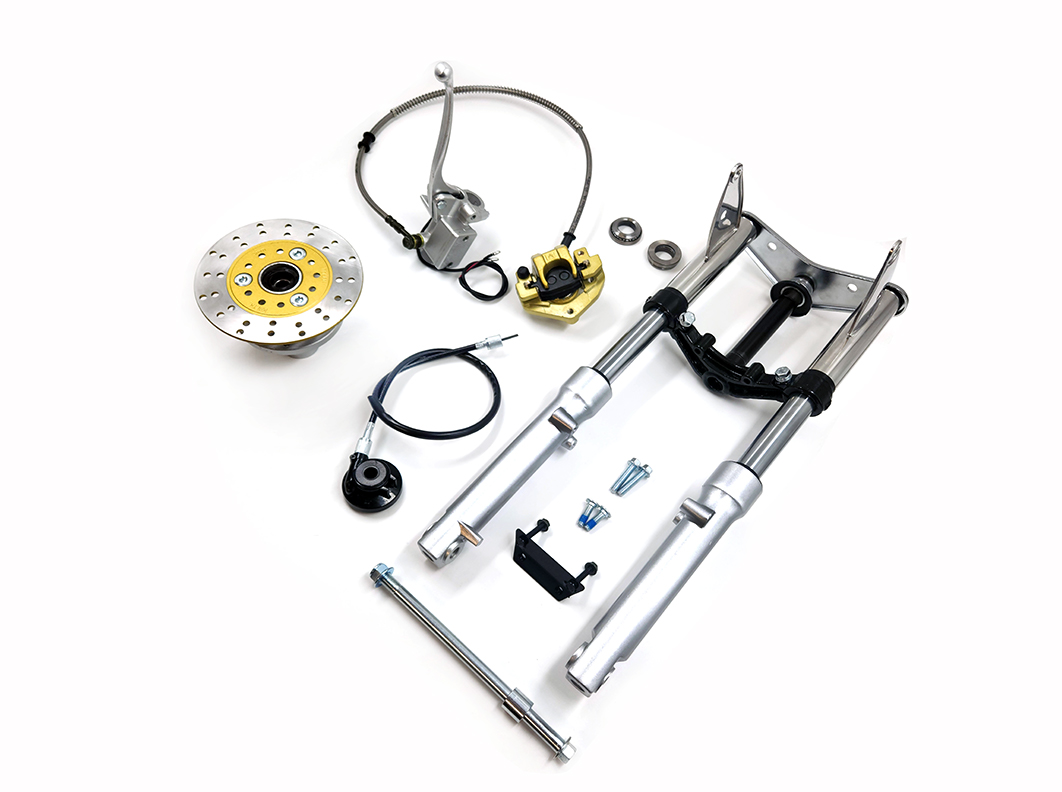

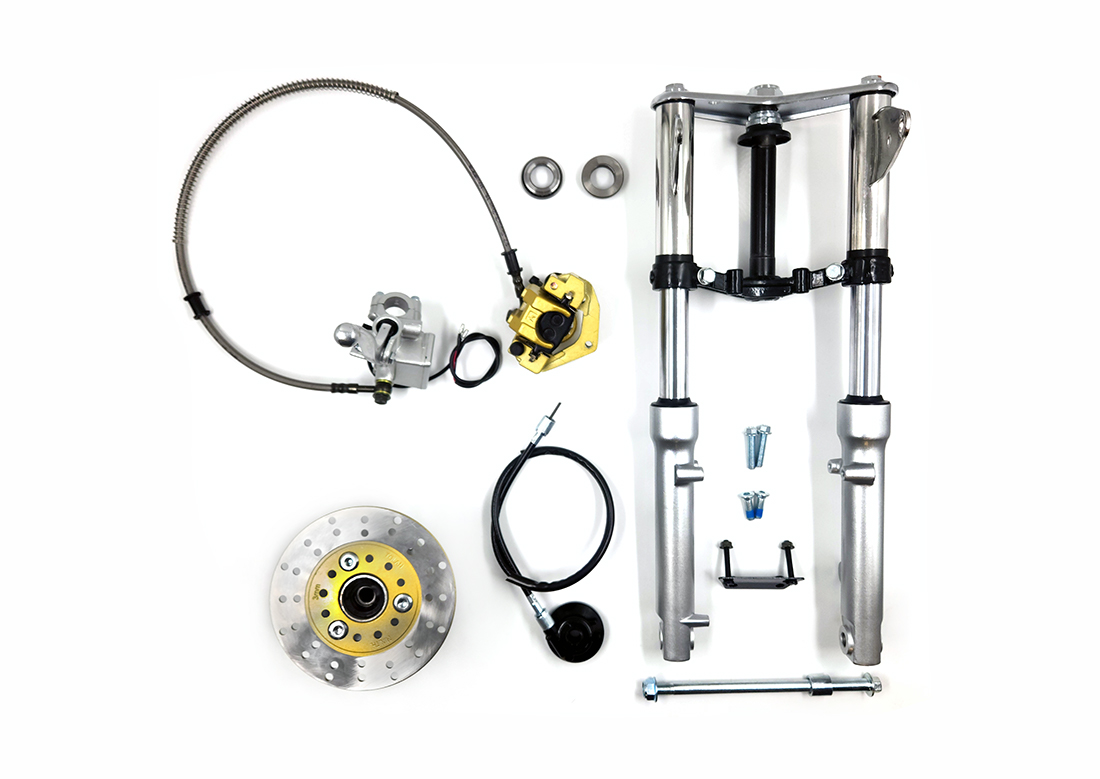

Z50 Conventional Style Front End Fork Kit with Disc Brake

Z50 conventional fork style front end fork kit with disc brake! A substantial upgrade to help both performance and feel of your Monkey bike!

Key Features:

• Hydraulic disc brake for drastically better stopping power
• Accepts rims from KO-1979 year Z50 models

Specifications:

• Brake line length - Approximately 820mm
• Overall length from top plate to axle hole - 510mm
• Rotor size - 155mm
• Front upper fork leg OD - 27mm

Recommended:

• Replacement brake pads - 153-169H
• Replacement brake lever - WHS-2058
• Replacement wheel bearing - W-44-4314
• Replacement taper steering stem bearing set - W-22-2002
• Replacement fork seals  SSR-8943 (27x37x10.5)
• K0-1979 Z50 rim options - TBW0616, TBW1053, TBW0805
• K0-1979 Z50 rim bolt kit - TRC-11243

• Bar Clamps for 7/8 bars TRC-0563
• OEM steering kit w/ washer - TBW1162

Installation notes:

• Due to tight clearance between the brake caliper and the rim, Please install the brake caliper over the brake rotor hub assembly and mount it to the fork leg before mounting the front rim to the hub
