TBparts - V2 Race Head 57mm Bore Kit For Lifan - 14mm Pin

Finally a race head big bore kit for Lifan engines with 14mm wrist pin and 69mm tall cylinders !!

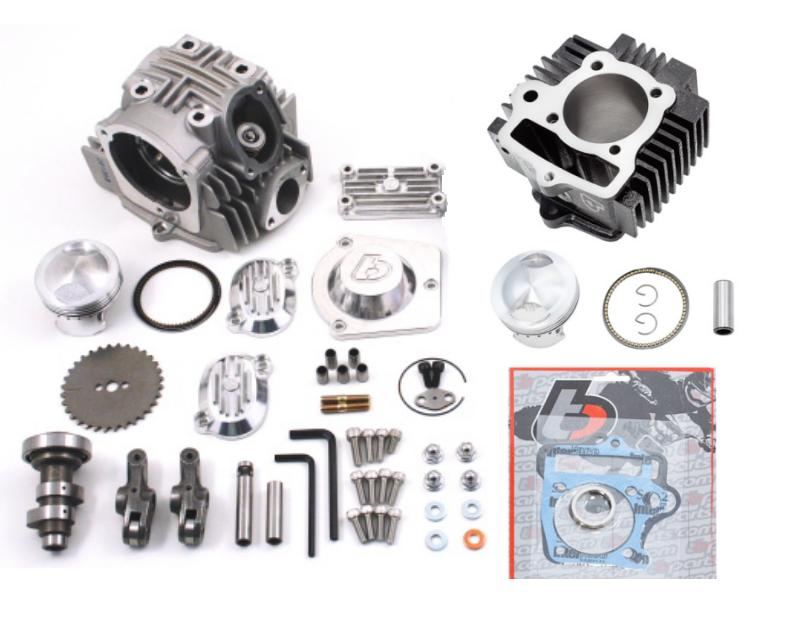

Kit Includes:

• TBW0751 - V2 roller rocker race head
• TBW0821 - Bolt kit
• TBW0752 - Camshaft
• TBW1441 - Head cover set
• TBW0861 or TBW0414 - Cam sprocket 28 tooth  or 32T respectively (SEE NOTE)
• TBW0824 - Piston kit

• TBW0862 - Gasket set
• TBW1608 - 57mm bore x 69mm tall steel cylinder

This cylinder has been tested and works properly on Lifan 125 engines.
See Works - Lifan V2 Performance 138cc Semi-Auto Engine TRC-1449



Note:

1.  Make sure your engine has a 69mm tall cylinder before ordering

SEE TECH LINK:
https://tboltusa.com/store/tech.php?pID=74/Pit+Bike+Cylinder+sizing

2. We recommend you test fit the cylinder. The best way to do this is to initially test fit the cylinder without the piston installed at all.

SEE STUD PATTERN TECH LINK:
https://tboltusa.com/store/tech.php?pID=220/Stud+Pattern+for+TBparts+57mm+x+69mm+tall+cylinder+TBW16...

3. Test fit the piston WITHOUT the rings on the connecting rod with the cylinder installed and check the deck height to make sure the piston does not stick out of the cylinder at top dead center.

4.  Double check everything with this advanced engine build TECH LINK:

https://tboltusa.com/store/tech.php?pID=108/Advanced+Engine+Build+Checking+Valve+to+Piston+clearance

Available Options:

Cam Sprocket:
28 Tooth TBW086132 Tooth TBW0414
