TBparts - 114cc Big Bore Kit with Race Head and TB 20mm Carb Kit for TRX90 Utilizing Stock Air Box

TB 114cc high compression big bore kit!

Application:

• TRX90 utilizing stock intake manifold and stock air box


Key Features:

• Lightweight aluminum cylinder with steel sleeve (huge weight savings over your stock cast iron cylinder)

• Cast in mounts on cylinder for aftermarket skid plates
• Oversized cooling fins on cylinder for efficient heat dissipation
• High compression 54mm piston with rings, pin, & clips (replaces your low compression dished or flat top piston)
• Head gasket kit
• High performance race camshaft (for the Race Head only)
• Race Head with Large valves (25/22mm) and better flow for increased performance.
• 20mm TB Performance carb

This will make a huge difference in performance over your stock setup and is a very quick and easy upgrade.

NOTE: TRX90 will not need High volume oil pump AND now this kit is set up for drop on install with no case mods with trx90

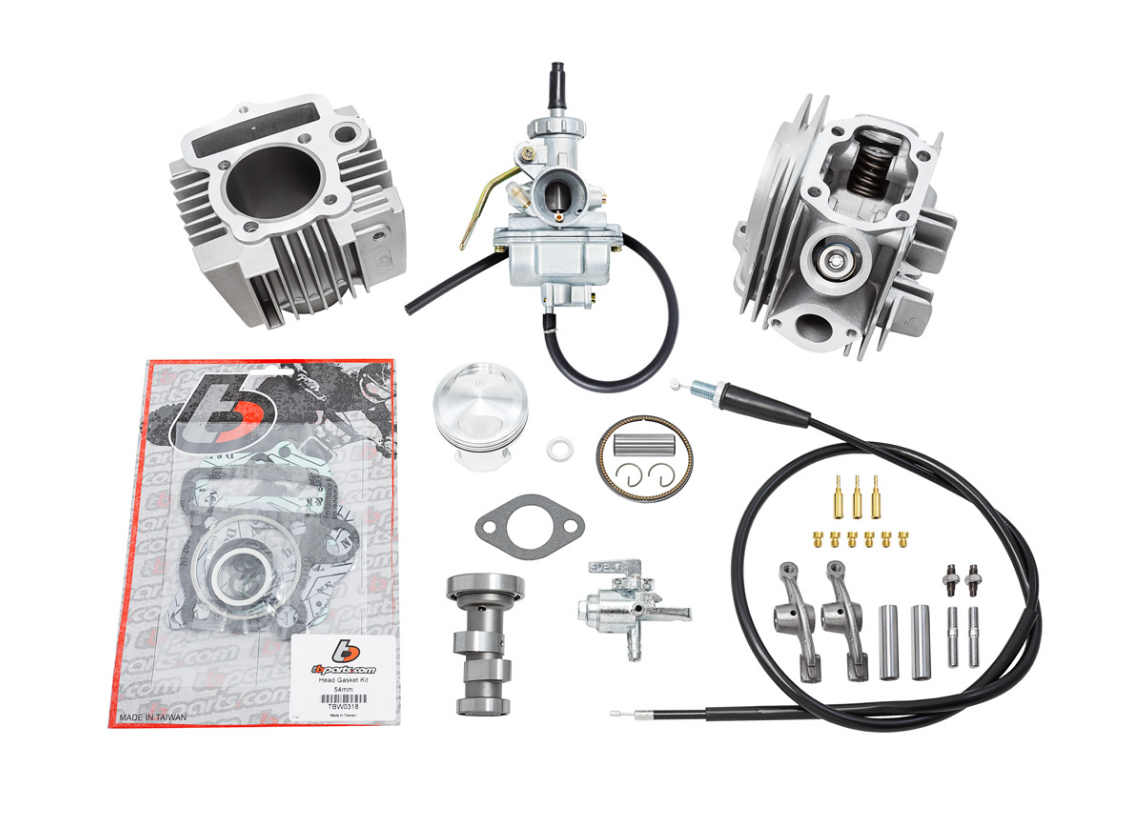

Includes:

• TBW0788 - Piston

• TBW0721 - Cylinder

• TBW0318 - Gasket

• TBW0385 - Race head
• TBW0300 - Race cam
• TBW0125 - Carb
• TBW0798 - Pilot jet kit
• TBW0294 - Main jet kit
• TBW0857 - Throttle cable
• TBW0133 - Dual feed petcock
• TBW0376 - Intake gasket
• TRC-10846 - Heat Spacer (For use in between the OEM manifold and carburetor)
