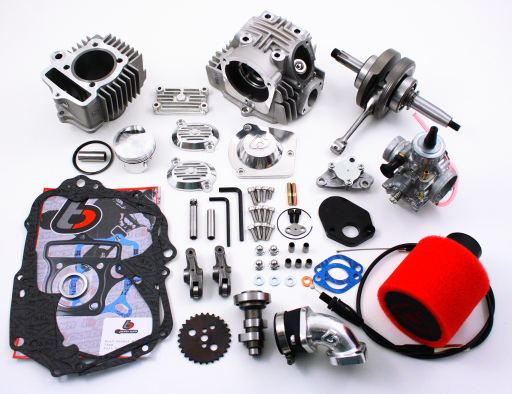

TBParts - 108cc 52mm Bore kit w/ Stroker crank and VM26 Carb Kit

Vital Information
Price$889.99
Part No TBW9120
Stock Level 5 Left
1


TB Roller Rocker Race Head V2 (52mm) Big bore & Stroker Crank kit 108cc
Highest Performance Race head on the market with full parts support in stock.

Key Features:

  • Roller Rocker Arms exactly like the V2 head for the KLX110
  • 28.5mm intake Valve
  • 23.5mm Exhaust Valve
  • 5mm Valve Stem
  • 23mm Exhaust port
  • Matching high compression piston
  • Head kits include all hardware
  • 52mm piston with rings, pin, & clips
  • 52mm Aluminum Cylinder
  • High performance race camshaft (for the Race Head only)
  • VM26 Mikuni Carb Kit
  • Head gasket kit
  • 51mm Stroker Crank
Recommended:
  • High speed 2mm drill bit - TRC-5526
  • 2 Size clutch tool - WHS-2274
  • TBparts oil cooler for V2 heads - TBW9187
  • Sta-bil fuel stabilizer - W-57-1109
  • Pre-filter - OW-20-2159-01
  • 12 Way rotating spacer - TBW0900
  • TB heavy duty clutch kit - TBW0971
Application:
  • CT70H - All years
  • SL70 - All years
  • XL70 - All years
  • ATC70 - 81 & Up
  • CT70 - 80-81
Kit Includes:
  • TBW0750 - Race Head
  • TBW0755 - Bolt Kit
  • TBW0752 - Cam
  • TBW0754 - Cover Set
  • TBW0753 - Piston
  • TBW0859 - Gasket
  • TBW0156 - Cylinder
  • TBW0301 - Throttle Cable
  • TBW0433 - Intake Kit
  • TBW0399 - Carb
  • TBW0413 - Air Filter
  • TBW0287 - Gasket
  • TBW0334 - Gasket
  • TBW0713 - Stroker crank
  • TBW0225 - Oil Pump

Installation Note:
It will save a lot of time and effort if the oil pump is installed while installing the bore kit (requires cylinder removal).

See the Performance Info section for additional information on our performance parts.



Write Review

Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.
