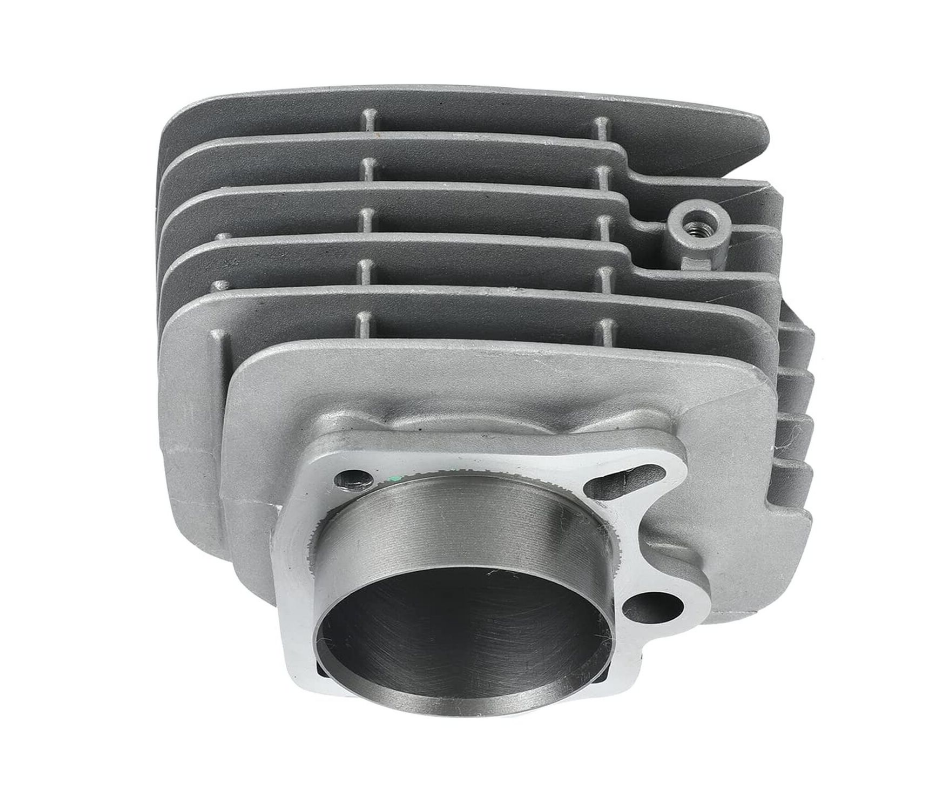

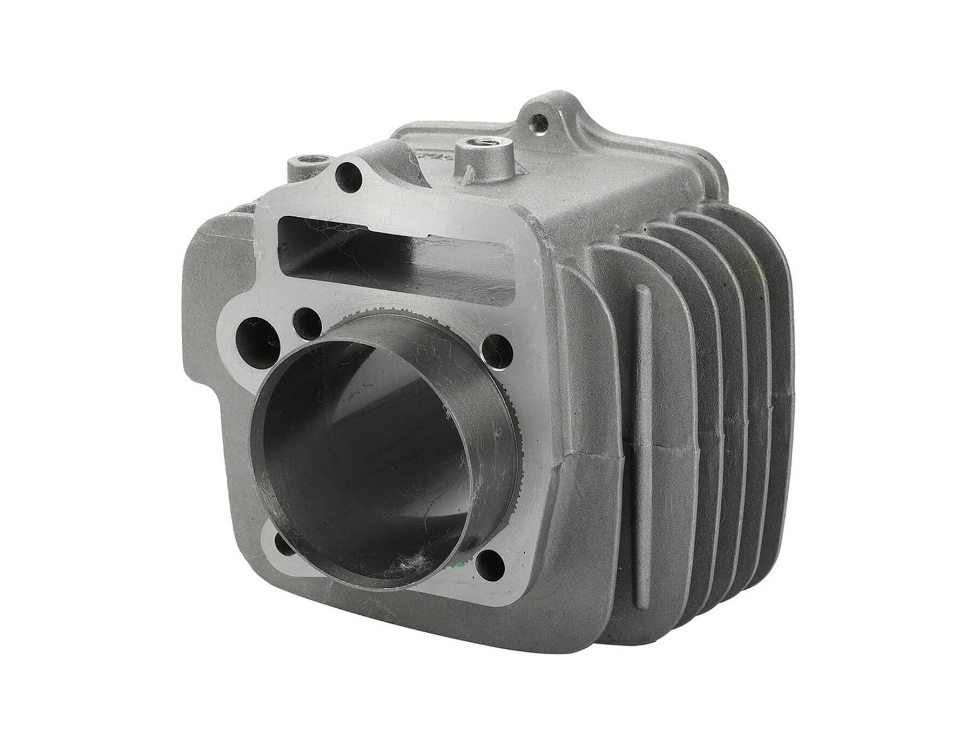

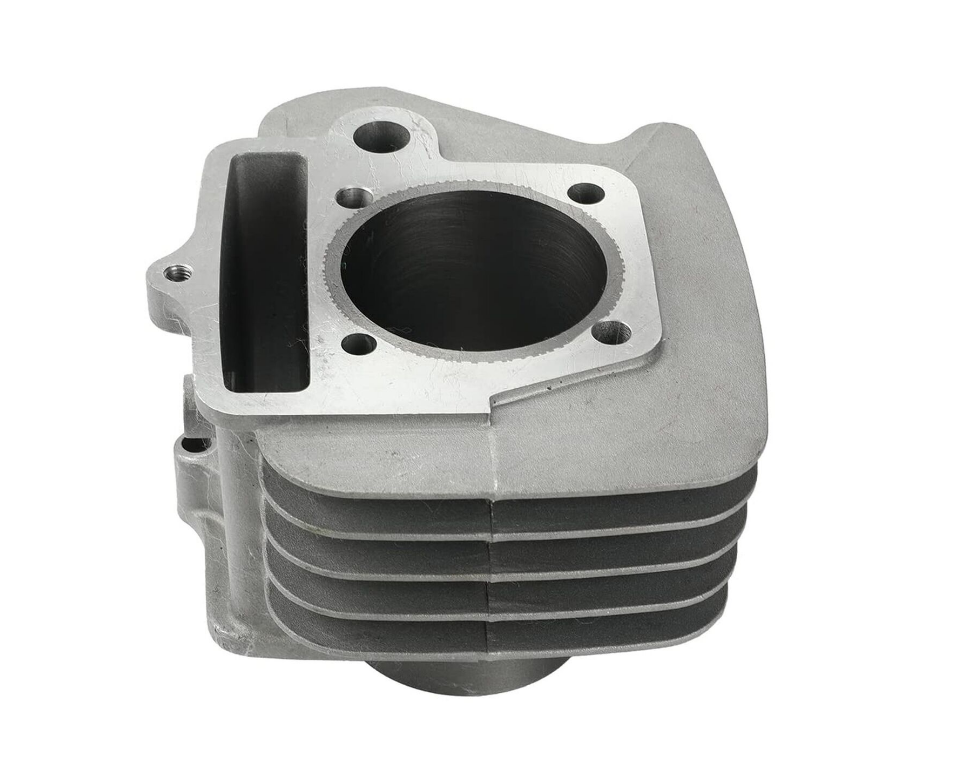

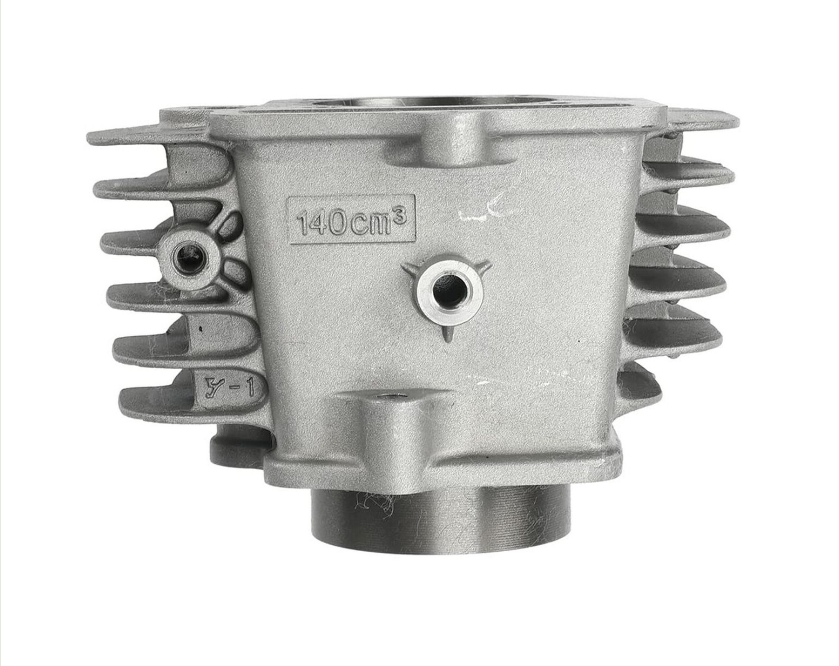

SSR & YX 56mm bore x 78mm tall cylinder

Vital Information
Price$81.40
Part No A01643-09-00
Location109G
Stock Level 2 Left

GPX & YX 56 mm bore x 78mm tall cylinder


Key Features:

  • Lightweight aluminum cylinder with steel sleeve (huge weight savings over your stock cast iron cylinder)
  • Cast in mounts on cylinder for aftermarket skid plates
  • Oversized cooling fins on cylinder for efficient heat dissipation
  • OD of cylinder skirt is 60mm

Application:

  • SSR 140TR
  • Piranha 140cc
  • Thumpstar 140cc
