TB 146cc Bore kit and YX 140 Head Kit

Vital Information
Price$279.95
Part No TBW9066-0492
Location111B
Stock Level 1 Left
1

TB 146cc big bore kit with HC piston
YX 140 head with 27mm intake and 23mm exhaust
Stock YX140 cam included and valves are installed


Specifications:

  • OD of cylinder skirt is 59mm
  • 32T cam sprocket
  • Intake port size is 24mm
  • Exhaust port size is 33mm
  • Intake Valve size is 27mm
  • Exhaust Valve size is 23mm
Application:
  • GPX 125cc
  • Pitster 125cc
  • Piranha 140cc

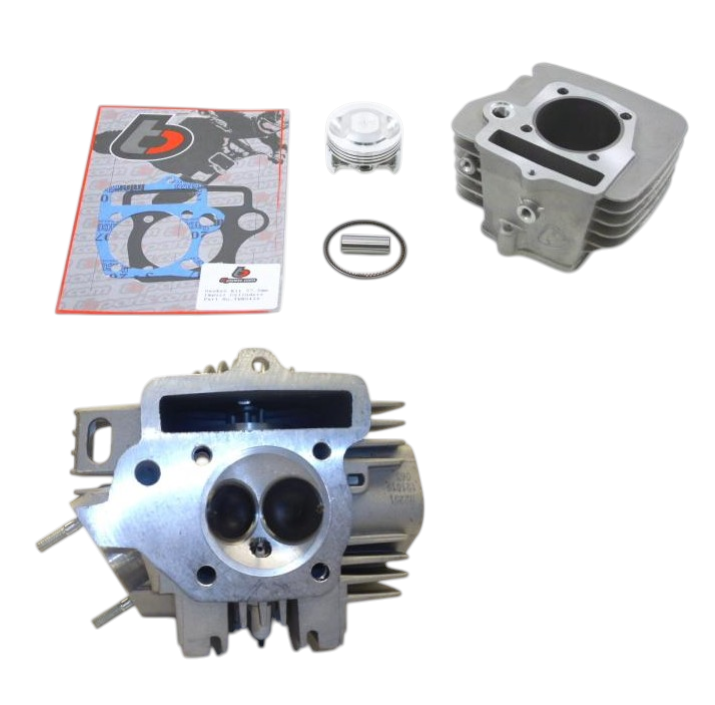

Kit Includes:
  • TBW0601 - Aluminum cylinder 57mm (78mm tall)
  • TBW0424 - Head and base gaskets
  • TBW0823 - 57mm TB piston with 13mm pin
  • TRC-0492 - Cylinder Head
