Piranha - V3 Complete Front End for CRF50 and Other Pit Bikes

Fork kit is set up for a full size adult. Fork action is adjustable Via fork oil weight & height (No clickers or knobs)


Application:

• CRF50
• XR50
• CRF70
• XR70

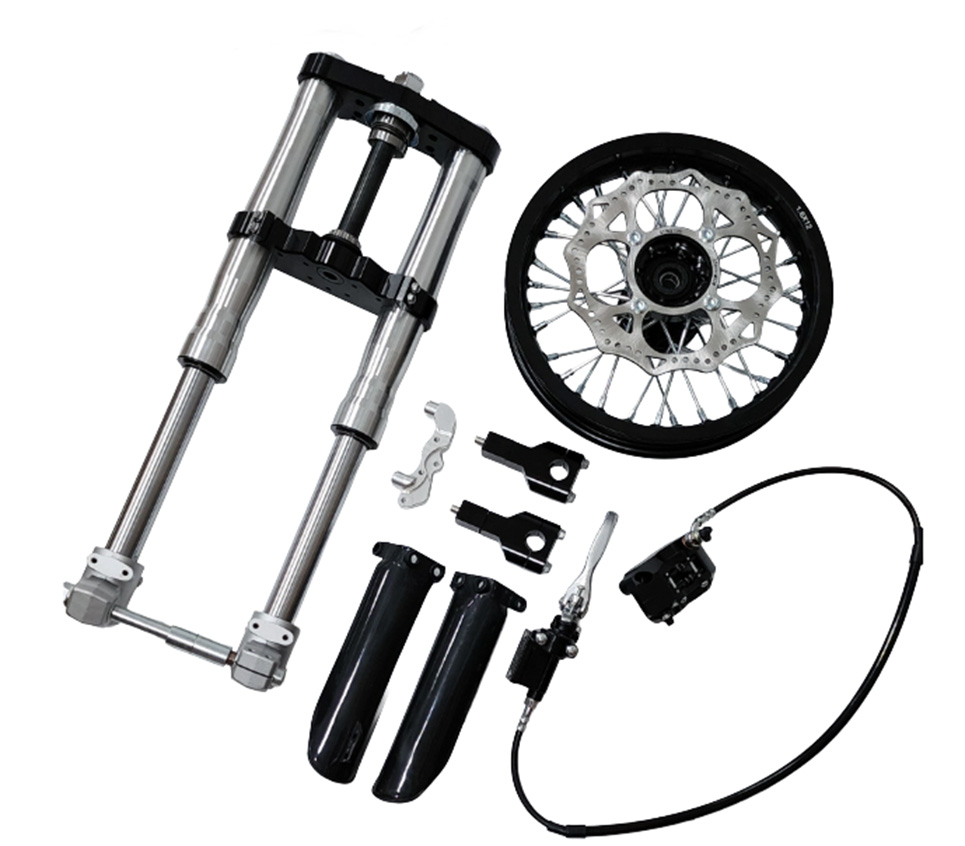

Kit Includes:

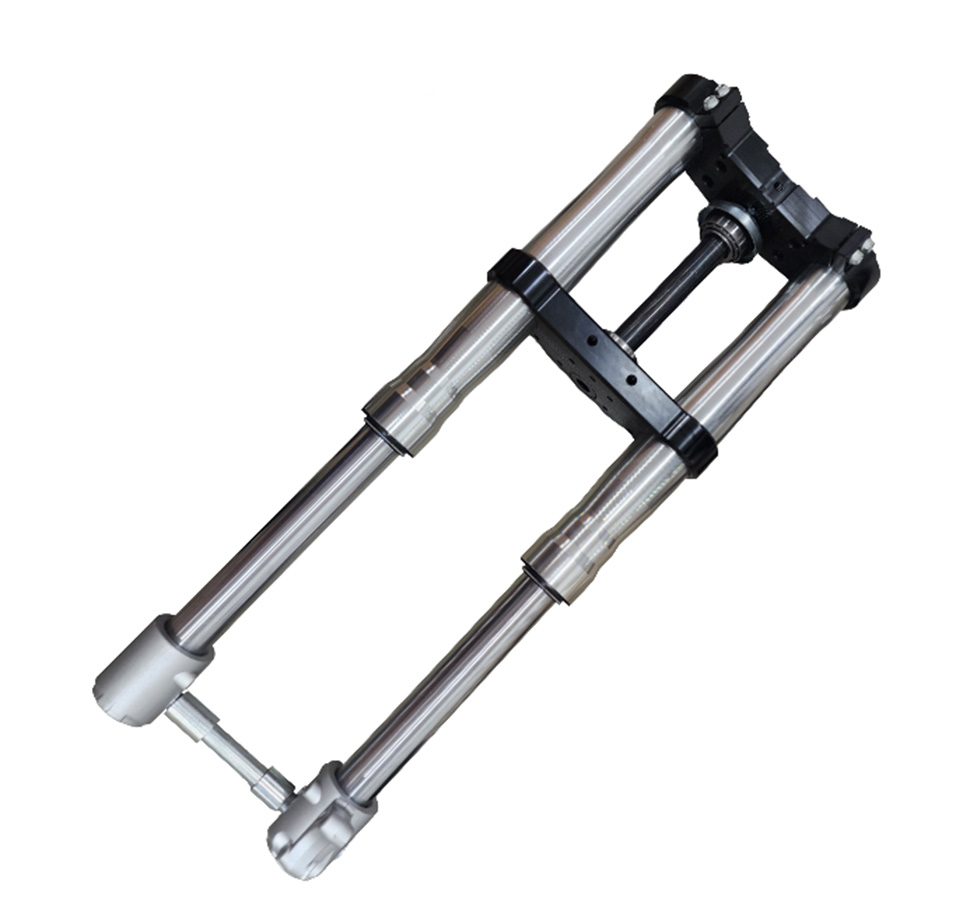

• YCF 600mm forks (23.5 in)
• Redesigned Piranha triple clamps / Risers ( 7/8" Bar Clamps) with extra riser spacer for tall riders

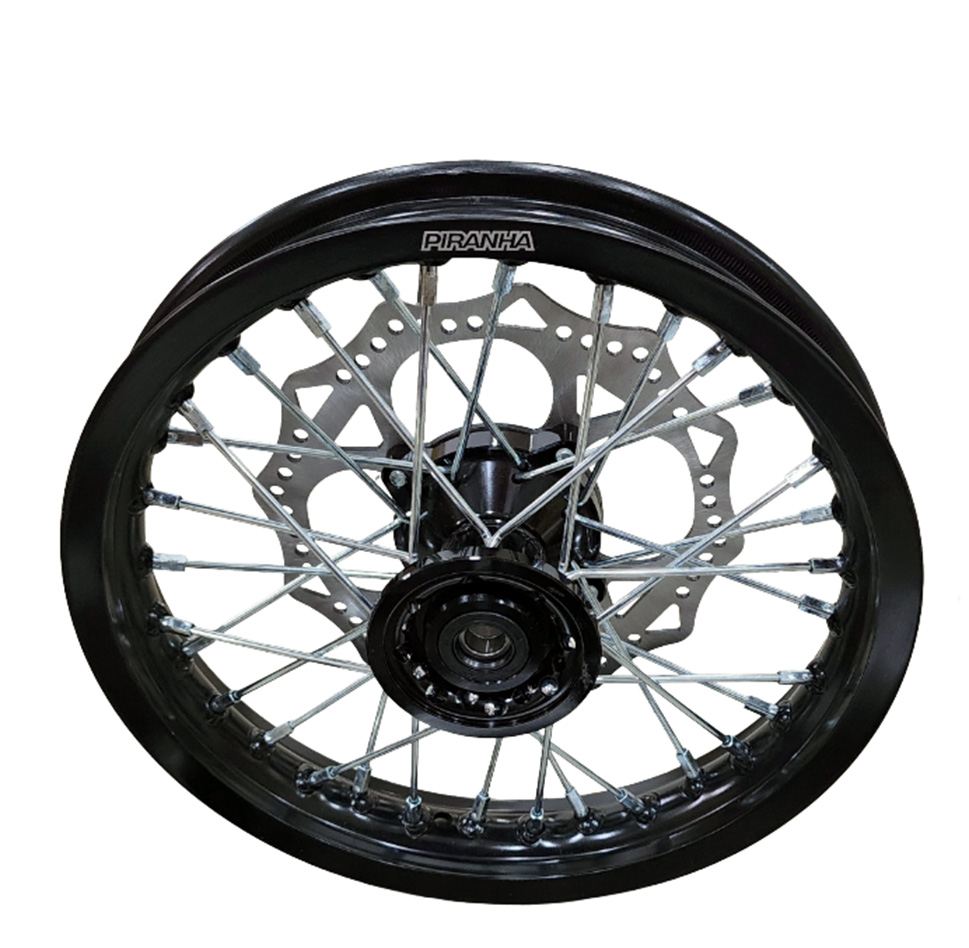

• Piranha YCF 12" 7075 aluminum rim with CNC Hub / 32 spoke race wheel 1.60 wide
• YCF factory racing hydraulic 2 piston brake system (Same as on the Piranha 140 and 190)
• YCF folding brake Lever
• Taper headset bearings for Honda CRF50 style head tubes
• 205mm steering tube (CRF50 and most pit bikes)

Specifications of Forks:

• Stem length overall - 215mm
• Top clamp thickness - 30mm
• Bottom clamp thickness - 30mm

Support Parts:

• Rebuild kit for YCF V3 600mm forks -
• Complete front brake system - WHS-3382
• Brake lever - WHS-4490
• Brake pads - WHS-4488
• Fork guards - WHS-6012
• Front wheel - WHS-5659
• Stem bearings - W-22-2002



Note: Fork legs are significantly larger then stock resulting in a decreased turning radius.

Available Options:

Shipping:
Flat Rate (+$30.00)
