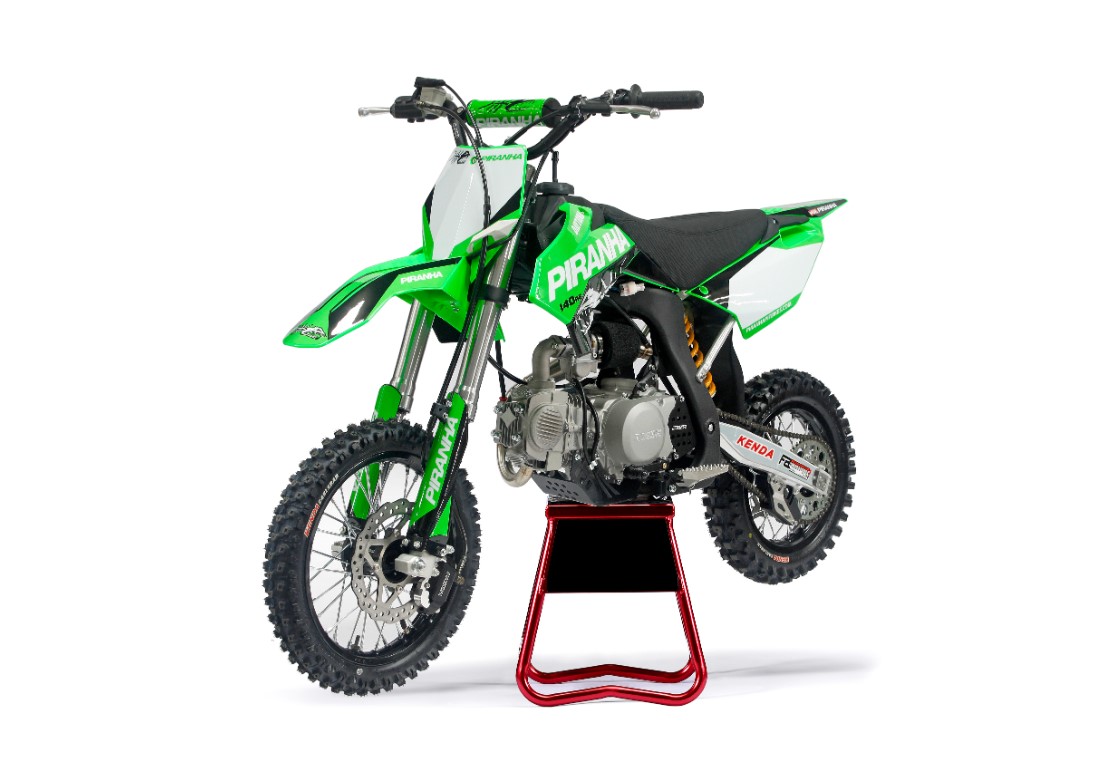

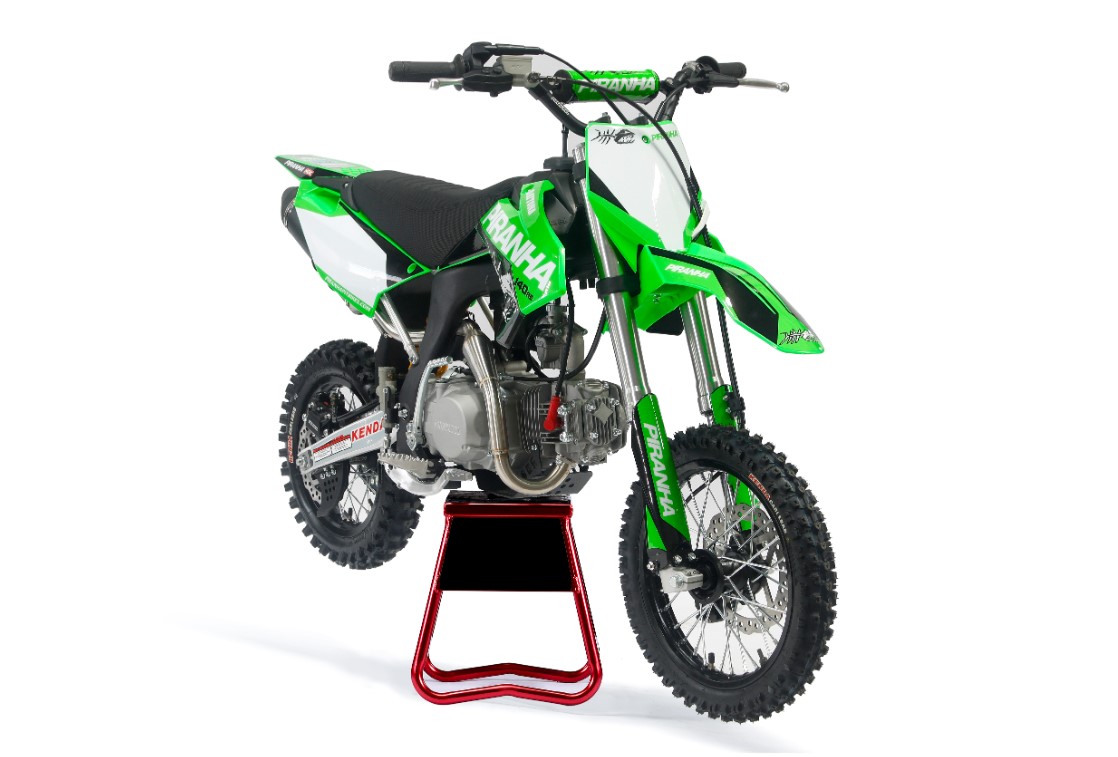

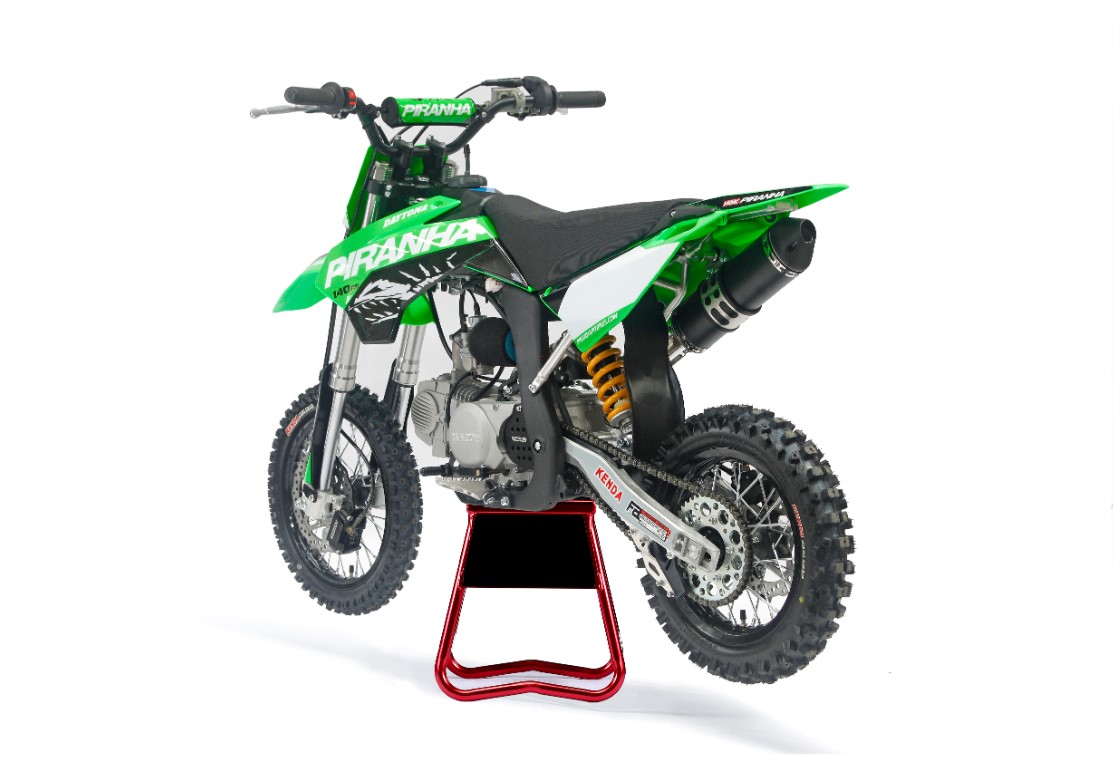

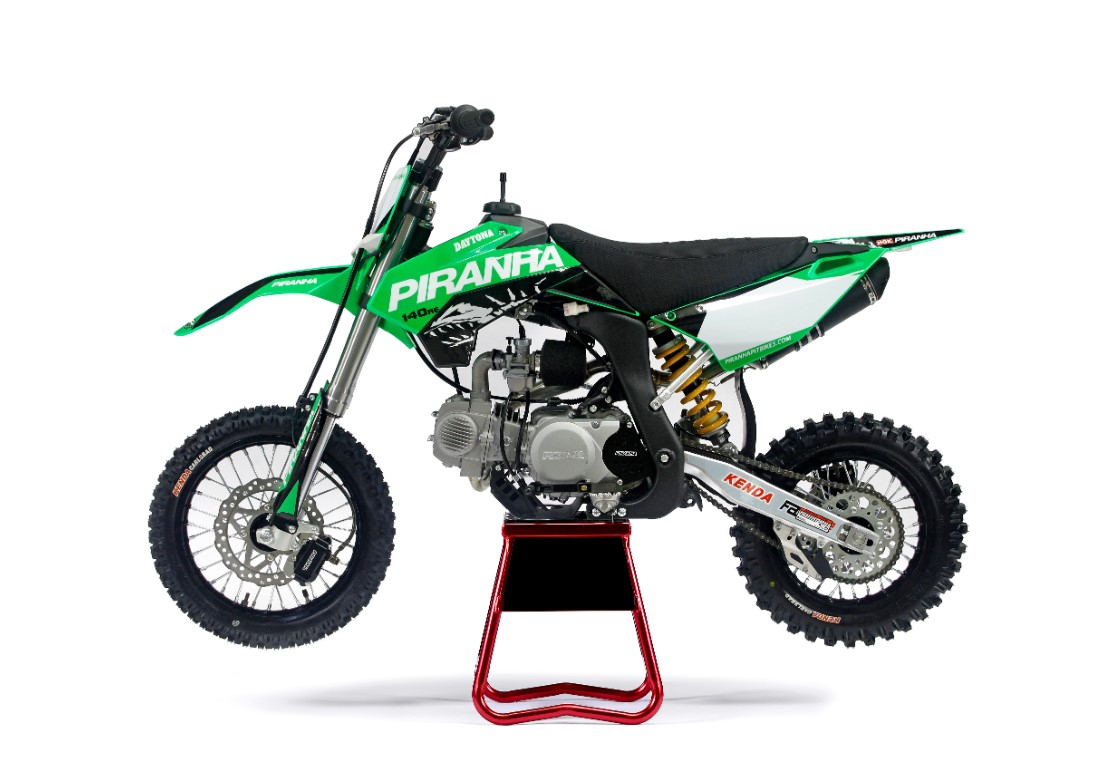

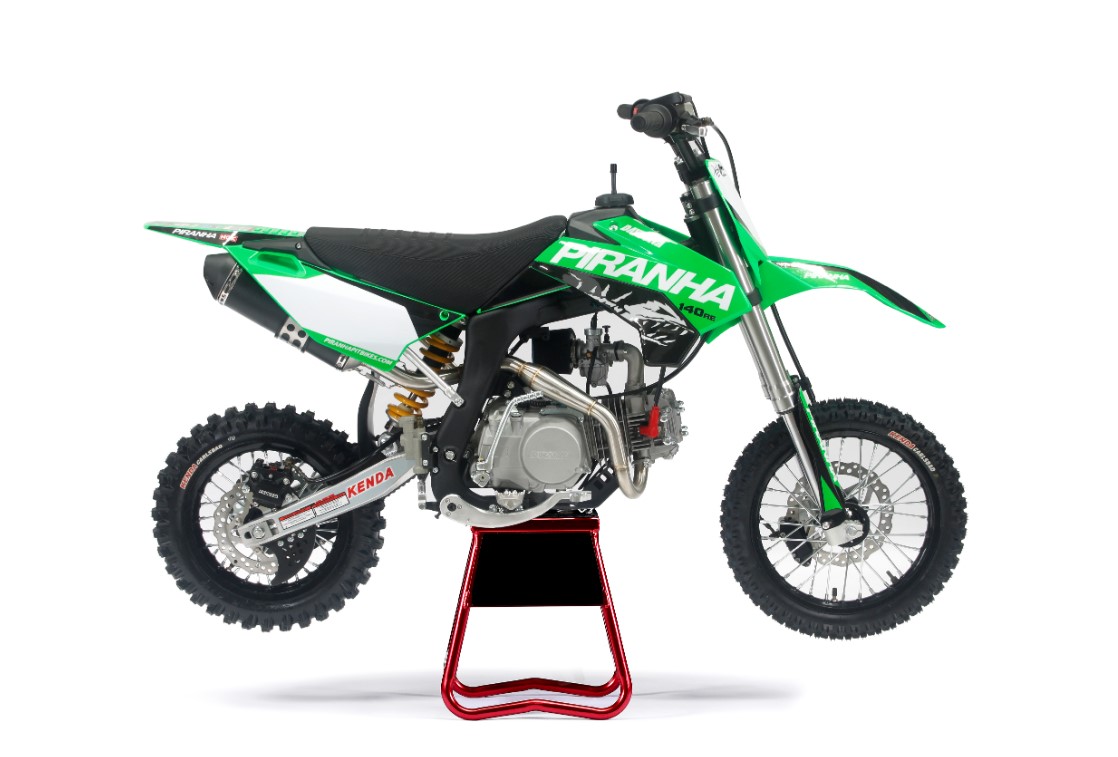

Piranha - P140RE

Vital Information
Price$2,699.00
Part No WHS-6455
Stock Level 4 Left
Choose Options

OFF ROAD USE
COMPETITION ONLY
This Is A Competition Use Motorcycle And Is Intended For Off-Road Use Only

Key Features:

  • Powered by a YX140, the most popular pit bike engine on the market
  • Latest 140 from Piranha
  • Ultimate Top level components and performance
  • Billet aluminum brake systems both front and rear
  • Aluminum subframe
  • Improved throttle assembly
  • Slimmer, lighter gas cap
BASICS
ManufacturerPiranha
ModelP140RE
MSRP
Available ColorsGreen
ENGINE
Displacement140cc
Engine TypeAir Cooled, Single-Cylinder, 2-valve, 4-stroke
Bore/Stroke56mm x 56mm
Final DriveChain
Fuel DeliveryNibbi 19mm
FuelUnleaded Pump Gas (Run Premium When Available)
Recommended Engine Oil10W-40 Petroleum Based (Nonsynthetic)
IGNITION
Kick StartYes
Electric StartNo
CDIYes
Auxiliary OutputYes
TRANSMISSION
Transmission4-Speed Manual
Shift-PatternFour-Up Transmission: N-1-2-3-4
Clutch

Wet Clutch

DRIVE
Chain Pitch420
Front Sprocket15T
Rear Sprocket

45T

CHASSIS
Front Suspension730mm ZL rebound adjustable
Rear Suspension330mm w/ adjustable preload and rebound damping
Swing ArmAluminum
FrameSteel
WHEELS
Rims7116 Aluminum
HubsBillet Aluminum
SpokesSteel
Front Wheel14"
Front Tire60/100-14 Kenda Carlsbad
Front BrakeDisc
Rear Wheel12"
Rear Tire80/100-12 Kenda Carlsbad
Rear BrakeDisc
DIMENSIONS
Raken/a
Trailn/a
Wheelbase47 inches
Seat Height31.50 inches
Curb Weight
Fuel Capacity
Ground Clearance
Overall Length
Overall Width
