Piranha - CRF/XR 50 Full Suspension Kit

Vital Information
Price$1,499.00
Part No WHS-2821
Location000W
Stock Level In Stock
Choose Options

Note: Brake bracket in kit does NOT fit Daytona type engine covers with quick access clutch and oil filter like Piranha 150, ZS 155 and Daytona 190.

DOES fit all 50 style engine covers including Lifan 125 and Piranha 140. Also fits all Honda 50/70 engines as well.

Note: When running on a stock XR/CRF50 frame turning radius may be reduced due to the fact that the forks are bigger than stock and can contact the tank at full turn.
(not the case with extended frames)

Note: Shock may rub very slightly on 2013+ models at full extension. Does not affect drivability.

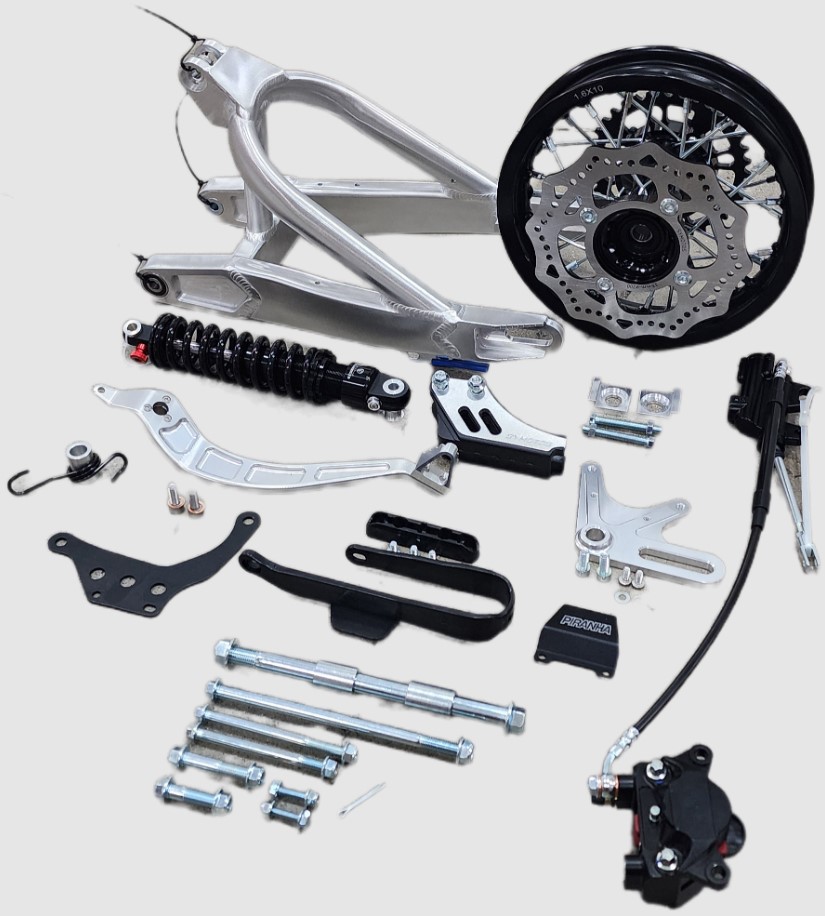

Key Features:

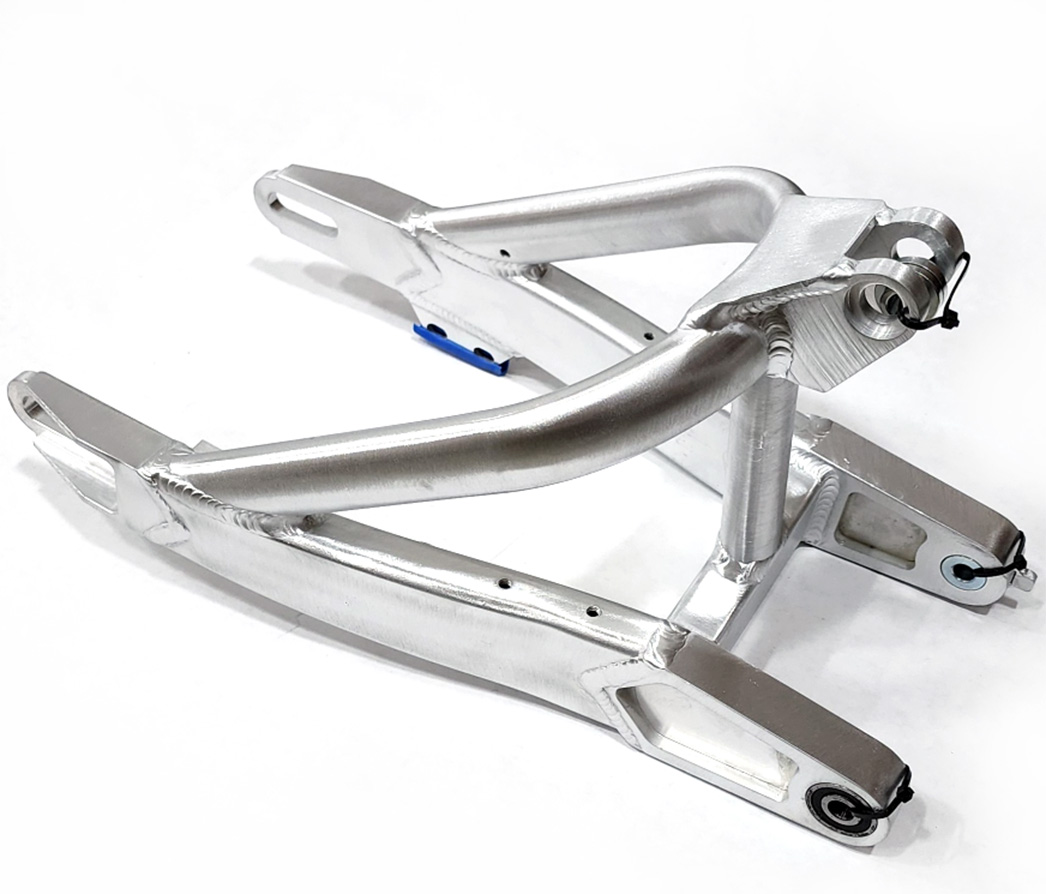

  • +5 all aluminum swingarm

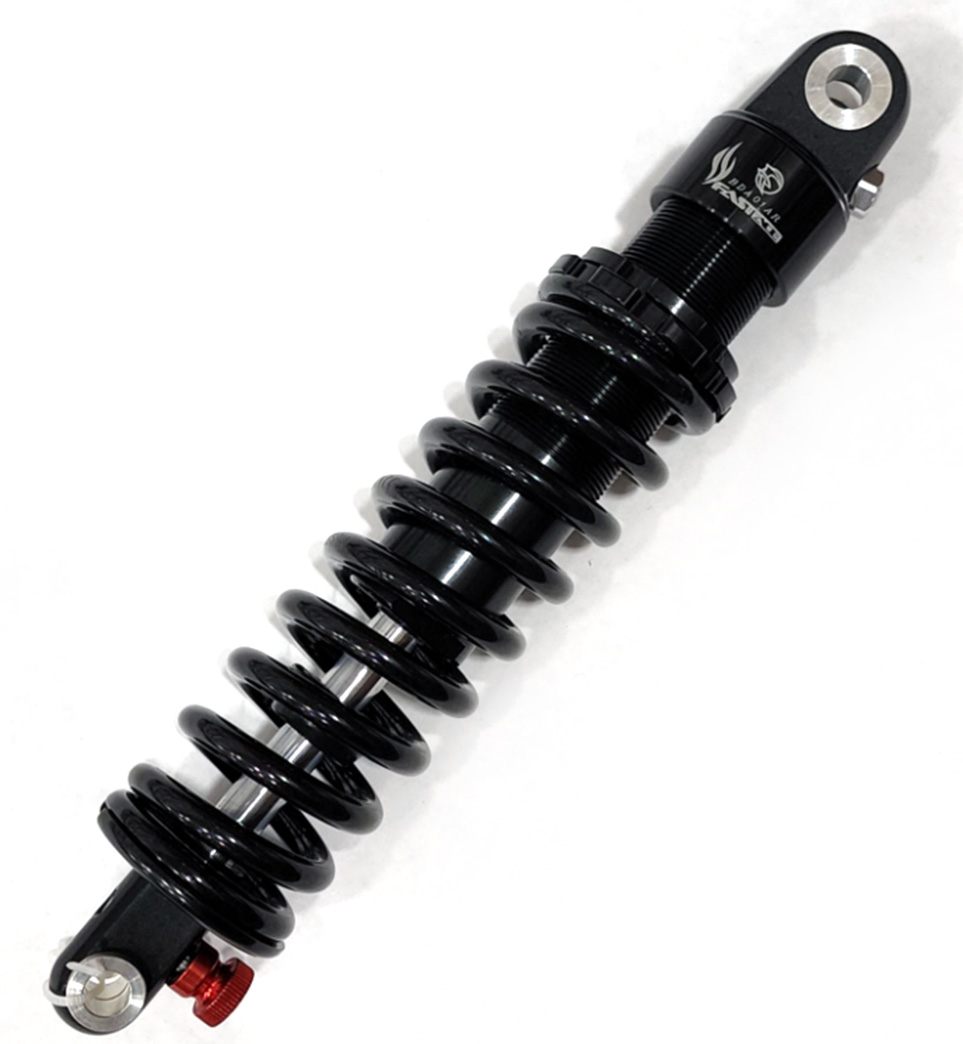

  • Fast Ace rear shock with adjustable rebound
  • 10" rear wheel with wave rotor and 37T 420 sprocket
  • Billet brake pedal

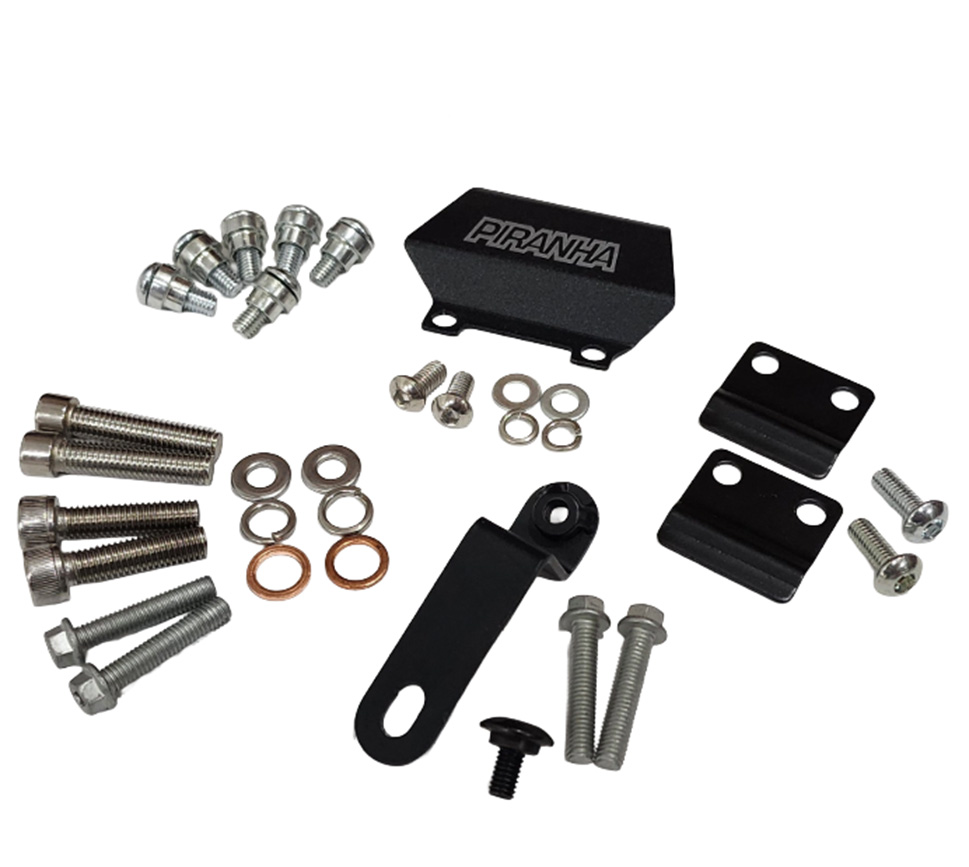

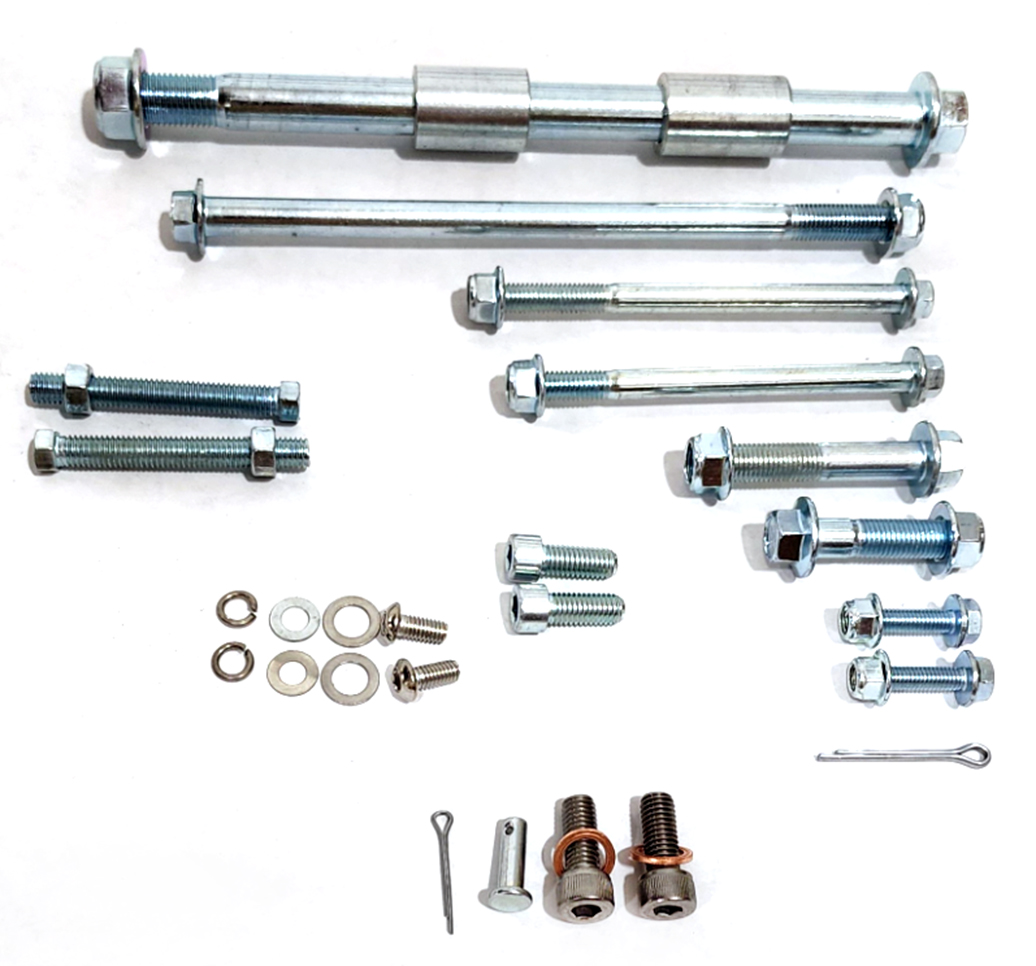

  • Includes all mounting hardware and brackets
  • Utilizes your stock CRF50 front fender and number plate

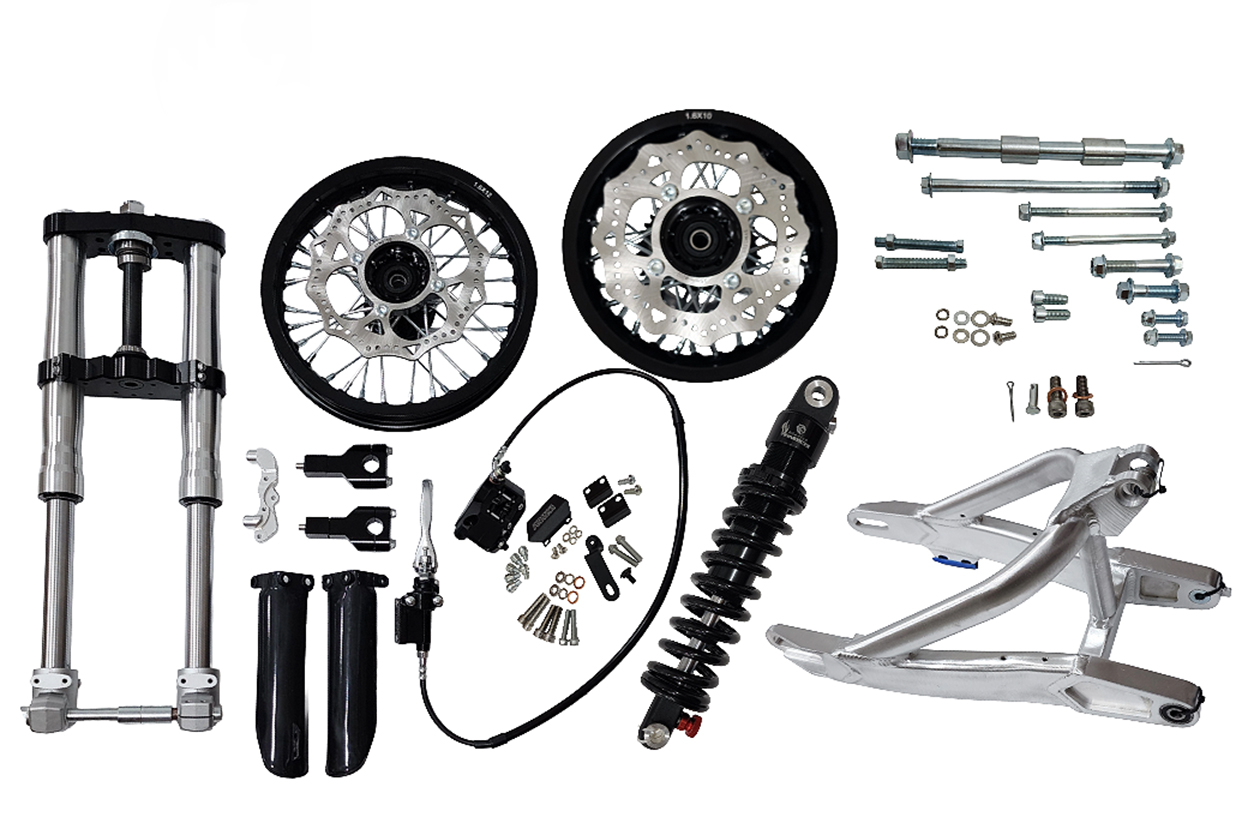

Kit Includes:

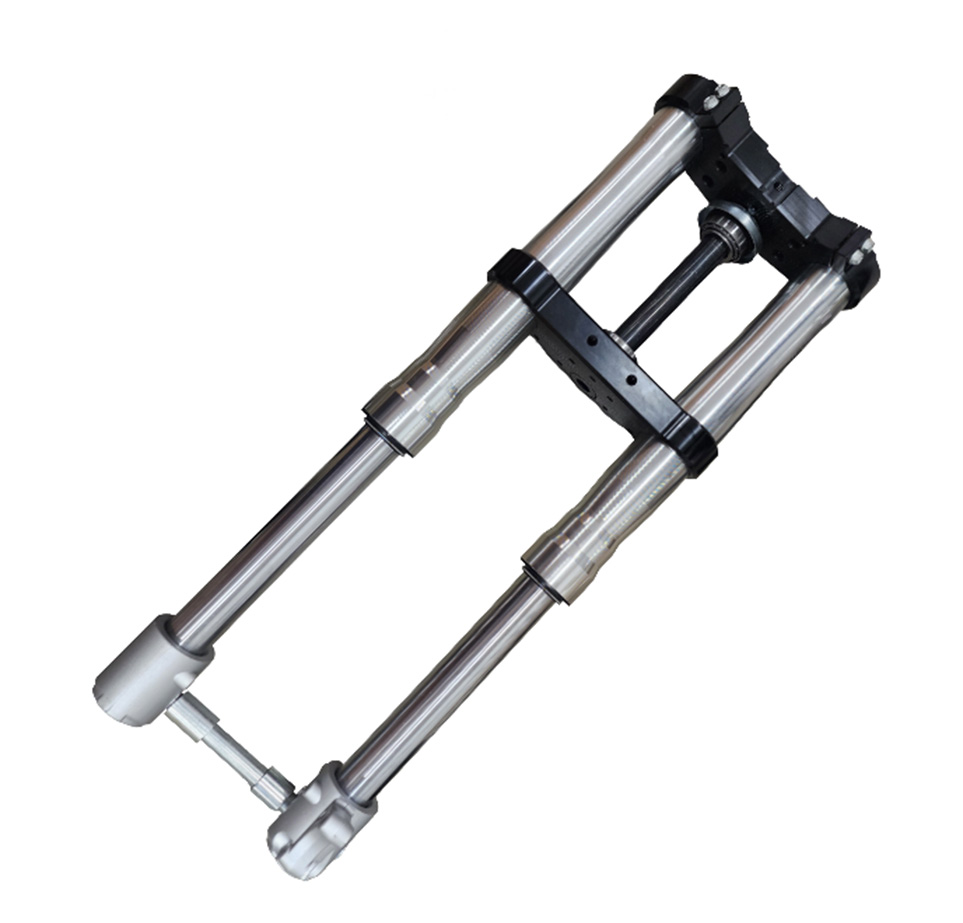

  • 600mm Forks (23.5 in)
  • Triple Clamps / Risers

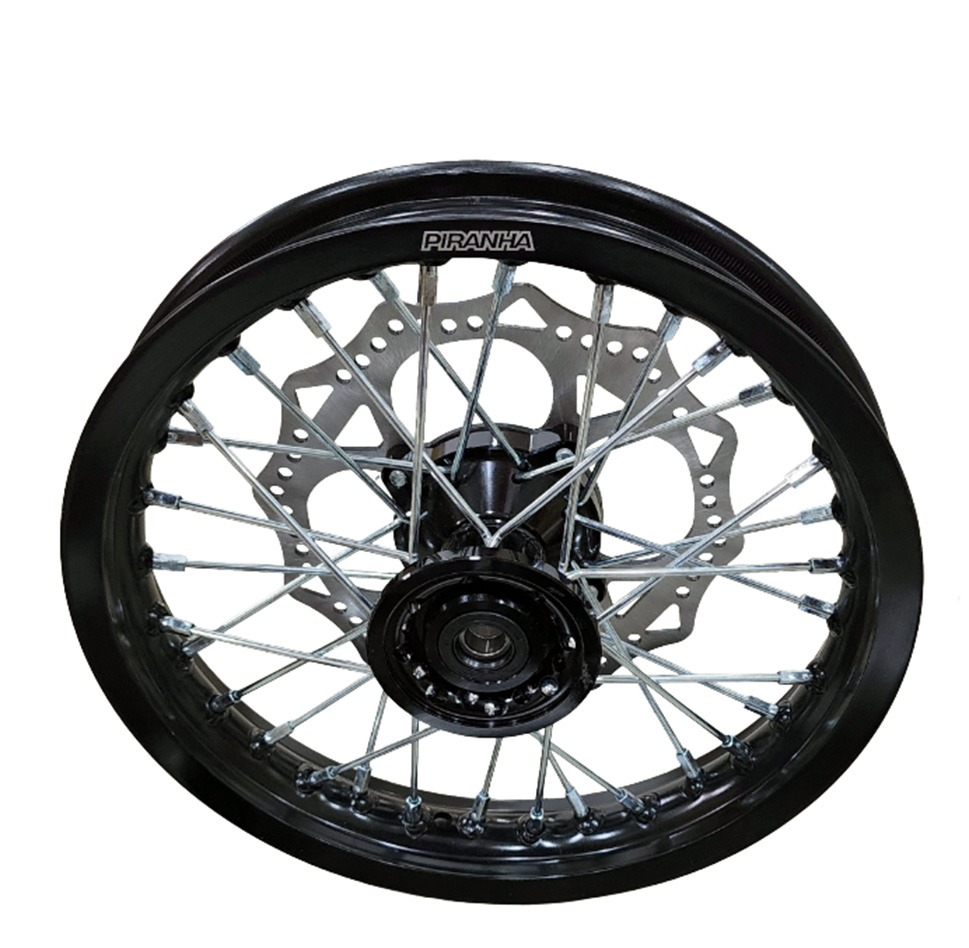

  • 12" Aluminum Hub / Steel Rim 32 spoke Race wheel 1.60 wide
  • Hydraulic Brake System
  • Stainless Steel Brake Lines
  • Brake Lever
  • Headset Bearings for Honda CRF50 Style Head Tubes
  • 205mm Steering tube (CRF50 and most pit bikes)


Fork is setup for a full size adult
Fork Action is Adjustable Via Fork oil weight & Height (NO CLICKERS OR NOBS)

TECH LINK:
/st
ore/tech.php?pID=197/Piranha+Pro+50+Kit


Available Options:

Shipping:




Since 2004, every purchase from TBolt USA includes access to technical support from our staff of experts and our online Pit Bike Technical Info Database!

We have all necessary support parts on hand.

Most orders ship same, or next business day, unless otherwise noted above.


Check these out too

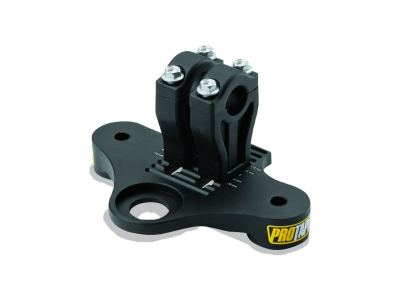

Pro Taper - Bar Clamp for XR50 CRF50
